Description
Easy Balancing Feature
- Rotors Balancing
- Grinding balancing with 2 or 3 counterweights
- Angular split
- Balancing report

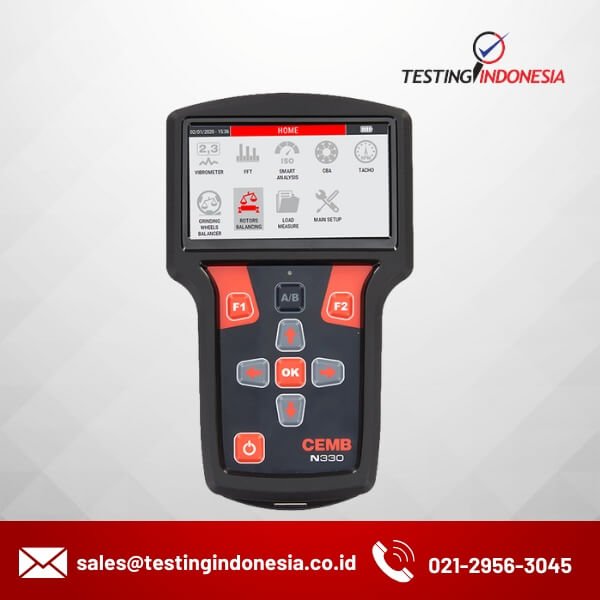

N330 Vibrometer and balancer
Portable Vibrometer and Balancer with 4,3″ graphic display
N330 Vibrometer and balancer with smart functions
The smart solution for any rotating machine
Havy duty instrument, quick&Easy to use
Technical Data
| GENERAL CHARACTERISTICS | Color Display 4,3” TFT LCD (480 x 272 pixel) New EasyClick tactile keyboard with embossed keys |
| MEASUREMENT TYPES | Effective value (RMS) Peak value (Pk) Peak-to-peak value (PP) |
| MEASURING PERFORMANCE | Bandwidth: 1-10 KHz FFT Resolution: Max 3200 lines Tacho: Up to 250000 rpm |
| UNITS OF MEASUREMENT | Acceleration: [g] Velocity: [mm/s] or [inch/s] Displacement: [μm] or [mils] Frequency: [Hz] or [Cpm] |
| INPUT | 1 measuring channels IEPE sensor, accelerometer and velocimeter (with a specify cable pluggable on a BNC for read any dinamic signal max. 5V-PP) 2 channels specify for balancing (2nd channel as optional). 1 photocell channel (velocity and angle reference) 1 MicroUSB 2.0 port for data transfer 1 jack plug for battery charger |
| AMBIENT | Temperature: from -20° to +70° C Air humidity: from 0 to 95% without condensate Protection: IP54 |
| POWER SUPPLY | Long Life Battery: > 8 hours based on typical use Charging time: 2,5 hours for 80% recharge 4 hours for 100% recharge Rechargeable 3100 mAh Lithium battery Power supply-battery charger for 100-240 V, 50/60 Hz (24 V, 1.5 A) |
| CARRYING CASE DIMENSIONS AND WEIGHT | Approx. 440(L) x 360 (H) x 115(D) 1800 g |
