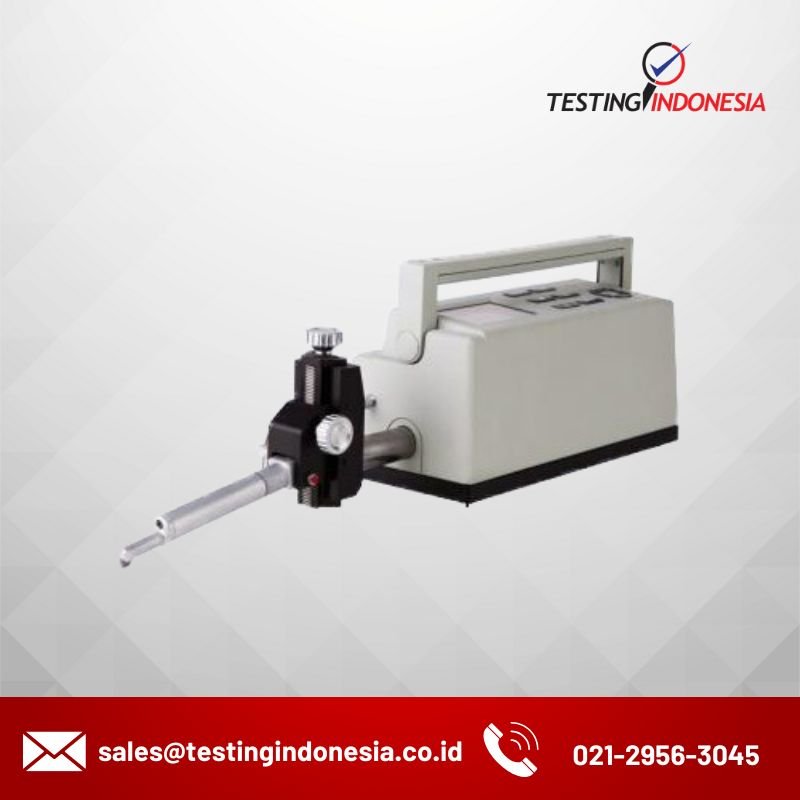

Surface Roughness Tester TIME®3230

Surface Roughness Tester TIME®3230

TIME® 323X series is advanced high-end surface roughness measuring instruments with wide testing range (±400µm) and high accuracy (tolerance±5%, repeatability 3%).

Category: Tags: ,

Description

TIME® 323X series is advanced high-end surface roughness measuring instruments with wide testing range (±400µm) and high accuracy (tolerance±5%, repeatability 3%). Meanwhile, TIME® 323X surface roughness tester features with skidless/skid measurement, which means it can reach smaller and harder to reach parts than other conventional surface measuring tools. Up to 55 paramenters for roughness, waviness and primary profile are supported. TIME®3230 is the first member of TIME® 323X series and it has all those features mention above.

Spesification

Assessed profile

R (Roughness), W (Waveness), P (Primary profile)

Measuring range

±400µm, ±25µm

Filtering

RC,PCRC,Gauss,D-P,ISO 13565

Parameters

R: Ra,Rp,Rv,Rt,Rz,Rq,Rsk,Rku,Rc,RS,RSm, Rlo,RHSC,Rpc,Rmr(c),RzJIS,R3y,R3z

W: Wa,Wp,Wv,Wt,Wz,Wq,Wsk,Wku,Wc,WS, WSm, Wlo,WHSC,Wpc,Wmr(c),WzJIS P:Pa,Pp,Pv,Pt,Pz,Pq,Psk,Pku,Pc,PS,PSm,Plo,PHSC,Ppc,Pmr(c),PzJIS Rk: Rk,Rpk,Rvk,Mr1,Mr2

Cut-off length

0.08mm,0.25mm,0.8mm,2.5mm,8mm

Max. tracing length

40mm

Analysis graphs

ADC, BAC

Evaluation length

1L-5L

Resolution

0.001μm/50μm；0.016μm/800μm

Tolerance

±5%

Display

LCD

Memory

10 groups of primary data

Data output

RS232,USB

Power supply

Li battery / AC adapter

Dimensions (mm)

409×96×98

Weight (g)

2300
