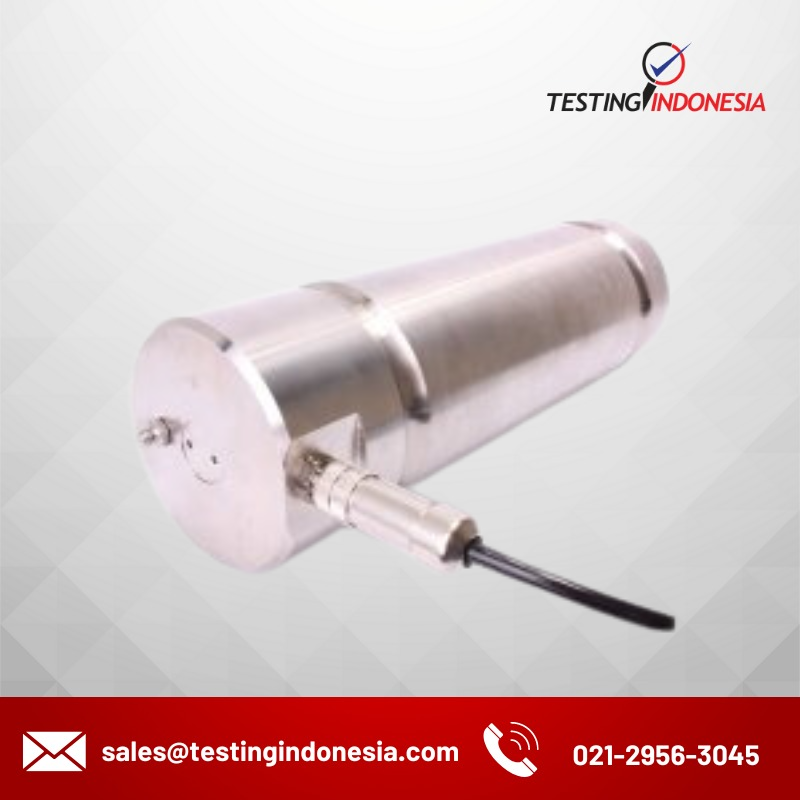

Pin Load Cell

Description

Applied Measurements DBEP shear pin load cell design is suitable for the measurement of tensile and compressive forces across a huge range of process monitoring, offshore, civil engineering, industrial, marine and crane/lifting applications.

All of our pin load cells are manufactured from stainless steel and sealed to IP67 as standard to ensure that they are able to stand up to the tough conditions that are commonplace in a typical industrial, marine or offshore application.  We also manufacture custom versions in aluminium alloy, super-duplex stainless steel and titanium where application conditions demand.

We can readily modify any shear pin load cell to make it fully submersible in sea water to depths of 6500 metres or more, and we can also integrate either analogue or digital signal conditioning to provide an output compatible with any existing monitoring or control system.

Product Dimensions

DBEP Shear Pin Load Cell Outline Drawing
Shear Pin Load Cell Capacity (te)
D
L1
L2
L3
Weight (kg)
2.5
25
100
70
45
0.4
3.5
30
105
75
50
0.6
6.5
40
125
95
63
1.3
15
50
150
114
75
2.5
25
63
195
152
89
4.9
50
75
225
178
102
8.0

All dimensions are in mm

Wiring Details

WireDesignation
Red+ve excitation
Blue-ve excitation
Green+ve signal
Yellow-ve signal
ScreenTo ground – not connected to load cell body

Features

  • Capacities: 0-2.5te to 0-50te
  • Output: 1 – 1.5mV/V nominal
  • Environmental Protection: IP67
  • Custom Design Versions
  • Special Ranges: 0-200kg up to 0-1500te

Spesification

Rated Capacity (RC)tonnes0-0.5, 0-1, 0-2.5, 0-3.5, 0-6.5, 0-15, 0-25, 0-50, 0-100, 0-250, 0-500, 0-750, 0-1000, 0-1500
Operating ModesTension/Compression / Tension & Compression
Sensitivity (RO)mV/V1 – 1.5 nominal (dependent on range)
Zero Balance/Offset±%/Rated Output<1.0
Symmetry (tension vs. compression)±%/Rated Output<1 typical
Non-Linearity±%/Rated Capacity<0.5 to 2
Hysteresis±%/Rated Output<0.5 to 2 typical
Repeatability±%/Rated Capacity1 typical *
Temperature Effect on Zero±%/Rated Output/ ˚C<0.010
Temperature Effect on Sensitivity±%/Applied Load/ ˚C<0.010
Input ResistanceOhms375 nominal
Output ResistanceOhms350 nominal
Insulation ResistanceMegohms>5000 @ 50Vdc
Excitation VoltageVolts AC or DC10 recommended (2-15 acceptable)
Operating Temperature Range˚C-20 to +70
Compensated Temperature Range˚C-10 to +50
Storage Temperature Range˚C-20 to +70
Safe Overload% of Rated Capacity150
Ultimate Overload% of Rated Capacity300
IP Rating (Environmental Protection)IP67 (IP68 submersible options)
Weight (excluding cable)See dimension table
Cable Length (as standard)metres3
Fatigue Life108 cycles typical (109 cycles on fatigue-rated version)
Cable Type4-core screened, PUR sheath, Ø5
Construction MaterialStainless Steel
Resolution1 part in 250,000 (with appropriate instrumentation)
*Note: Due to varying load pin geometry, which is governed by the location and application, non-linearity and non-repeatability performance may vary.
