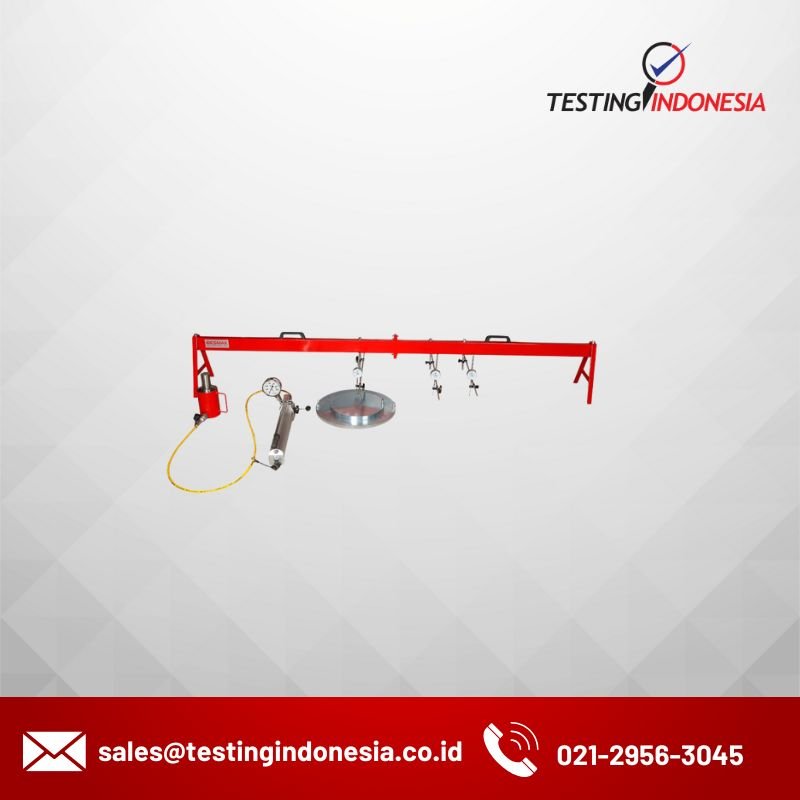

Plate Loading Test Set

Standards:
✅ASTM D1194 ✅1195 ✅1196 ✅BS 1377;9

Description

This test is performed for the determination of the bearing capacity of a soil in-situ on road constructions, foundations, road subgrades, airport and highway pavements. 100 kN, 300 kN capacities are available.

Including:

1 piece of fixing bar

1 piece of 100 kN or 300 kN capacity lifting jack

1 piece of hand pump

1 piece of pressure gauge (max. 280 bar)

3 pieces of 50 mm x0.01 mm deformation dial gauges and holders

4 pieces of 150, 253, 305, 455 mm diameter plates

Product CodeProduct Name
BSO-213/1Plate Loading Test Set, 10 kN Capacity
BSO-213/2Plate Loading Test Set, 50 kN Capacity
BSO-213/3Plate Loading Test Set, 100 kN Capacity
BSO-213/4Plate Loading Test Set, 400 kN Capacity
BSO-213/5Plate Bearing Equipment
BSO-213/6Plate Loading Test Set, 500 kN Capacity



Spesification

Weight : 95 kg

Dimensions : 460 x 1240 x 400 mm

Catalogue

59 - Proving Ring Penetrometer_Plate Loading Test Set
