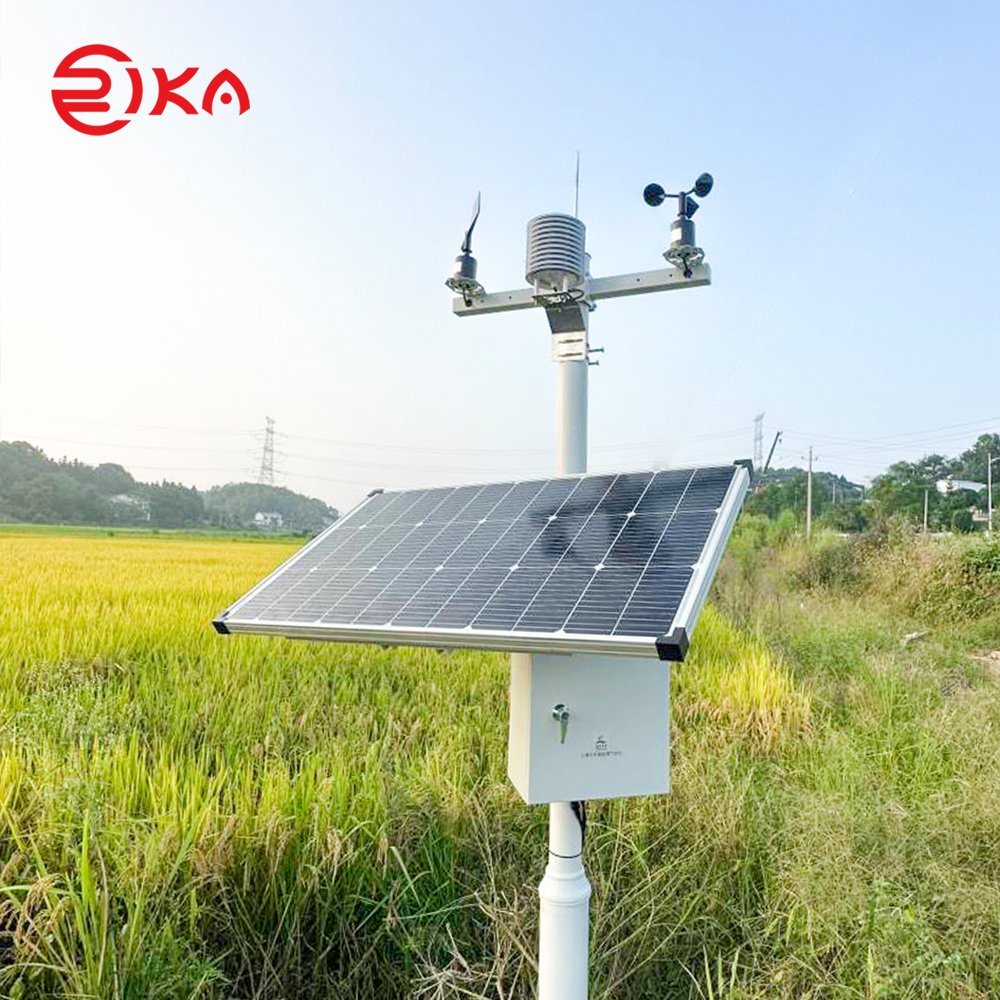

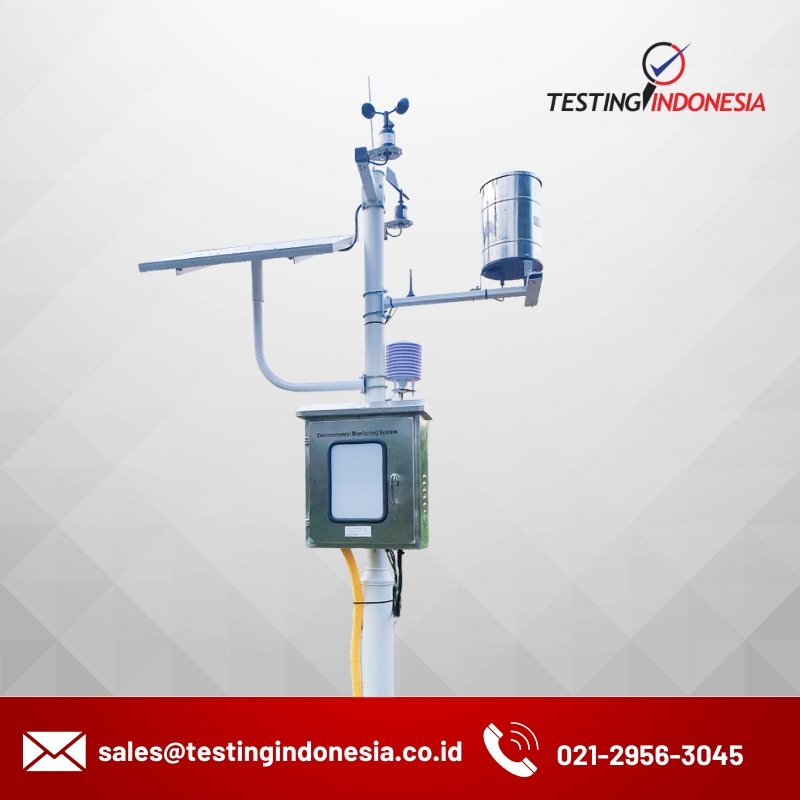

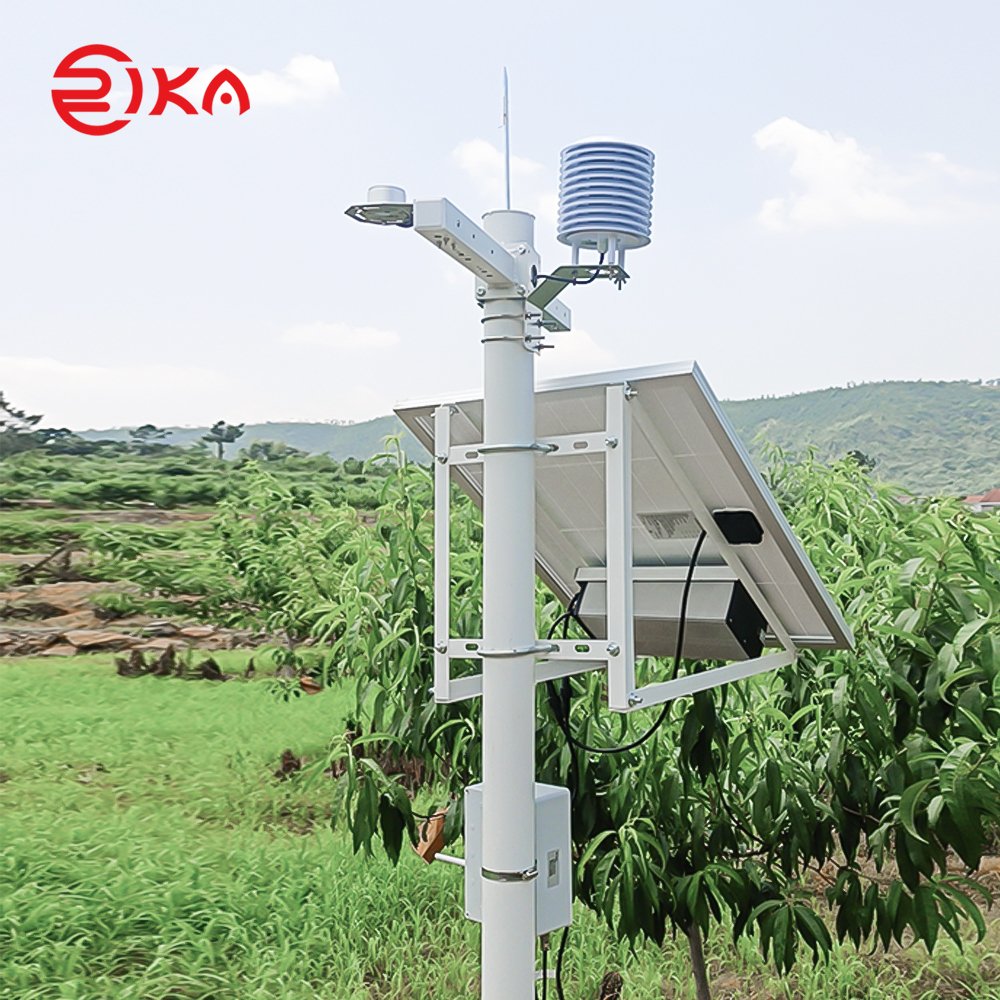

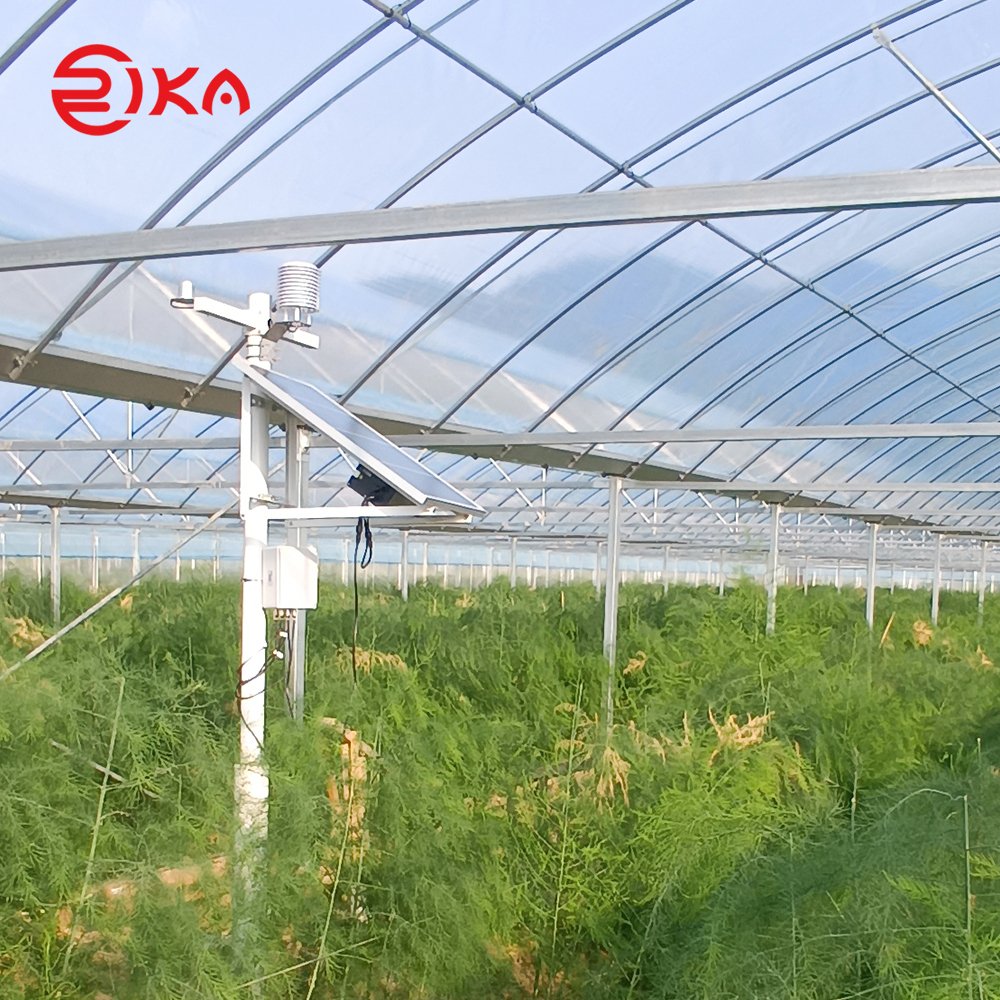

Agricultural Automatic Meteorological Station RK900-01

Description

RK900-01 Agricultural Automatic Meteorological Station dirancang untuk lahan pertanian, rumah kaca, kebun buah, dan berbagai skenario pertanian lainnya, bertujuan untuk mengumpulkan, menyimpan, dan mengirimkan data meteorologi secara waktu nyata. Stasiun ini menyediakan dukungan pemantauan lingkungan yang akurat untuk produksi pertanian, membantu peringatan dini bencana, pengambilan keputusan irigasi, dan pengelolaan tanaman, serta mendukung manajemen pertanian presisi. Sistem ini memiliki karakteristik presisi tinggi, konsumsi daya rendah, dan ekspansi modular, sehingga memenuhi kebutuhan operasi jangka panjang dan stabil di lapangan. Produk ini telah lulus pengujian dan identifikasi dari China Agricultural Machinery Institute.

System Unit

Item Details Remarks
Data logger Meteorological data acquisition, computational analysis, display, storage and communication (4G/Ethernet/WIFI), 7"LCD, Support downloading historical data locally Either-or
Communication gateway Rs485 gateway, 4g gateway, wifi gateway, and ethernet gateway optional
Sensors and cables Wind speed sensor, wind direction sensor, atmospheric temperature, atmospheric humidity, panel temperature, total solar radiation, scattered radiation, direct radiation, etc Depends on user requirements
Multilayer radiation shield (shutter box) For install atmospheric temperature and humidity sensor
Protective box For the installation of data loggers, solar charging controller, battery / power supply, etc
Solar energy power supply system Including solar panels and bracket, solar charging controller, battery Optional
Vertical rod and mounting parts

Height: 2.5m, including lightning protection device, other height can be customized

Main Measurement Parameters

Item Range Resolution Accuracy Remarks
Wind speed 0-45m/s 0.1m/s ±(0.3±0.03v)m/s The parameters can be adjusted according to the user requirements
Wind direction 0-360º ±3°
Air temperature -40℃-+60℃ 0.1℃ ±0.5℃
Air humidity 0-100%RH 0.1%RH ±3%
Atmospheric pressure 300-1100hpa 0.1hpa ±0.5hpa
Solar radiation 0-2000W/m2 1W/m2 ±3%
Illuminance 0-200klux 1lux ±5%
Rainfall ≤4mm/min 0.2mm ±4%
Soil temperature -30℃-+70℃ 0.1℃ ±0.5℃
Soil humidity 0-100%V/V 1% ±3%
Soil conductivity 0-10ms/cm 0.001ms/cm ±3%
CO2 concentration 0-5000ppm 1ppm ±3%
Soil PH 0-14ph 0.1ph ±0.1ph

Data Logger and Gateway Comparison

Item

Data logger

Gateway

4G

Ethernet

WIFI

RS485

RK600-07C

RK600-07C

RK600-07C

RK600-07C

RK600-17

RK600-17

RK600-17

RK600-17

Local display

Support

Support

Support

Support

/

/

/

/

Ethernet

Support

Support

Support

Support

/

Support

/

/

4G

/

Support

/

Support

Support

/

/

/

WIFI

/

/

Support

Support

/

/

Support

/

RS485

Support

Support

Support

Support

/

/

/

Support

Remote upgrade

Support

Support

Support

Support

/

/

/

/

Average power consumption

3w

3w

3w

3w

1w

1w

1w

0.5w

Product Details
