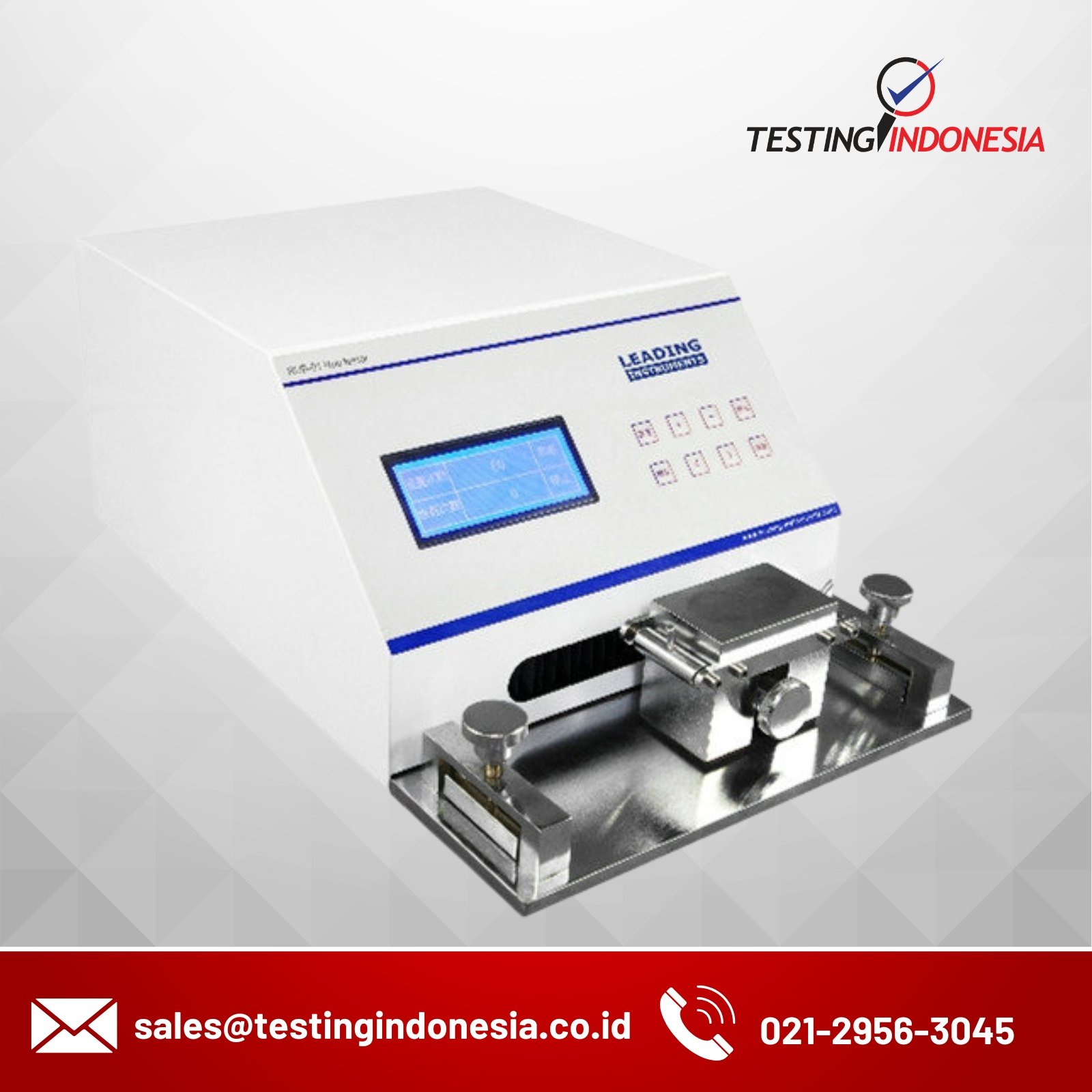

RUB-02 Rub Tester

Category: Tags: , Brand:

Description

RUB-02Rub Tester isapplicable in abrasion resistance test of printed materials, PS boards and

coating layers of other products. It can effectively analyze the abrasion resistance, ink layer

fastness and the coating rigidness of other products.

Characteristic

      * Minico-mputer control, LCD display;

      * Manu interface, PVC operation menu;

      * Applicable in dry or wet rubbing or scuffing, wet bleed, transfer, wet smear and functional tests.

      * Arc moving model;

      * Double testing station;

      * Four testing speed;

      * Memory when power failure;

      * Buzzer alarm.

Spesification

  • Rubbing Pressure: 8.9N (2lb), 17.8N (4lb)
  • Rubbing Speed: 21, 42, 85,106cpm
  • Rubbing Motion: to-and-fro arc motion
  • ubbing Times: 0~999,999
  • No. of Specimens: 1~2 pieces
  • Power: AC 220V  50Hz
  • Net weight:40 kg

Standards

ASTM D5264, TAPPI T830

Configuration

Standard:Mainframe, test block 8.9N (2lb), test block 17.8N (4lb), rubbing pad Optional:Non-standard test block
