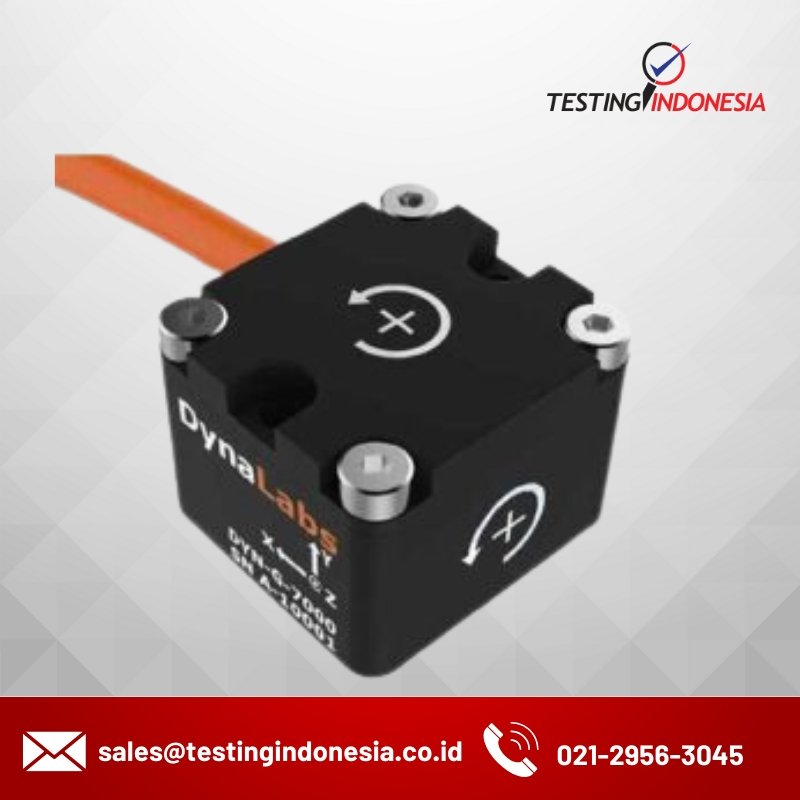

Triaxial Gyroscopes |
| DYN-G-7075 | DYN-G-7150 | DYN-G-7300 | DYN-G-7900 |
| Full-scale Angular Velocity | (°/s) | ± 75 | ± 150 | ± 300 | ± 900 |
| Frequency Range | (Hz) | 0-150 | 0-150 | 0-150 | 0-150 |
| Non-liearity (full scale) | (%) | 0.06 | 0.06 | 0.06 | 0.06 |
| Noise (in band) | (°/s/√Hz) | 0.018 | 0.018 | 0.018 | 0.018 |
| Scale Factor (nominal) | (V/°/s) | 0.012 | 0.006 | 0.003 | 0.001 |
| Scale Factor Var. Over Temp. | (%) | 0.5 | 0.5 | 0.5 | 0.5 |
| Bias Variation With Temp. | (°/s) | ± 1 | ± 2 | ± 3 | ± 4 |
| Shock Survivability | (g) | 10,000 | 10,000 | 10,000 | 10,000 |
| Protection Level | | IP 65 |
| Operating Voltage | (VDC) | 5V - 20V |
| Operating Temperature | (°C) | -40 to +100 |
