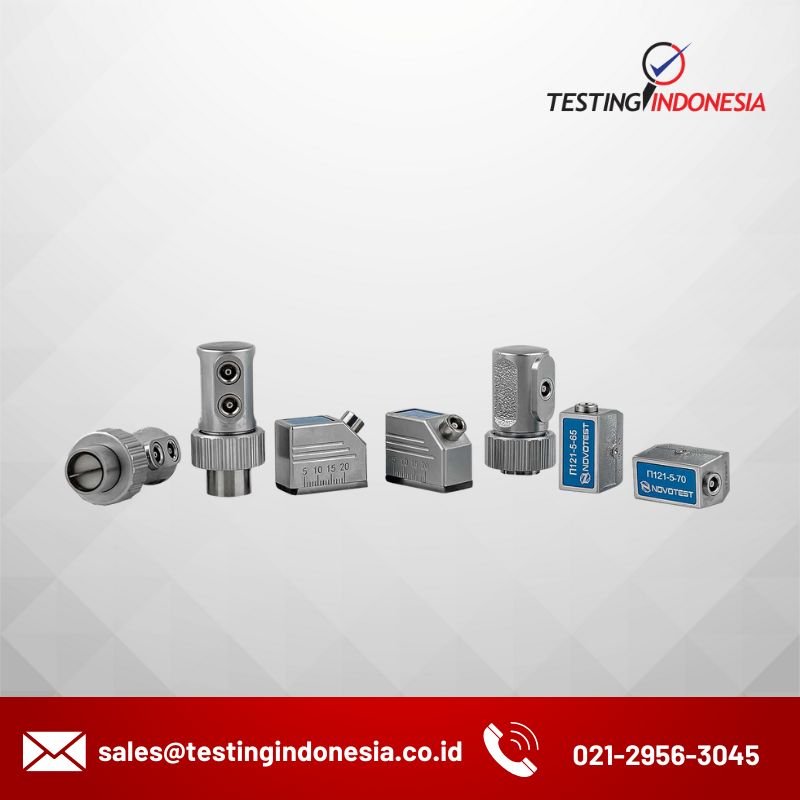

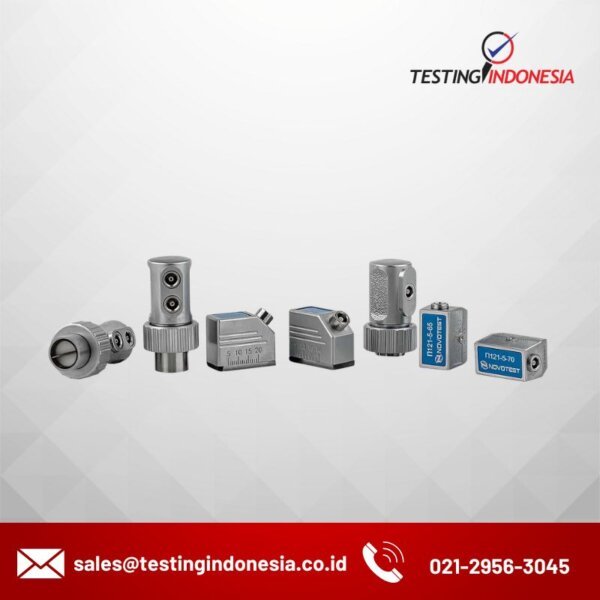

UT-probes (transducers)

Description

We produce probes (transducers) of  general type, and special-purpose, standard and custom: straight beam, angle beam, dual element, ground in and others.

All the transducers are designed for using with ultrasonic flaw detectors.

Connector type: Lemo 00 (other connectors – by request).

Contact dual-element transducers are designed for testing welded and brazed joints of the elements of metal structures, pipelines for detection the different kinds of defects (cracks, nonmetallic particles, pores, lack of fusion, scratches, surface cracks, etc.).

Straight beam contact transducers are designed to detect internal defects (pores, cracks, delamination and others), also they used for searching local thinning walls in metal structures and walls of the product, including the low-alloyed and austenitic steels products.

Transducer grounds are designed to detect internal defects of pipes and for searching local thinning walls of the pipes, including the low-alloyed and austenitic steels products.

Features

  • different kinds transducers for all tasks
  • competetive price

Spesification

ModelOperating frequency, MHzAngledeg.Comments
Contact angle beam transducers
P121-2,5-402, 540Manufacturing under the order with any other specified parameters
P121-2,5-452, 545
P121-2,5-502, 550
P121-2,5-602, 560
P121-2,5-652, 565
P121-2,5-702, 570
P121-2,5-752, 575
P121-2,5-902, 590
P121-5-40540
P121-5-45545
P121-5-50550
P121-5-60560
P121-5-65565
P121-5-70570
P121-5-75575
P121-5-90590
Contact straight beam transducers
P111-2,5-К122,50Manufacturing under the order with any other specified parameters
P111-5-К650
P111-5-К1250
P111-10-К10100
P111-2,5-К202,50
P111-1,25-К201,250
Groundin transducers
P121-2,5-40-ØХХХ2,540Manufacturing diameter of curvature under the order
P121-2,5-45-ØХХХ2,545
P121-2,5-50-ØХХХ2,550
P121-2,5-60-ØХХХ2,560
P121-2,5-65-ØХХХ2,565
P121-2,5-70-ØХХХ2,570
P121-2,5-75-ØХХХ2,575
P121-5-40-ØХХХ540
P121-5-45-ØХХХ545
P121-5-50-ØХХХ550
P121-5-60-ØХХХ560
P121-5-65-ØХХХ565
P121-5-70-ØХХХ570
P121-5-75-ØХХХ575
Dual element transducers
P112-2,5-12/22,50Manufacturing under the order with any other specified parameters
P112-2,5-20/22,50
P112-5-12-250
P112-5-3х450

Available Option

We can produce transducers for users requirements.

For any requirements (specifications, type of connector) of probe, please contact us before ordering.

Also, we produce Transmitter-Receiver-Longitudinal (TRL) angle probes or Ground-in dual element transducers.

Standard Packages

  • Transducer (probe)
  • Package
