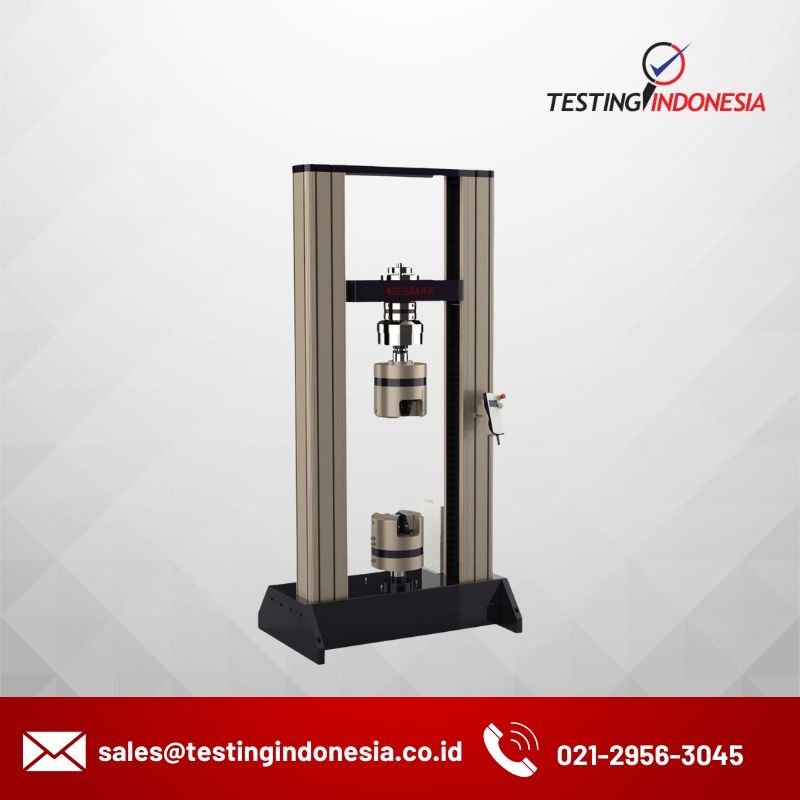

Servo Electromechanical Universal Testing Machine (Double Column)

Servo Electromechanical Universal Testing Machine (Double Column)

Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , ,

Description

BESMAK® BMT-E series Universal Testing Machine designed with a rigid frame in Column type construction. Can perform tensile, compression, bend, creep, and cyclic tests on all raw materials and finished goods. These testing instruments are engineered for precision, built for durability, and offer flexibility for changing requirements. They are designed with features that increase testing efficiency and improve the testing experience for the operator.

  • Convenient working height and ergonomic controls improve operator productivity and comfort
  • Remote control unit with Live Display, Soft keys and Specimen Protect for enhanced usability and productivity
  • High precision load measurement with sensitive load cell class 0.5
  • Load Cells can be replaced according to different load ranges to make much more accurate and sensitive measurements
  • Load measurement resolution is 24 bit

Hydraulic/Pneumatic/Mechanical Grips and several special fixtures can be attached easily to machine

Product CodeProduct Name
BMT-0.1EServo-Electromechanic Universal Testing Machine, 0,1 kN Capacity
BMT-0.5EServo-Electromechanic Universal Testing Machine, 0,5 kN Capacity
BMT-1EServo-Electromechanic Universal Testing Machine, 1 kN Capacity
BMT-2EServo-Electromechanic Universal Testing Machine, 2 kN Capacity
BMT-2.5EServo-Electromechanic Universal Testing Machine, 2,5 kN Capacity
BMT-3EServo-Electromechanic Universal Testing Machine, 3 kN Capacity
BMT-5EServo-Electromechanic Universal Testing Machine, 5 kN Capacity
BMT-10EServo-Electromechanic Universal Testing Machine, 10 kN Capacity
BMT-15EServo-Electromechanic Universal Testing Machine, 15 kN Capacity
BMT-20EServo-Electromechanic Universal Testing Machine, 20 kN Capacity
BMT-25EServo-Electromechanic Universal Testing Machine, 25 kN Capacity
BMT-30EServo-Electromechanic Universal Testing Machine, 30 kN Capacity
BMT-50EServo-Electromechanic Universal Testing Machine, 50 kN Capacity
BMT-60EServo-Electromechanic Universal Testing Machine, 60 kN Capacity
BMT-100EServo-Electromechanic Universal Testing Machine, 100 kN Capacity
BMT-150EServo-Electromechanic Universal Testing Machine, 100 kN Capacity
BMT-200EServo-Electromechanic Universal Testing Machine, 200 kN Capacity
BMT-250EServo-Electromechanic Universal Testing Machine, 250 kN Capacity
BMT-300EServo-Electromechanic Universal Testing Machine, 300 kN Capacity
BMT-400EServo-Electromechanic Universal Testing Machine, 400 kN Capacity
BMT-500EServo-Electromechanic Universal Testing Machine, 500 kN Capacity
BMT-600EServo-Electromechanic Universal Testing Machine, 600 kN Capacity
BMT-800EServo-Electromechanic Universal Testing Machine, 800 kN Capacity
BMT-1000EServo-Electromechanic Universal Testing Machine, 1000 kN Capacity
BMT-1200EServo-Electromechanic Universal Testing Machine, 1200 kN Capacity

Key Features

  • BESMAK BMT-E series UTM Meets or exceeds requirements of all national and international standards, namely ISO, ASTM, BS, DIN, EN, and AFNOR
  • Convenient working height and ergonomic controls improve operator productivity and comfort
  • Thousands of accessories to meet test requirements in almost any application or industry: biomedical, automotive, electronics, plastics, metals, composites, elastomers, aerospace, textiles, and many more • Remote control unit with Live Display, Soft keys and Specimen Protect for enhanced usability and productivity
  • High precision load measurement with sensitive load cell class 0.5
  • Load Cells can be replaced according to different load ranges to make much more accurate and sensitive measurements
  • Load measurement resolution is 24 bit
  • Hydraulic/Pneumatic/Mechanical Grips
  • Clip on Extensometer, Semi-Automatic Long travel Extensometer, Fully Automatic Extensometer, Video type Extensometer
  • Deflectometers, Compresometers
  • Special Testing Fixtures
  • Fastener Fixtures
  • Custom Made Fixtures for special applications

Spesification

BMT-E Double Column Series Technical Features

Load CapacityUp to 1000 kN
Frame TypeRigid frame in Double Column construction
Electronic UnitNew generation SEMATRON Electronic Control Unit with 1 kHz (1000 data/sec) data acquisition and control system
ControlEDC Controller Besmak Universal Testing Software (Load and Deformation/ Displacement Control)
Accuracy+ %0,5
Load MeasuringClass 0.5
Resolution24 bit
Displacement Resolution0.0001 mm
Testing Speed range (Min- Max) at Full Force0.0001 750 mm/min (Subject to cahnge according to capacity and application).
Vertical Test Area1450 mm* (Without Accessories)
Horizontal Test AreaAccording to Accessories*
SoftwareBesmak Universal Testing Software
Power Requirement220 or 380 Volt, 50/60 Hz

Properties

BESMAK  Servo Electromechanical, Universal Testing Machine, can work tensile, compression, bending etc. tests and can work on both displacement/deformation mode and load control mode (with and without extensometer - optional).Two column rigid construction.

Load measurement and control, with a load cell of class 0.5, 1 kHz data accusation Close-loop electronic controller “EDC”, Crosshead moving speed (mm/min): 0.001-500.

The electronic control unit of system is with 1000 samples per second data acquisition speed. Accurate synchronization between frame and sensors will be done/controlled by advanced PID or close loop configuration. Electronic control unit has total 5 channels (2 internal, 2 external and 1 RS232/485). Due to these channels electronic control unit can control 7 no. sensors at same time.

Electronic control unit is feasible to attach and control video extensometer, laser extensometer, LVDT, automatic extensometer, strain gauge, load cell, SSI and TTL type sensors. Special Eeprom sensor plugs can store calibration and sensor data inside it. Due to this feature control unit can read sensor and calibration data even if user change it with new unit.

User can read and control each attached sensor with control unit, for example; 2nd load cell, LVDTs and extensometers. can perform load and displacement controlled test, position measurement and control with position encoder of 1 micron resolution, handheld unit to move machine up and down without use of computer to fix sample into the machine easily accurately and safely, Load channel with a resolution of ±180,000 steps, adjustable displacement control in between 0.001 - 500 mm/min, testing software, 32 user defined result parameters (connected to load and position), result can be transferred to Excel format(Raw Values). Power supply 220Volt, 50/60 Hz.
