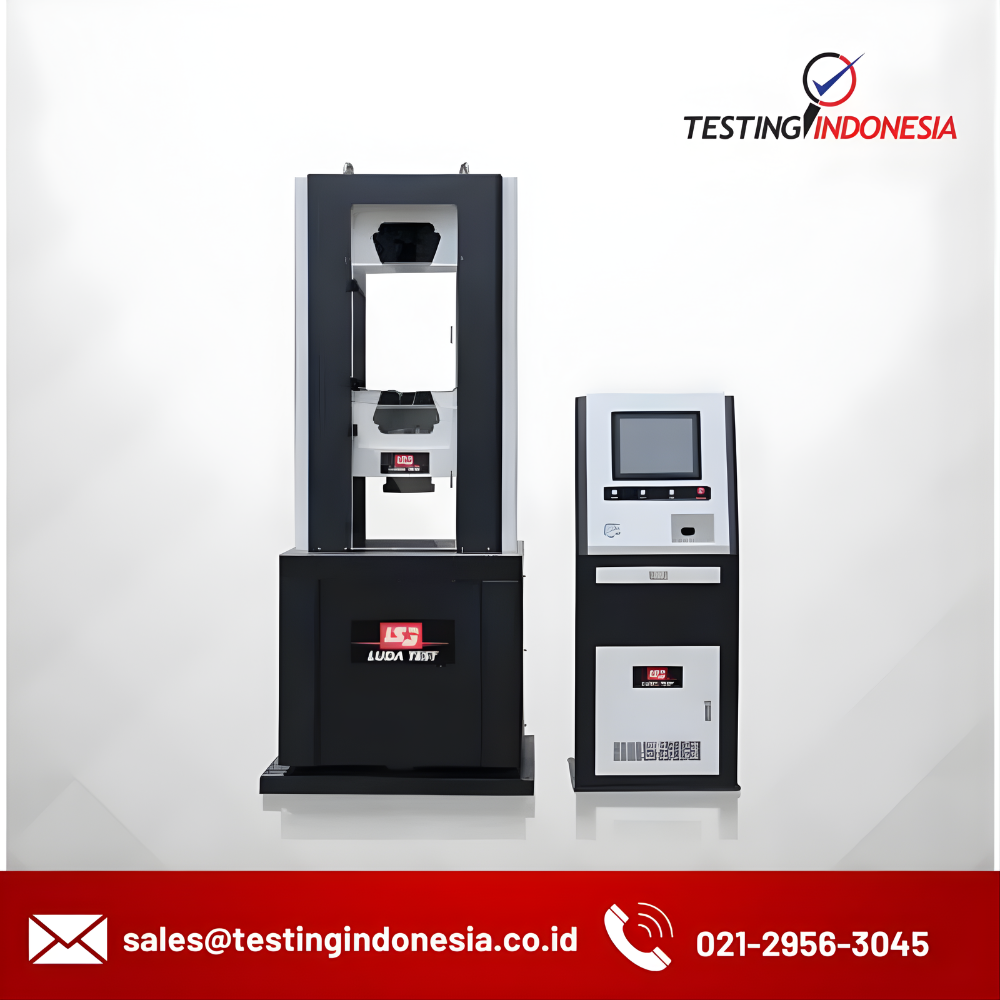

WAW Series S Type Electro-hydraulic Servo Universal Material Testing Machine

WAW Series S Type Electro-hydraulic Servo Universal Material Testing Machine

Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , ,

Description

This product is suitable for metal, non-metal and composite materials, components of tensile, compression, bending, shear and other mechanical properties testing. The product adopts the under-mounted cylinder, microcomputer control, electro-hydraulic servo, with high precision, simple operation, convenient, large data storage capacity and other advantages.

Features

  1. The machine adopts high precision pressure displacement sensor, with high sensitive digital valve, fast response speed, high resolution.
  2. Hydraulic control adopts integrated oil servo control system, easy to operate, stable and reliable.
  3. With intelligent prompting working state, servo automatic compensation, positioning, pressure-holding and other functions.
  4. The test space can be adjusted at will by moving the beam, and different test pieces can be tested
  5. The range can be automatically switched, and the range is automatically selected according to the load bearing size of the sample.
  6. With maximum load peak hold function, overload protection and position overlimit protection, safer to use.
  7. With automatic data storage and automatic calculation and printing of all test results.

Spesification

Model Specifications WAW-100S WAW-300S WAW-600S WAW-1000S WAW-2000S
Maximum test force(KN) 100 300 600 1000 2000
Effective measurement range 5%～100%
Accuracy of load indication value Level 0.5
Stretching space (mm) 480 540 690 690 790
Compressed Space (mm) 480 480 620 620 720
Flat specimen clamping thickness(mm) 0-15 0-15 0-15 0-15 0-40
Round specimen clamping diameter(mm) 10-20 10-20 、20-32 13-26 、26-40 14-32 、30-50 20-40、40-60
Working piston stroke(mm) 180 250
Upper pressure plate size(mm) Φ180 Φ180 Φ180 Φ220 Φ220
Lower pressure plate size(mm) Φ180 Φ180 Φ180 Φ230 Φ230
Distance between the two columns of the pulling and pressing space(mm) 380 400 400 450 570
Maximum rise speed of table plate(mm/min) 100
Maximum lifting speed of moving beam(mm/min) 240
Total motor power(Kw) 27 27 27 27 37
Supply Voltage AC380V±10%,50Hz
Main external dimensions(mm) 730×600×1750 8730×600×1840 890×590×2070 945×635×2100 1200×800×2940
Dimension of force measuring cabinet(mm) 700×520×1630
Overall weight(kg) 1500 1700 2400 2800 3500
