Sewage-Level-Sensor-LMK382H

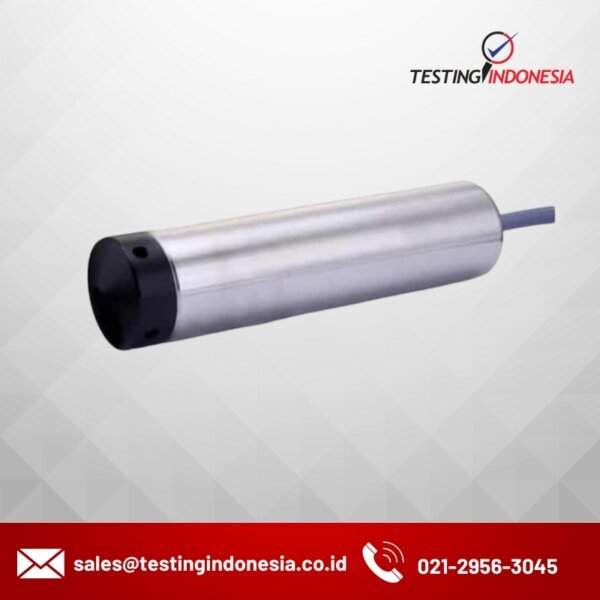

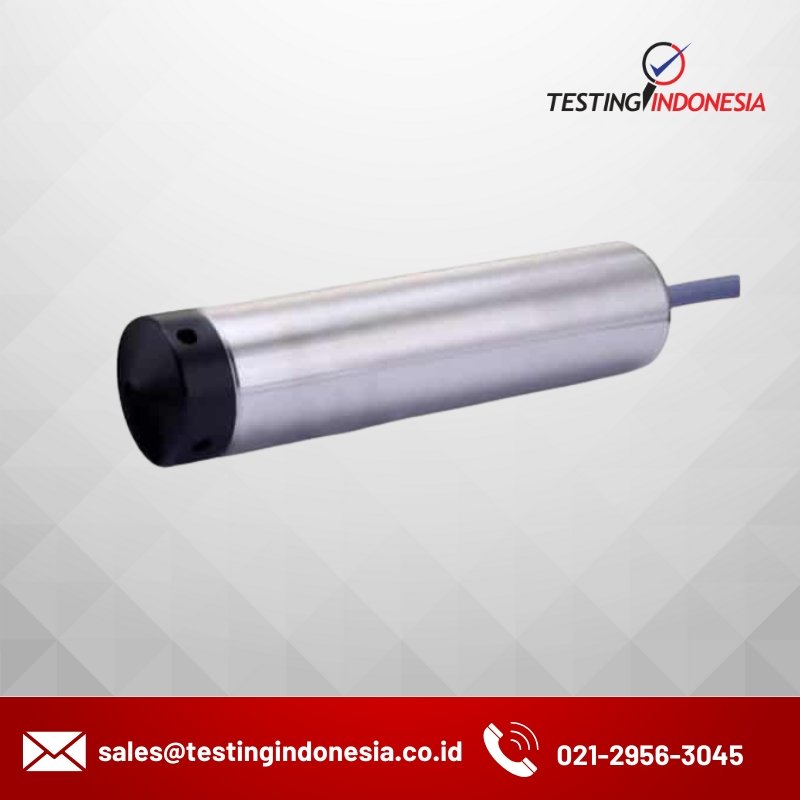

Sewage Level Sensor LMK382H

Category: Tags: ,

Description

The LMK382H sewage level sensor Hart® communication has a diameter of 39.5mm and is designed to measure in sewage, wastewater and higher viscous media from 0-60cmH20 up to 0-200 mH2O.

The LMK382H is Hart® communication ready on both its standard 2-wire version and the IS and EX ia versions.  It is constructed of high-quality stainless steel offering good long term stability and a high overpressure capability.

IS-versions and Ex ia = intrinsically safe for gas and dust versions are available to measure pressure in extreme environments.

Alternatively, if price is an issue, we can offer our LMK382 wastewater level sensor which has the same diameter and measures 0-40 cmH2O up to 0-200 mH2O but without Hart® Communication enabled.

Specifications

  • 39.5mm Diameter
  • Ranges: 0-60 cmH2O up to 0-200 mH2O
  • Accuracy: 0.1% /0.2% FSO
  • Outputs: 2-wire 4-20mA (others on request)
  • Environmental Protection: IP68 Fully Submersible
  • IS and Ex ia Versions

About Sewage Level Sensor

  • Only 39.5mm Diameter
  • Ideal for Sewage & Wastewater
  • HART® Communication (Setting of Offset, Span and Damping)
  • For Use in Ground Water Level Measurement & Rain Spillway Basins
  • Fully Submersible for Long-Term Immersion
  • High Overpressure Capable
  • IS and Ex ia Intrinsically Safe Versions Optional for Fuel Storage

Aplications

  • Ground Water Level Measurement
  • Rain Spillway Basins
  • Waste Water Treatment
  • Water Recycling
  • Fuel Storage
  • Tank Farms
  • Biogas Plants

Product Dimensions

*All dimensions are show in mm
