Superficial-Rockwell-Hardness-Tester-NOVOTEST-TS-SR-C

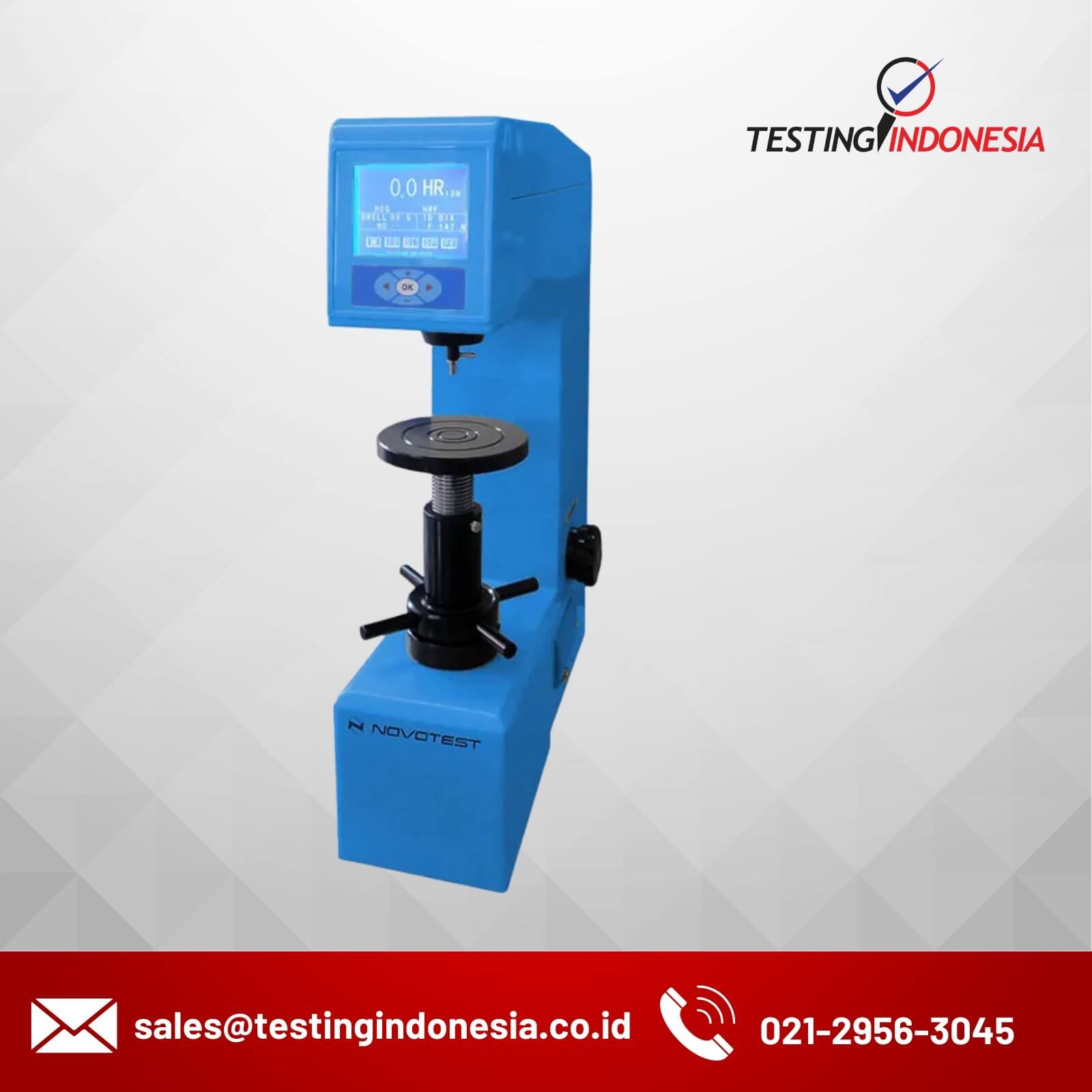

Superficial-Rockwell Hardness Tester NOVOTEST TS-SR-C

Bench Hardness Tester Rockwell superfisial digital adalah perangkat berperforma tinggi dengan layar digital besar, kontrol yang mudah digunakan, dan fitur canggih untuk pemilihan skala, penyimpanan, dan pemrosesan hasil, menjadikannya unggulan di kelasnya.

Categories: , Tags: , , , , , , , , , , Brand: ,

Advantages

  • The bench Rockwell hardness tester has the hyper terminal setting RS-232 with good reliability, excellent operation and easy watching.

Spesification

Initial testing force3kgf (29.42N)
Hardness resolution0.5HR
Dwell time2-60s
Data outputInside printer, RS232 data port
Exchange scalesRockwell, superficial Rockwell
Testing force
  • 15kgf(147.1N)
  • 30kgf(294.2N)
  • 45kgf(441.3N)
Rockwell scale
  • HR15N
  • HR30N
  • HR45N
  • HR15T
  • HR30T
  • HR45T
Testing range
  • HR15N:70-94
  • HR30N:42-86
  • HR45N:20-77
  • HR15T:67-93
  • HR30T:29-82
  • HR45T:10-72
Display modeLCD digital screen
Power supplyAC220V, 50/60Hz
Carried standard
  • ISO 6508-2
  • ASTM E18
Max height of specimens200 mm (can be produced up to 400 mm)
Max depth of specimens135 mm
Dimension (cm)61*40*80 (L*W*H)
Packing weight70KG

Available Option

  • Indenters
  • Standard hardness test blocks
  • Other types of Rockwell scales

Standard Packages

  • Diamond Rockwell indenter
  • Standard superficial Rockwell block 4pc.: 88-92 HR15N 74-82 HR30N 42-55 HR30N 70-82 HR30T
  • Weight（A, B, C） (1pc. of each)
  • Dia.1/16’’ ball indenter
  • Big, medium and V shaped testing platform (1pc. of each)
  • Dustproof cover
  • User’s manual book
  • Quality certificate
  • Printer manual book
