Description

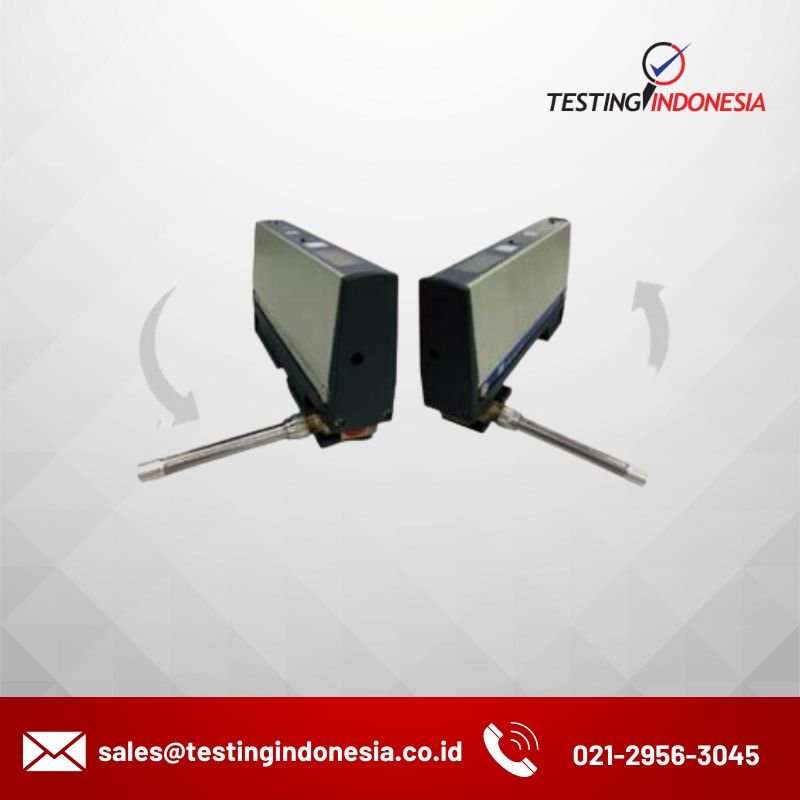

TIME3210 handheld roughness tester stands out due to that its pickup can rotate in any direction.
Surface Roughness Tester TIME®3210
TIME3210 handheld roughness tester stands out due to that its pickup can rotate in any direction.
Spesification
Measuring Range | Ra: 0.03μm~6.35μm |
Rt: 0.2μm~25.3μm | |
Rz: 0.2μm~25.3μm | |
Tolerance | ≤±15% |
Repeatability | ≤12% |
Display resolution | 0.01μm |
Cutoff Length (L) | 0.8mm (Filter: RC Filter) |
Evaluation length | 1L,3L,5L(selectable) |
Driver speed | 3mm/s |
Display | LCD, 3 digital |
Interface | RS232 |
Power | 9V alkaline battery |
Pickup | Inductive |
The max.testing force of pickup | <16mN |
Operating temperature | 0℃～40℃ |
Storage temperature | -20℃～65℃ |
