Description
TIME3221 Surface Roughness Tester is a high cost-effective surface measurement device. Separated driver makes it easier and more flexible to approach different surfaces. Touch screen. Measuring range reaches 400μm to test curved surface

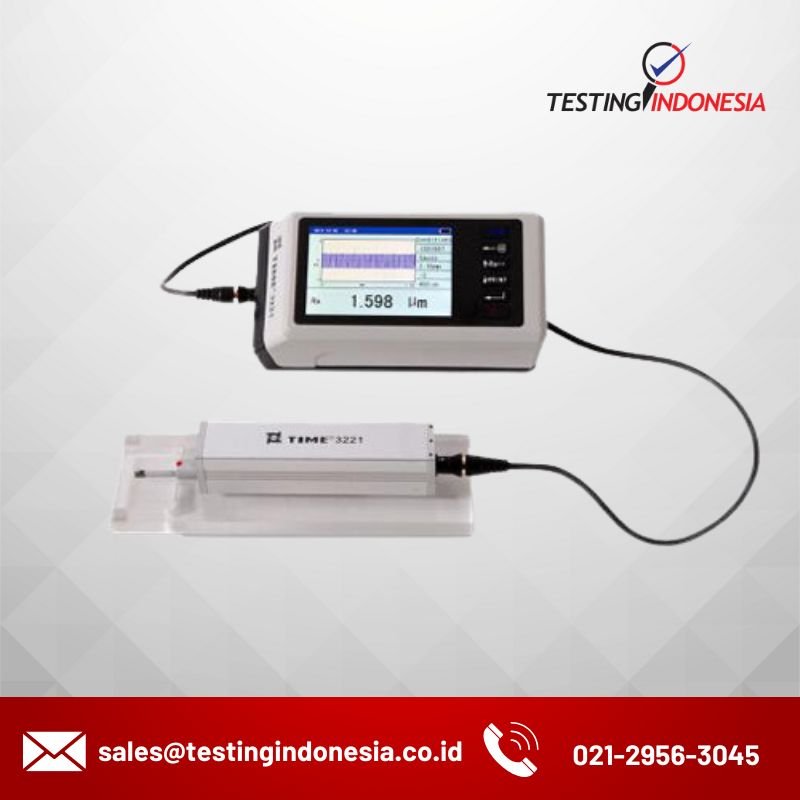

Surface Roughness Tester TIME®3221
TIME3221 Surface Roughness Tester is a high cost-effective surface measurement device. Separated driver makes it easier and more flexible
Spesification
|
Pickup |
||
|
Test principle |
Inductance type |
|
|
Measurement range |
400μm |
|
|
Stylus tip radius |
5μm/2μm |
|
|
Stylus tip material |
Diamond |
|
|
Measuring force |
4mN/0.75 mN |
|
|
Stylus tip angle |
90º/60º |
|
|
Radius of skid curvature |
45mm |
|
|
Maximum drive range |
19mm/0.748inch |
|
|
Traversing speed |
Measuring: Cut off length = 0.08 mm Vt=0.25 mm/s Cut off length = 0.25 mm Vt=0.25mm/s Cut off length = 0.8 mm Vt=0.5 mm/s Cut off length = 2.5mm Vt=1mm/s Returning V=1mm/s |
|
|
Accuracy |
Less than or equal to ±10% |
|
|
Repeatability |
≤6% |
|
|
Cut-off length |
0.08mm,0.25mm,0.8mm,2.5mm, selectable |
|
|
Evaluation length |
(1~5 )L selectable |
|
|
Measuring rang and resolution |
Measuring range |
Resolution |
|
Automatic |
0.001μm,0.008μm |
|
|
±50μm |
0.001μm |
|
|
±200μm |
0.008μm |
|
|
Power |
Built-in Li battery |
|
|
Power adapter |
Input: 100 V~240VAC,50/60Hz Output: 9V,3A |
|
|
Working environment |
Temperature: 0℃~40℃ Humidity: < 90% RH |
|
|
Dimensions (mm) |
155.4×75×53 |
|
|
Weight (g) |
580 | |
