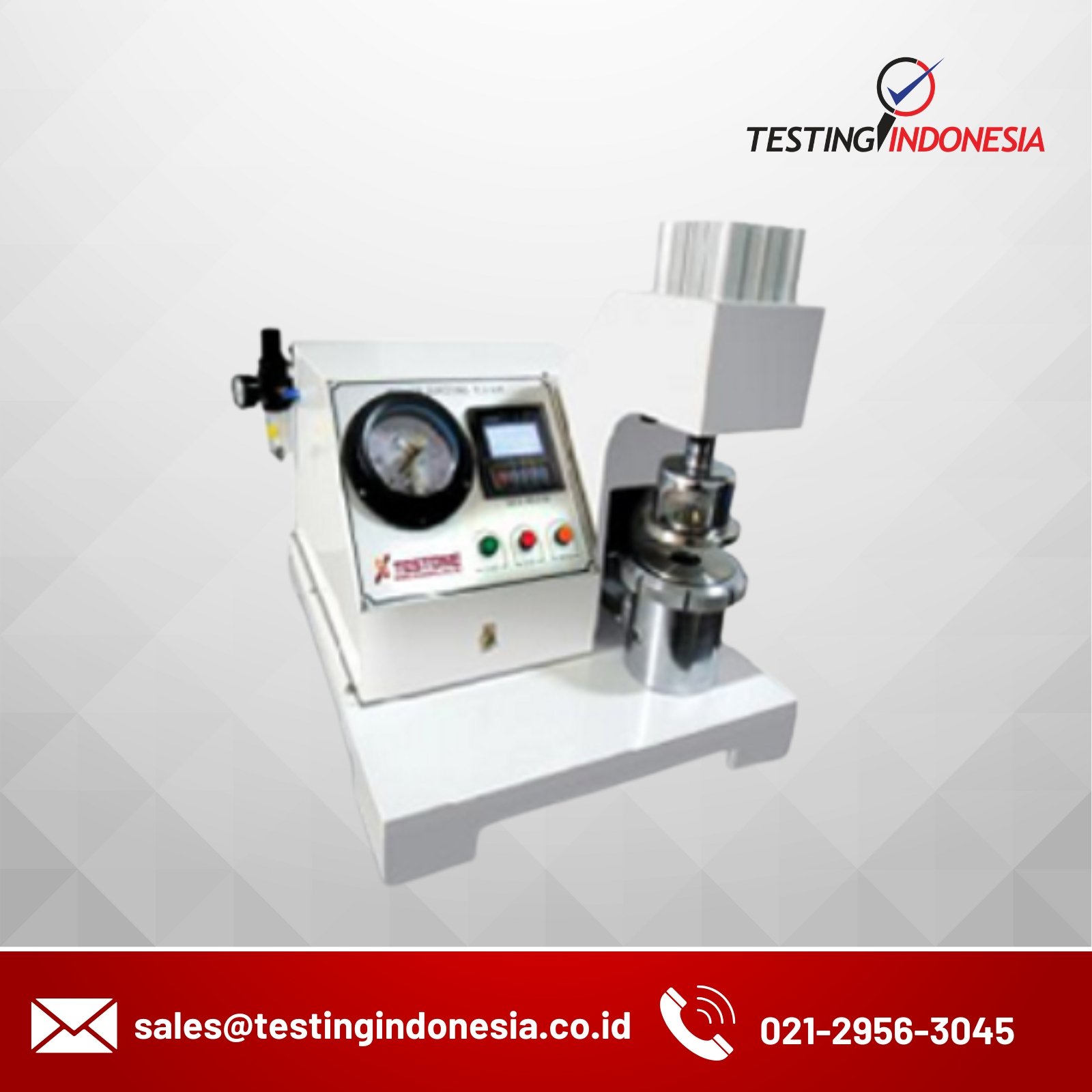

Application Field Paper, fibers, films, sheets Standard ASTM D 3786, KS K 0351, etc. Product Description :)This tester measures the burst strength of paper, fibers, films, sheets, etc. After the sample was pinned to the clamp, the load values are measured when the sample is ruptured by the oil pressure (glycerine).
:)Basically, the low-pressure type (95mL/min) is designed.
:)Option: High Pressure Type (179mL/min, Max 50kg/cm2).
Spesification
Model
TO 890
TO-890 A
Type
Manual
Auto
Digital Pressure
0-50kg/cm2
0-50kg/cm2
Motor
0.75kw
0.75kw
Capacity
50kgf/cm2
Digital 50kgf/cm2
Indicator
Analog (Option : Digital)
Peak Hold, Zero (kgf)
Dimension
350 x 500 x 550 (W x D x H)
400x 650 x 600 (W x D x H)
Power
AC 220V 60Hz
AC 220V 60Hz
