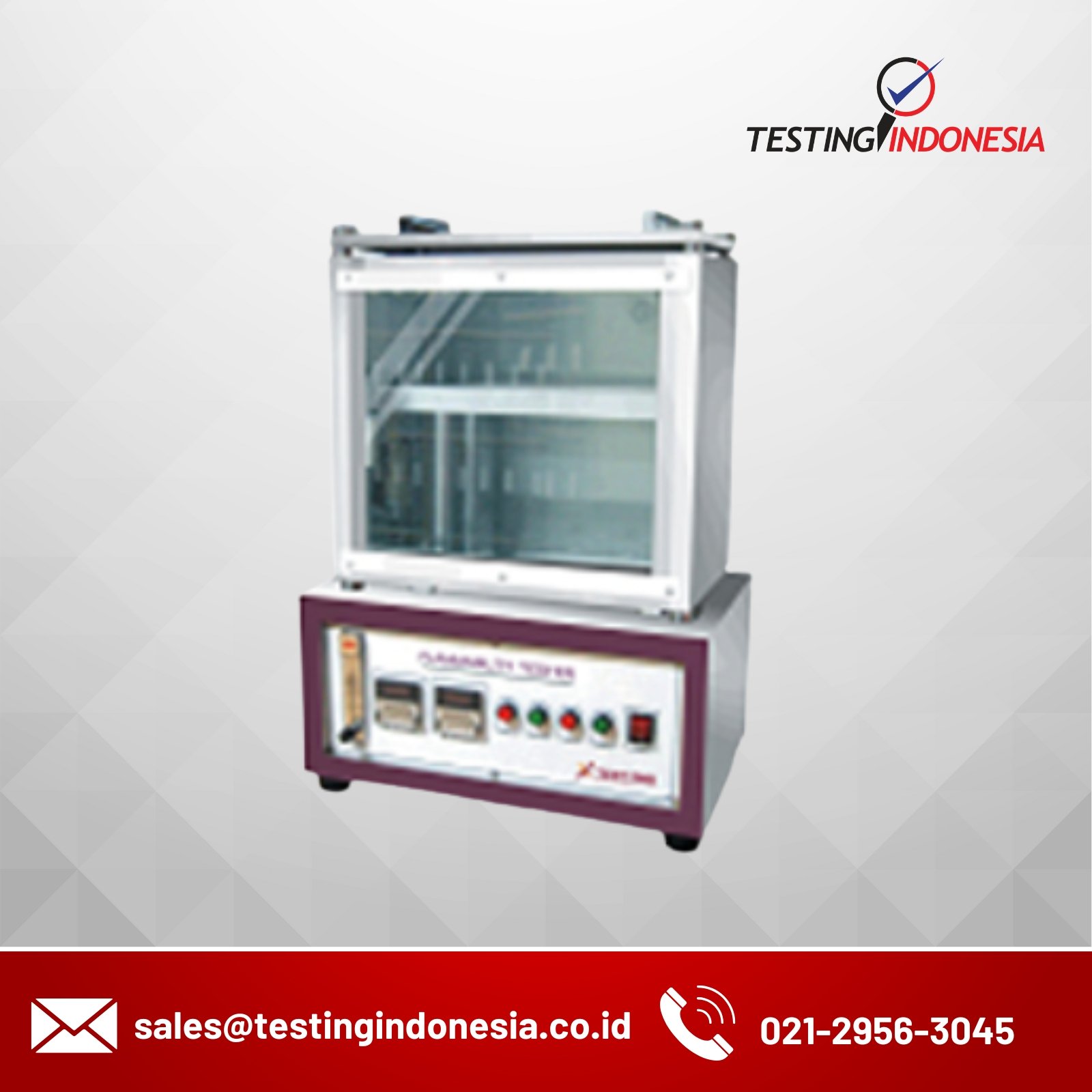

Flammability Tester TO-880

Features

Application Field

Plastics, textiles, leather, PU, etc.

Standard

It is based on each international standard.

Product Description

:)The tester was produced based on standards of UL94, ISO, KS, ASTM, etc. This is a device that measures the flame retardant performance.
:)This is usually divided into three forms of horizontal, vertical, 450 based on the location of the sample. There are different burners and ignitions for each standard. Mainly, automotive products are produced based on the standard of horizontal type (FMV SS 302). The tester only for UL94 (safety testing and certification organization of U.S.) is also produced.
:)By adopting the auto ignition system, a smooth gas supply (ignition) is available. Besides, when the door is opened, automatic fire extinguishing system is on stream, so it’s safety is excellent.
:)Related standard such as interiors of materials of automotive product, building interiors and exteriors, plastic, urethane, fabric, carpet, etc. are different depending on the product, so check the appropriate model and specifications is required.

Spesification

ModelTO 880ULTO-880H
TypeHorizontal/verticalHorizontal
MaterialAll Stainless SteelAll Stainless Steel
Specimen Size127 x 12.7 x 3.05 – 12.7mm100 x 350mm
IgnitorAuto Ignite TypeAuto Ignite Type
BurnerBunsen BurnerBunsen Burner
BurnerMannual TypeMannual Type
Dimension (W x D x H )600 x 500 x 1400mmApprox. 550 x 350 x 550 mm
PowerAC 220 V 60HzAC 220 V 60Hz
Net WeightApprox. 30kgApprox. 20kg
Standard MethodUL94HB, UL94VO/V1/V2FMV SS 302, ISO 3583, KS K 0582
ModelTO 880DTO-880V
Type450 TypeVertical
MaterialAll Stainless SteelAll Stainless Steel
Specimen Size220 x 400mm(80 or 200) x 200mm
IgnitorAuto Ignite TypeAuto Ignite Type
BurnerAir Mix Burner, Micro BurnerBunsen Burner
BurnerMannual TypeMannual Type
Dimension (W x D x H )Approx. 40kgApprox.  35kg
Standard MethodKS K 2619, KS K 0818, KS K 0816KS K ISO 6940, ASTM D 3014, California 117
