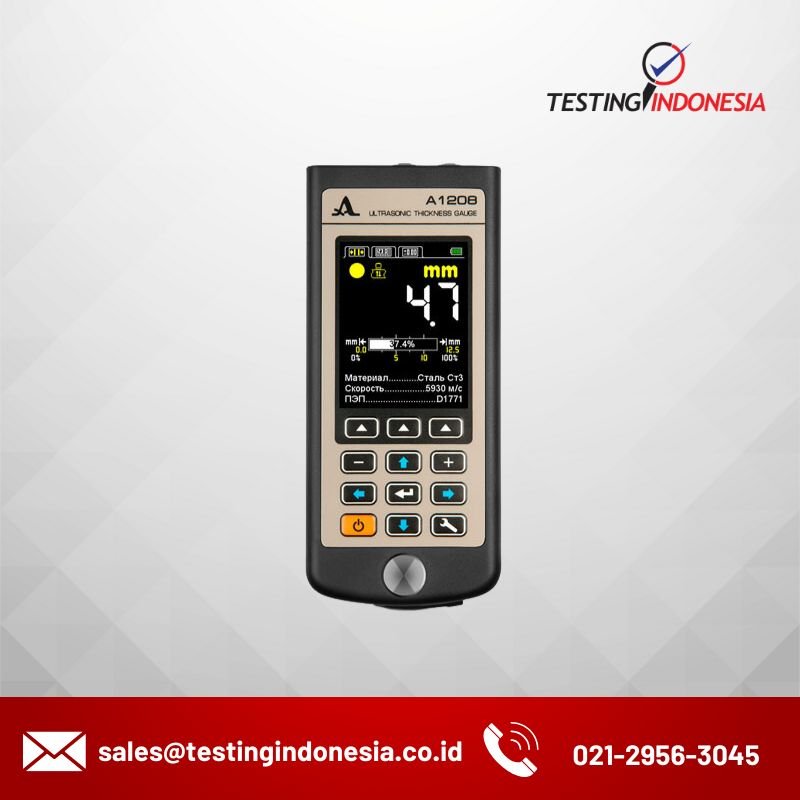

Thickness Gauge A1208

Categories: , Tags: , , , , , , , , , , , , ,

Description

Ultrasonic thickness gauge tahan beku ini dirancang khusus untuk kondisi cuaca ekstrem (mulai dari -30˚ hingga +50 ˚С). Alat ini memiliki rentang pengukuran ketebalan pada baja mulai dari 0,7 hingga 300 mm, serta kompatibel dengan single-crystal maupun double-crystal transducers.

Komponen dan Kegunaan:

  • Single-crystal wear-resistant transducer S3567 2.5A0D10CL Digunakan untuk mengukur ketebalan logam, besi cor (cast iron), dan material lainnya yang memiliki tingkat redaman ultrasonik (ultrasound attenuation) yang tinggi.

  • Double-crystal transducer D2763 10.0A0D6CL Berfungsi untuk mendeteksi korosi sumuran (pitting corrosion) serta mengukur ketebalan pipa berdinding tipis dengan diameter kecil.

Keunggulan Utama:

Perangkat ini sangat mudah dikuasai berkat dukungan layar dengan kontras tinggi, antarmuka yang ramah pengguna (friendly interface), serta fungsionalitas yang mumpuni untuk berbagai kebutuhan inspeksi.

Spesification

Thickness measurement range(for steel) with transducers: S3567 2.5A0D10CLfrom 0,8 to 300,0 mm
D2763 10.0A0D6CLfrom 0,7 to 30,0 mm
Discreteness of thickness measuring for thickness range: from 0,7 to 99,99 mm0,01; 0,1 mm
from 100,0 to 300,0 mm0,1 mm
Basic measurement accuracy for thickness X, mm not more: for thickness from 0,7 to 3,0 mm±(0,01Х+0,1) mm
for thickness from 3,01 to 99,99 mm±(0,01Х+0,05) mm
for thickness from 100,0 to 300,0 mm±(0,01Х+0,1) mm
Minimum curvature radius10 mm
Ultrasound velocity rangefrom 500 to 19 999 m/s
Display typeTFT
Powerbuilt-in lithium accumulator
Operation time without re-charging9h
Opeating temperaturefrom -30 to +50 °С
Size of the electronic unit161 х 70 х 24 mm
Weight of the electronic unit210 g

Application

Express ultrasonic inspection of wall thickness of the boilers and vessels, hull plates and other objects made of ferrous and non-ferrous metals, as well as for ultrasonic thickness measurements of the small-diameter metal and plastic pipes (from 20 mm)

Thickness measurement of pipe walls, boilers, vessels from metals with surface roughness of up to Rz 160 and curvature radius from 10 mm. Inspection of plastic products can be possible.

Detection of pitting corrosion of more than 4mm2 on the internal surface of the pipe.

The operator can measure the thickness of pipes with thin walls using double-crystal transducer D2763 10.0A0D6CL.

Delivery Kit

• A1208 – ultrasonic thickness gauge
• Transducer S3567 2.5A0D10CL
• Single LEMO 00 – LEMO 00 cable 1,2 m
• 220 В – USB adapter
• USB A – Micro B cable
• Soft cover
• Case
