Thickness Gauge Calibration Blocks

Category: Tags: , , ,

Description

Set of KUSOT-180 ultrasonic thickness calibration blocks is intended for examination and for initial inspection at manufacturing of ultrasonic contact thickness gauges.

KUSOT-180 сalibration blocks are also used for verification, calibration and metrological certification of ultrasonic thickness gauges.

KUSOT-180 сalibration blocks are used in the following ranges:

  • 0,2-300 mm on steel
  • 1-300 mm on duralumin
  • 1-100 mm on brass

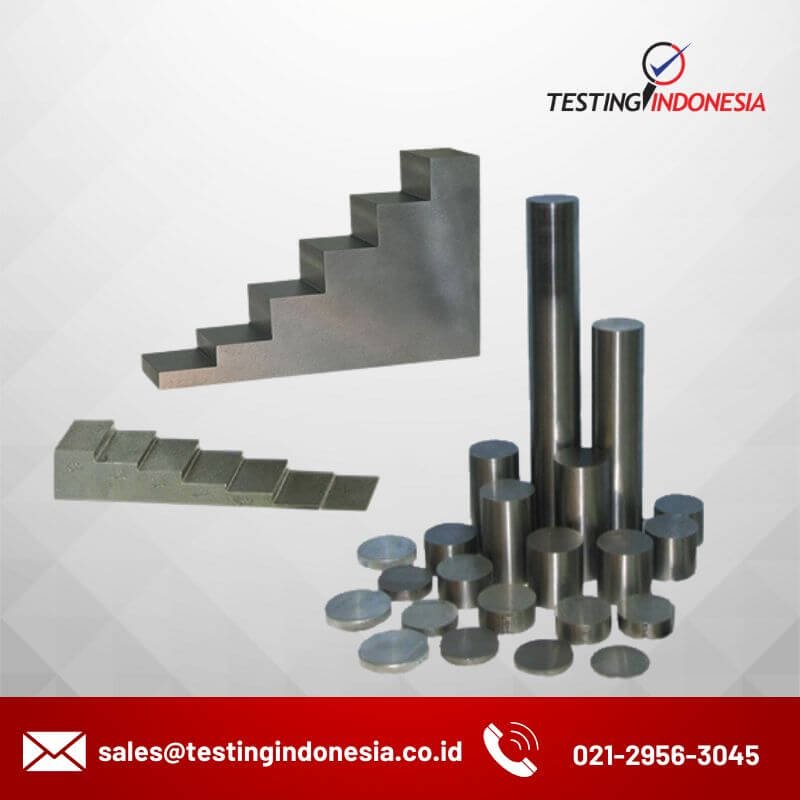

The kit consists of the thickness samples, combined in sets and packed in a case.

Step-calibration blocks (Step wedge calibration blocks) are used for adjustment and calibration of ultrasonic thickness gauges.

Linear dimensions of Step wedge calibration blocks are individually available by a customer request and according to the acting regulatory and technical documentation.

Spesification

No. of setName of setMaterialNominal thickness values
No.1Standard set of plane-parallel thickness blocksAlloy D161; 2; 3; 4; 5; 6; 7; 8; 9; 10; 12; 15; 18; 20; 25; 30; 35; 40; 45; 50; 75; 90; 100.
No.2Standard set of plane-parallel thickness blocksSteel  40H131; 2; 3; 4; 5; 6; 7; 8; 9; 10; 12; 15; 18; 20; 25; 30; 35; 40; 45; 50; 75; 90; 100.
No.3Standard set of plane-parallel thickness blocksSteel  40H13 Alloy D16200; 300; 200; 300.

Features

  • High quality of the materials
  • High precision blocks to a tolerance of ±1%
The blocks can be supplied as a complete set or separately.

Standard Packages

  • Blocks
  • Calibration certificate
  • Case or package

Available Option

Our company can produce both standard KUSOT kits and samples of the thickness of any other values of any required materials.
