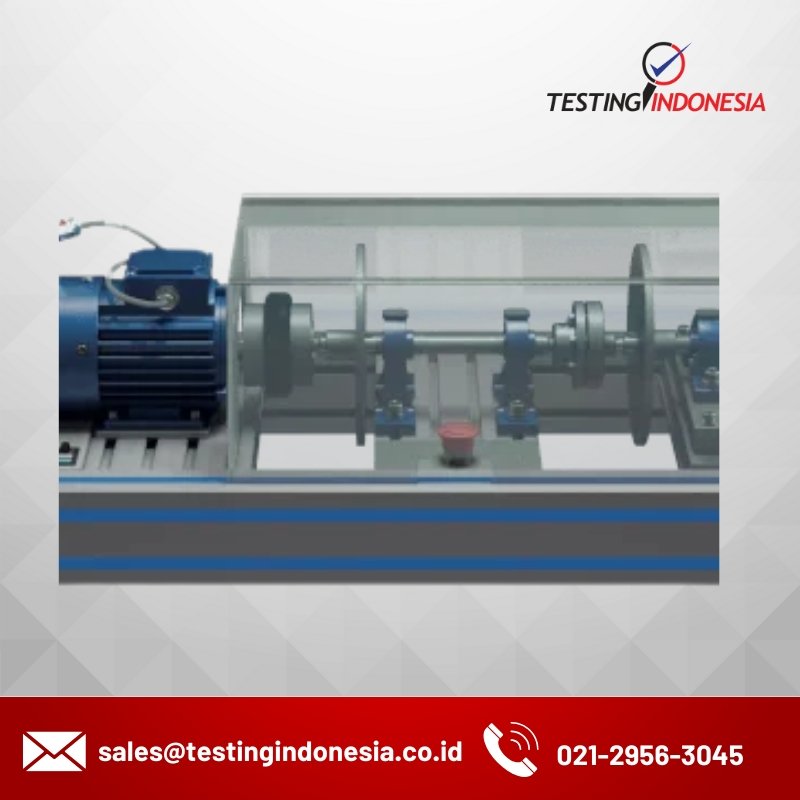

THE TRAINING STAND, DEVELOPED BY THE ASSOCIATION VAST Ltd., IS DESIGNED FOR TRAINING THE FOLLOWING SKILLS:
– MACHINE DIAGNOSTICS;
– CONDITION MONITORING;
– SHAFT ALIGNMENT;
– ROTOR BALANCING IN OWN SUPPORTS.
THE STAND IS SUPPLIED WITH A SET OF REPLACEABLE BEARINGS WITH DIFFERENT DEFECTS. ROTATION SPEED IS CONTROLED IN THE 0 TO 2000 RPM RANGE. THE STAND STOPS AUTOMATICALLY ON THE OPENING OF THE PROTECTIVE COVER.
Name | Value |
Dimensions Length Width Heigh | 1000 mm 400mm 320mm |
Weight | 50 kg |
Rotation speed | 0….2000 RPM |
Required power supply | 220±10% V/ 50Hz 0.37 kW |
Discs for balancing Diameter/Thickness Number of balancing weight attachment places Thread type | 200/8 mm 36 M6 |
Movable machine for alignment Horizontal shift Vertical shift | 4.0 mm 4.0 mm |
Accelerometer mounting places | 4 |
Protective shield | programmable machine stop on opening |
