VW Concrete Embedment Strain Gage

Description

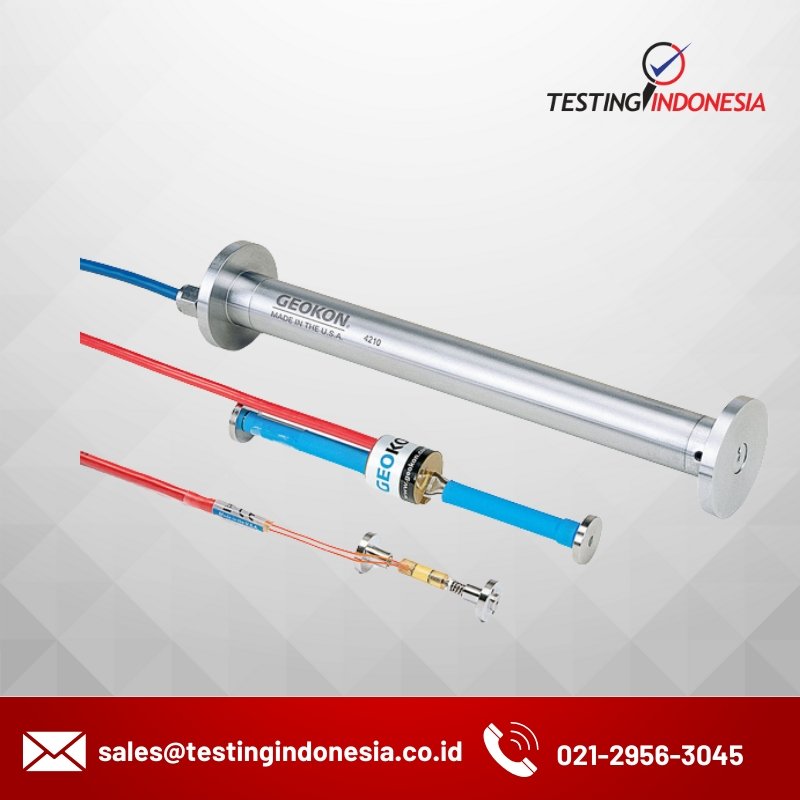

These Strain Gages are designed for direct embedment in concrete. The 4200 (standard model) has a 153 mm gage length and 1 με sensitivity and is commonly used for strain measurements in foundations, piles, bridges, dams, tunnel linings, etc. The 4210 has a 250 mm gage length making it particularly suitable for use in large aggregate concrete. The 4202 is designed for laboratory use and/or where there are space limitations. Low modulus versions, for measuring concrete curing strains, are also available

Spesification

Standard Range¹3,000 µε
Resolution4200 | 1.0 µε
4202 | 0.4 µε
4210 | 0.4 µε
Accuracy²±0.5% F.S.
Nonlinearity<0.5% F.S.
Temperature Range¹−20 °C to +80 °C
Active Gage Length4200 | 153 mm
4202 | 51 mm
4210 | 250 mm³



¹ Other ranges available on request.
² ±0.5% F.S. with standard batch calibration. ±0.1% F.S. with individual calibration. Accuracy established under laboratory conditions.
³ Other lengths available on request.
