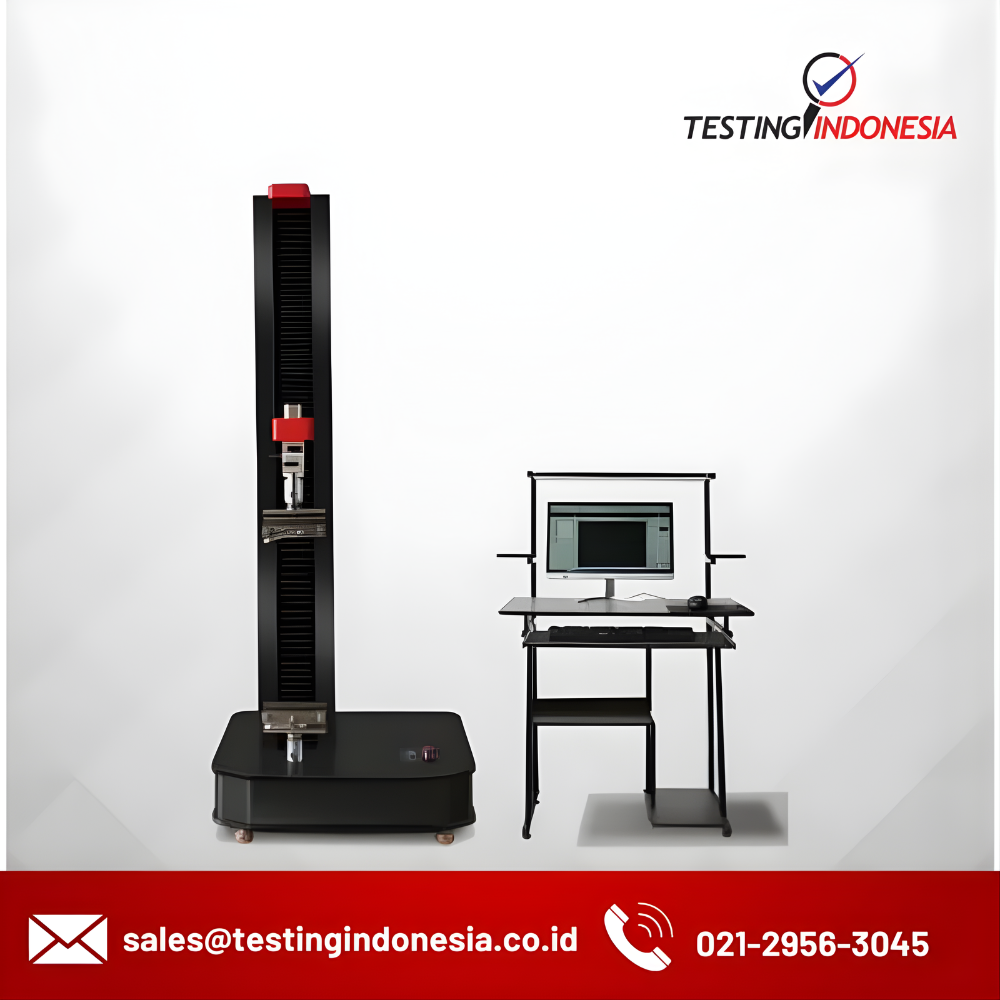

WDW-5 Electronic Universal Material Testing Machine

Name: Testingindonesia
Rating: 5

Category: Electronic Universal Testing Machine Tags: Alat Uji Kekuatan Material, Electronic Universal Testing Machine, jual Alat Uji Kekuatan Material, jual Electronic Universal Testing Machine, jual mesin uji tarik, jual Mesin Uji Universal, jual Mesin Uji Universal Elektronik, jual Suku Cadang Mesin Uji Universal, Jual Tensile Strength Tester, Jual Universal Testing, Jual Universal Testing Machine, jual Universal Testing Machine (UTM), jual utm, Layanan Kalibrasi Mesin Uji Universal, Machine, Material Testing Equipment, mesin uji tarik, mesin uji universal, Mesin Uji Universal Elektronik, Pengujian Kekuatan Material, Pengujian Material, Suku Cadang Mesin Uji Universal, tensile strength tester, Tensile Testing Machine, Uji Lengkung, Uji Tarik, Uji Tekan, universal testing machine, Universal Testing Machine (UTM), utm, WDW-5 Electronic Universal Material Testing Machine

Description

This product is suitable for testing and analyzing the mechanical properties of various metals, non-metals and composite materials, and can obtain test data such as maximum test force value, fracture force value, yield strength, upper and lower yield strength, tensile strength, compressive strength, elongation at break, tensile modulus of elasticity and bending modulus of elasticity of test materials.

Features

Safety position and experimental position height arbitrary lock.
Automatic protection when exceeding the maximum load, software limit and electronic limit double protection.
Microcomputer control, real-time display of graphs, automatic generation of reports.

Spesification

Model: WDW-5
Maximum load (KN): 5
Precision grade: 1 grade
Test force measurement range (FS): the whole process is not graded
Relative error of the test force value: ±1% or less
Test force resolution: 1/±300000 of the test force
Displacement resolution (um)：0.025
Relative error of displacement value: ±1% of the indicated value
Force control rate adjustment range FS/S: 0.01~5%
Relative error of force control rate: within ±1% of the set value
Deformation resolving power: 1/±300000 of the maximum deformation
Deformation measurement range FS：0.2%～100%
Relative error of deformation value: ±1% of the displayed value
Deformation rate adjustment range FS/S: 0.02～5%
Cross-beam speed adjustment range (mm/min)：0.01～500
Effective tensile space (mm)：800
Effective test width (mm)：100
Power supply: 220V±10%,0.4kW
Dimension of main machine (mm)：600×380×1500
Host weight(kg)：80
