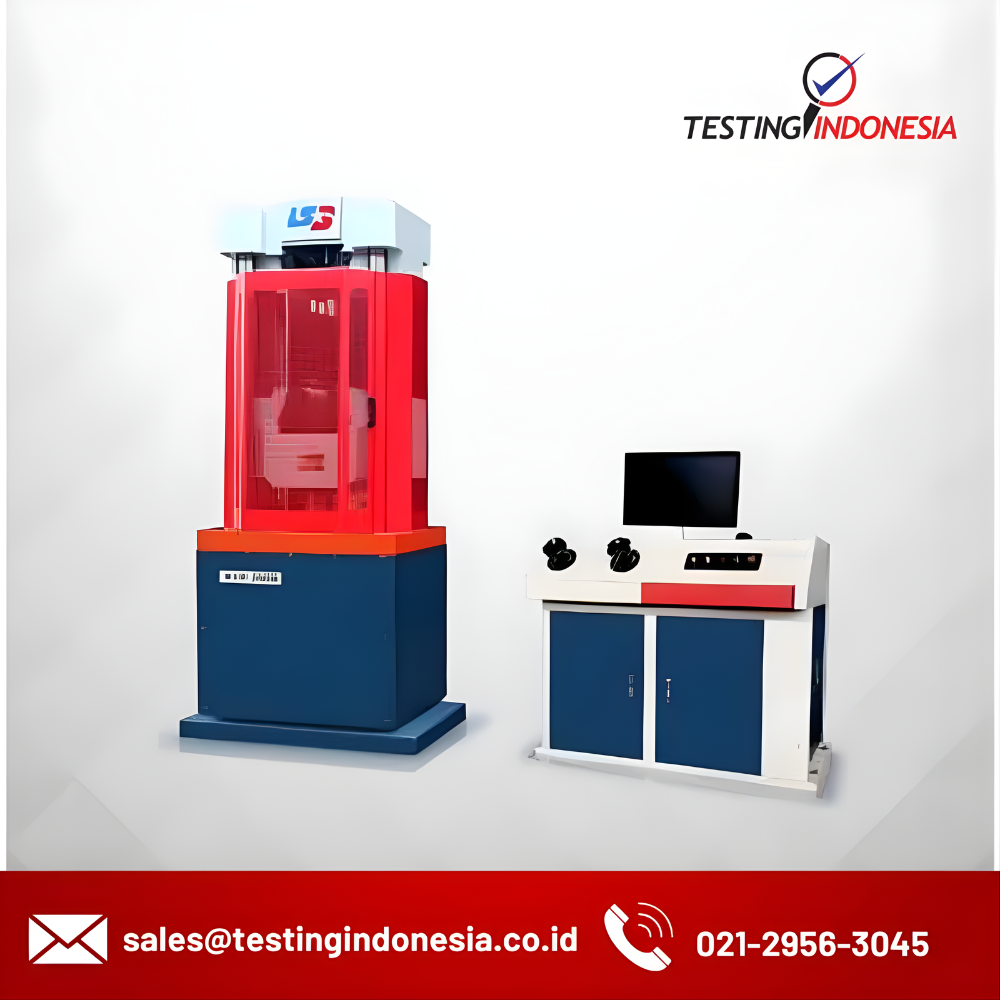

WEW Series Screen Display Universal Material Testing Machine

Category: Tags: , , , , , , , , , , , Brand:

Description

Alat penguji (tester) ini dirancang menggunakan sistem hydraulic force dan computer display, dengan konfigurasi terpisah antara main body dan force meter. Alat ini menawarkan pengoperasian yang mudah, kinerja yang stabil dan andal, akurasi pengujian yang tinggi, serta penyaluran gaya yang halus. Peralatan ini cocok digunakan untuk melakukan tensile, compression, bending, dan shear test pada material seperti logam, semen, beton, plastik, dan bahan lainnya.

Features

  1. The machine adopts high precision displacement sensor, the data is accurate.
  2. Adopt high resolution collection system, fast data collection speed, high accuracy.
  3. Adopt the design of hydraulic manual loading, computer display, main body and force meter subposition, easy operation and smooth force addition.

Spesification

Model Specifications WEW- 100B WEW-300B WEW-600B WEW- 1000B
Maximum test force(KN) 100 300 600 1000
Range and measurement range (KN) 10～100 30～300 60～600 100～1000
Relative error of value ±1% ±1% ±1% ±1%
Stretching space (mm) 480 480 690 690
Compressed Space (mm) 480 480 620 620
Flat specimen clamping thickness(mm) 0-15 0-15 0-15 0-40
Round specimen clamping diameter(mm) 10-20 10-20 10-32 13-26 26-40 14-32 30-50
Working piston stroke(mm) 120 120 170 170
Upper and lower platen size(mm) Φ176/Φ176 Φ180/Φ180 Φ220/Φ230 Φ220/Φ230
Distance between two pillars in tension and compression space(mm) 420 420 510 510
Maximum rise speed of table plate(mm/min) 100 100 100 100
Maximum lifting speed of moving beam(mm/min) 240 240 240 240
Total motor power(Kw) 12 12 18 18
Main external dimensions(mm) 730×550×1660 730×600×1840 820×600×2000 940×650×2080
Dimension of force measuring cabinet(mm) 1000×700×850
Overall weight(kg) 1600 1600 2100 2400
