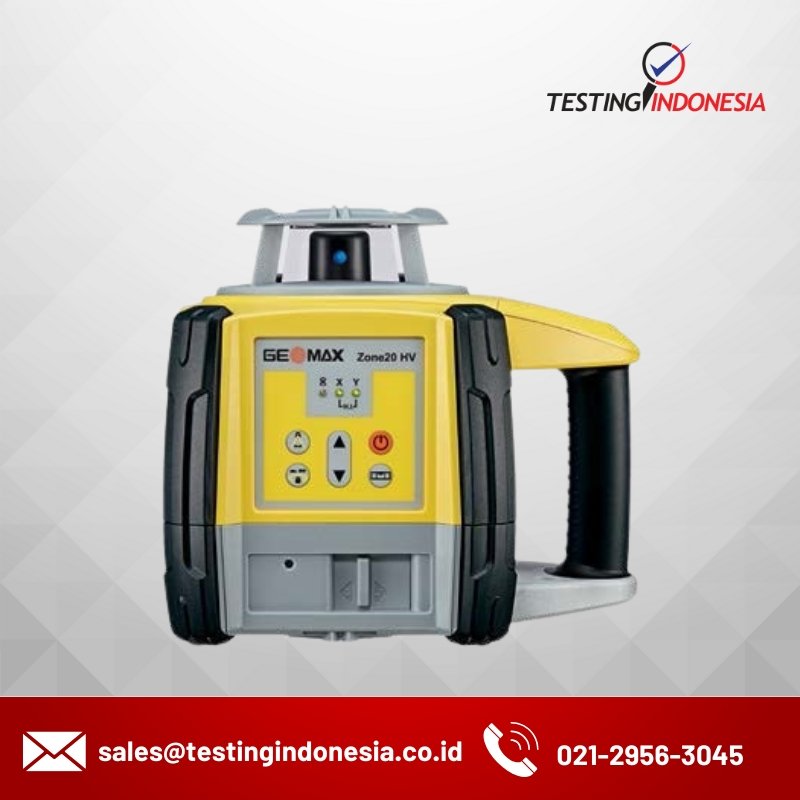

Zone20 HV

Name: Testingindonesia
Rating: 5

The multipurpose Zone20 HV offers the Zone20 H basic specifications, plus the capability of vertical leveling and aligning. It includes a long-range remote to adjust and align easily on any job site. To support the toughest working conditions, the rotating head is fully enclosed and the laser complies with IP67 class, making it the perfect multipurpose laser for any professional.

Category: Laser Rotators Tag: Zone20 HV

Description

The powerful GeoMax Zone laser rotators portfolio offers the right construction tools for all trades and applications. Regardless if you’re just starting in the industry dealing with the fundamentals or you’re a seasoned professional handling complicated applications, GeoMax laser rotators are ready to work when you do.

Choose the perfect laser for your levelling, aligning or grading application from one of the best laser rotator portfolios in the market.

Solid-built and dependable in any element, these lasers ensure long-lasting operations thanks to multiple charging options and offer interchangeable accessories.

The multipurpose laser Zone20 HV laser offers the Zone20 H basic specifications plus the capability of vertical levelling and aligning. It includes a long-range remote to adjust and align easily in any jobsite. To support the toughest working conditions, the rotating head is fully enclosed and the laser complies with IP67 class.

Multipurpose laser for in- and outdoor applications

The Zone20 HV is a real multipurpose laser as it deals easily with interior as well as exterior applications. It cannot only be used for concrete and form work but also levelling, aligning, plumbing or squaring. It is the ideal partner for contractors who need the horizontal as well as the vertical functions of the device. Interior, the laser is an ideal partner for professionals for ceilings, layout and drywall applications.

Set exact 90°

Contractors need to measure and mark out the position for walls. The placement of formwork is critical to ensure 90° as well as exact lines. At least two people and time is required to conduct this task. The Zone20 HV solves this issue by having the plumb down beam function to easily set up over a point. The 90° are given automatically and precise.

Control the laser remotely

For contractors, who need to level the base to achieve a consistent slope from the street to the house, the Zone20 HV takes care of the contractor’s main job. It is very easy to set the manual grade with the remote ZRC20 remotely. Changing and adjusting the settings can be done without touching the laser.

Spesification

	Zone20 H	Zone20 HV	Zone40 T
Description	Self-leveling horizontal manual slope in dual axes	Self-leveling horizontal, vertical, 90° manual slope in dual axes	Self-leveling, horizontal one-button laser
Operating Range	900 m / 3000 ft (diameter)	900 m / 3000 ft	900 m / 3000 ft
Accuracy	± 2.2 mm at 30 m (± 3/32” at 100 ft)	± 2.2 mm at 30 m (± 3/32” at 100 ft)	± 1.5 mm at 30 m (±1/16” at 100 ft)
Self-leveling range	± 6°	± 6°	± 5°
Grade range	-	-	-
Rotation Speed	600 rpm	120, 300, 600 rpm	600 rpm
Laser diode type/class	635 nm (visible) / class 1	635 nm (visible) / class 2	635 nm (visible) / class 1
Batteries type	4 D-cell alkaline / Li-Ion 4	4 D-cell alkaline / Li-Ion	4 D-cell alkaline / Li-Ion
Battery life	> 60h (alk) / > 40h (Li-Ion)	> 60h (alk) / > 40h (Li-Ion)	> 60h (alk) / > 40h (Li-Ion)
> 60h (alk) / > 40h (Li-Ion)	-10°C to 50°C 14°F to 122°F	-10°C to 50°C 14°F to 122°F	-10°C to 50°C 14°F to 122°F
Storage Temp.	-30°C to 70°C -22°F to 158°F	-30°C to 70°C -22°F to 158°F	-30°C to 70°C -22°F to 158°F
Protection	IP67	IP67	IP67

Laser Receivers and Remotes

	ZRB90 Basic	ZRP105 Pro	ZRD105 Digital	ZRD105B
Working diameter	600 m (6000 ft)	900 m (3000 ft)	900 m (3000 ft)	900 m (3000 ft)
Extended detection window	80 mm / 3.1 in	105 mm / 4 in	105 mm / 4 in	105 mm / 4 in
Numeric readout height	-	-	90 mm / 3.5 in	90 mm / 3.5 in
Beam catching	-	-	-	✓
Beam lock	-	-	-	✓

ZRB90 Basic

The new and robust receiver, that comes with a specific bracket, has a long detection window and enables detecting at a length of 8cm. The accuracy read out of 1mm/2mm allows an easy finding of the laser beam. The ZRB90 Basic Receiver works up to 300m and runs from the power supply of 2 x AA alkaline batteries. It complies with the high standard of IP66 and therefore allows working even in tough construction environments. The ZRB90 Basic works with all Zone Lasers as well as the ZEL400.

ZRP105 Pro

Top performance. Professional format with a detailed, multi-channel analog, dual display, supported by adjustable LED and audio signals. Build-in flash suppression. This receiver can be used for all Zone Lasers.

ZRD105 Digital

Best digital display technology, packed into a professional and robust housing. Fully featured for a top performance with precise results. Dual display, supported by adjustable LED and audio signals. Build-in flash suppression. This receiver can be used for all Zone Lasers.

ZRD105B

Combines the advantages of the ZRD105B with great new features that are available with the Zone 60DG. Beam Catching – find and align the beam by one key press. Beam Lock allows monitoring the beam. The ZRD105B can be used for the Zone60 DG.
