Zone60 DG

Name: Testingindonesia
Rating: 5

Category: Laser Rotators Tag: Zone60 DG

Description

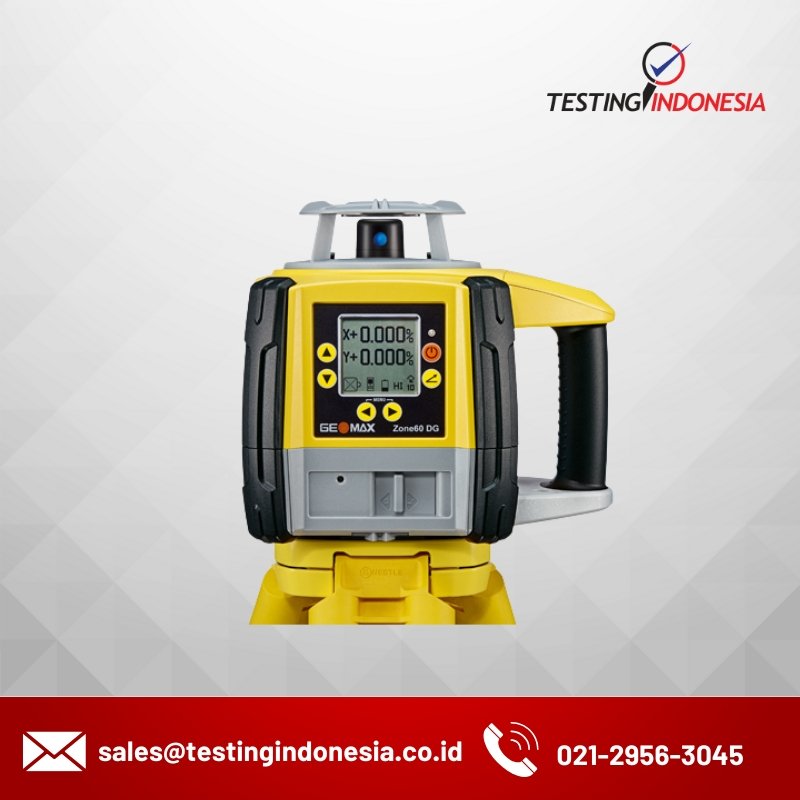

The Zone60 DG is a fully-automatic grade laser in both axes, specifically designed for crews that require dependability and accuracy on a daily basis. Digital grades can be entered up to 15% slope making it suitable for almost any construction site. Save even more time by using this laser with the ZRD105B laser receiver, which automatically catches and monitors the laser’s beam.

The powerful GeoMax Zone laser rotators portfolio offers the right construction tools for all trades and applications. Regardless if you’re just starting in the industry dealing with the fundamentals or you’re a seasoned professional handling complicated applications, GeoMax laser rotators are ready to work when you do.

Choose the perfect laser for your levelling, aligning or grading application from one of the best laser rotator portfolios in the market.

Solid-built and dependable in any element, these lasers ensure long-lasting operations thanks to multiple charging options and offer interchangeable accessories.

The Zone60 DG is a fully-automatic grade laser in both axes, specifically designed for construction workers who need the dependability and accuracy of a fully professional grade laser on a daily basis. Digital grades can be entered up to 15 per cent and is, therefore, suitable for every construction site. Through the display settings of inclinations in two axes, horizontal and vertical, are very simple.

Managing high variety of applications

Perfect for outdoor applications, such as grading of roads, the Zone60 DG allows you easily to correct and remove irregularities. It guarantees you repeatable and accurate results in long distances even in the toughest working conditions. The Zone60 DG is the ideal partner for level, single or dual slope as well as batterboard applications. It can be used to align for marking of formwork placing and also batterboard points to mark out axis. The Zone60 DG is ideal for contractors who need to grade and excavate for plans or ready build structures. The fully automatic operation in horizontal and sloped plane gives a perfect reference for all levelling and grading.

Beam catching and monitoring

With the ZRD105B laser receiver the beam can be caught and monitored automatically. Fully-automatic grade specifically designed for construction workers who need the dependability and accuracy of a fully professional grade laser. With a straightforward user interface on both, the laser and the RF remote, the craftsman is always in full control.

Spesification

	Zone60 HG	Zone60 DG	Zone75 DG
Description	Self-leveling horizontal digital slope in dual axes (semi-automatic).	Self-leveling horizontal, vertical, digital slope in dual axes (fully automatic). Beam catching option.	Self-leveling horizontal, vertical, digital slope in dual axes (fully automatic). Beam catching option.
Operating Range	900 m / 3000 ft	900 m / 3000 ft	1100 m / 3600 ft
Accuracy	± 1.5 mm at 30 m (±1/16” at 100 ft)	± 1.5 mm at 30 m (±1/16” at 100 ft)	± 1.5 mm at 30 m (±1/16” at 100 ft)
Self-leveling range	± 5°	± 5°	± 5°
Grade range	± 8 %	15 %	15 %
Rotation Speed	600 rpm	300, 600 rpm	300, 600, 900 rpm
Laser diode type/class	635 nm (visible) / class 1	635 nm (visible) / class 1	635 nm (visible) / class 1
Batteries type	4 D-cell alkaline / Li-Ion	4 D-cell alkaline / Li-Ion	Li-Ion
Battery life	> 60h (alk) / > 40h (Li-Ion)	> 60h (alk) / > 40h (Li-Ion)	> 50h
Operating Temps.	-10°C to 50°C 14°F to 122°F	-20°C to 50°C -4°F to 122°F	-20°C to 50°C -4°F to 122°F
Storage Temp.	-30°C to 70°C -22°F to 158°F	-30°C to 70°C -22°F to 158°F	-30°C to 70°C -22°F to 158°F
Protection	IP67	IP67	IP67

Laser Receivers and Remotes

	ZRB90 Basic	ZRP105 Pro	ZRD105 Digital	ZRD105B
Working diameter	600 m (6000 ft)	900 m (3000 ft)	900 m (3000 ft)	900 m (3000 ft)
Extended detection window	80 mm / 3.1 in	105 mm / 4 in	105 mm / 4 in	105 mm / 4 in
Numeric readout height	-	-	90 mm / 3.5 in	90 mm / 3.5 in
Beam catching	-	-	-	✓
Beam lock	-	-	-	✓

ZRB90 Basic

The new and robust receiver, that comes with a specific bracket, has a long detection window and enables detecting at a length of 8cm. The accuracy read out of 1mm/2mm allows an easy finding of the laser beam. The ZRB90 Basic Receiver works up to 300m and runs from the power supply of 2 x AA alkaline batteries. It complies with the high standard of IP66 and therefore allows working even in tough construction environments. The ZRB90 Basic works with all Zone Lasers as well as the ZEL400.

ZRP105 Pro

Top performance. Professional format with a detailed, multi-channel analog, dual display, supported by adjustable LED and audio signals. Build-in flash suppression. This receiver can be used for all Zone Lasers.

ZRD105 Digital

Best digital display technology, packed into a professional and robust housing. Fully featured for a top performance with precise results. Dual display, supported by adjustable LED and audio signals. Build-in flash suppression. This receiver can be used for all Zone Lasers.

ZRD105B

Combines the advantages of the ZRD105B with great new features that are available with the Zone 60DG. Beam Catching – find and align the beam by one key press. Beam Lock allows monitoring the beam. The ZRD105B can be used for the Zone60 DG.

Download Catalogue
