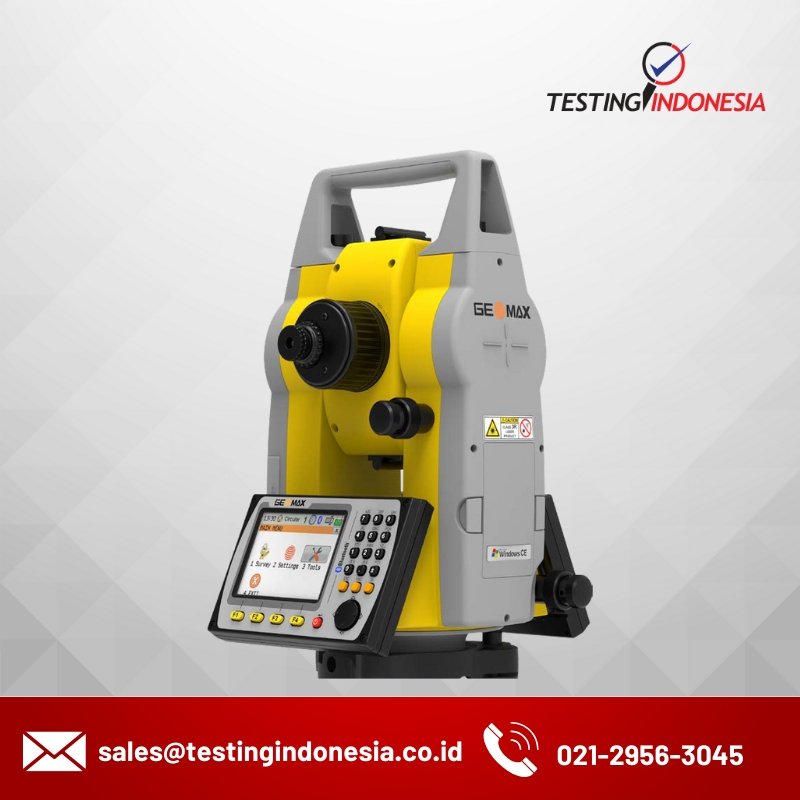

Zoom40 Series – Manual Total Station

Operate it your way, store it your way, process it your way! When flexibility counts the GeoMax Zoom40 Series is your choice

Category: Tags: ,

Description

Operate it your way, store it your way, process it your way! Running fully open Windows® CE allows you to operate the field software of your choice onboard the Zoom40 – Open WinCE® Series.

Featuring Microsurvey Field Genius, X-Pad, Carlson SurvCE or any localized field software, the Zoom 40 allows you to work the way that best fits your needs. With integrated Bluetooth® and the capability to connect to any tablet or data logger, the Zoom40 provides you highest flexibility. All this combined in a system offering a colour & touch display, long range non-prism measurement and all your favourite Windows® CE applications make the Zoom40 the total station that “works when you do.”

Totally open Windows® CE

Work the way you need to with an open WinCE platform that can integrate with third party developments and remote communication.

Onboard software flexibility

Choose what software works best for you fromGeoMax X-PAD, GeoMax FieldGenius and Carlson SurvCE.

Fully featured

The Zoom40 comes with a large 3.5“ Q-VGA display, 2 GB memory and 500 m non-prism range.

Colour touch display

Easily work in any environment when you can simply touch and select your functions with crystal-clear colour options.

Features

Onboard software flexibility • GeoMax X-PAD • GeoMax FieldGenius • Carlson SurvCE Totally open Windows® CE • Open WinCE platform • Open to all 3rd party developers • Open remote communication Fully featured • Large 3.5“ Q-VGA display • Large 2GB memory • 500m non-prism range

Spesification

The flexibility to run X-PAD, FieldGenius or Carlson SurvCE or any other localised field software onboard the Zoom40 with its high resolution graphical colour and touch display allows you to work in the way that best fits to your needs. Combined with the capability to measure long distances with high accuracy, you can be sure Zoom40 “works when you do.”
ANGLE MEASUREMENTS
Accuracy2” (0.6 mgon), 5” (1.5 mgon)
Display resolution1”
MethodAbsolute, continuous, diametrical
CompensationQuadruple axis
DISTANCE MEASUREMENTS
Prism3,500 m / 2 mm + 2 ppm
Non-prism500m / 2 mm + 2 ppm
Footprint 88 x 20 mm**
PHYSICAL SPECIFICATIONS
Weight6.12 kg (incl. battery & tribrach)
Operating temp. –20°C to 50°C***
Protection classIP54 dust and waterproof
Humidity95 %, non-condensing
INTERFACE
KeyboardFull alphanumeric, dual face (opt.)
Display3.5” Quarter-VGA colour touch screen (320x240 pixel), 10 lines x 30 characters, self heating, illuminated
Memory size Internal; 2GB
InterfaceUSB
Removable memoryUSB memory stick
BluetoothDevice Class 2
POWER SUPPLY
Internal batteryRemovable Li-Ion
Operating time***36 h (continous angle), 10h (continous distance measurement every 30s)
PLUMMET
TypeLaser point, adjustable brightness
Accuracy1.5 mm at 1.5 m instrument height
OPERATING SYSTEM
Microsoft®Windows CE
  * Optimal conditions to Kodak Grey Card (90% reflectivity)  ** At 50 m distance  *** at 25°C. Battery time may be shorter depending on conditions. All trademarks and trade names are those of their respective owners.
