Description

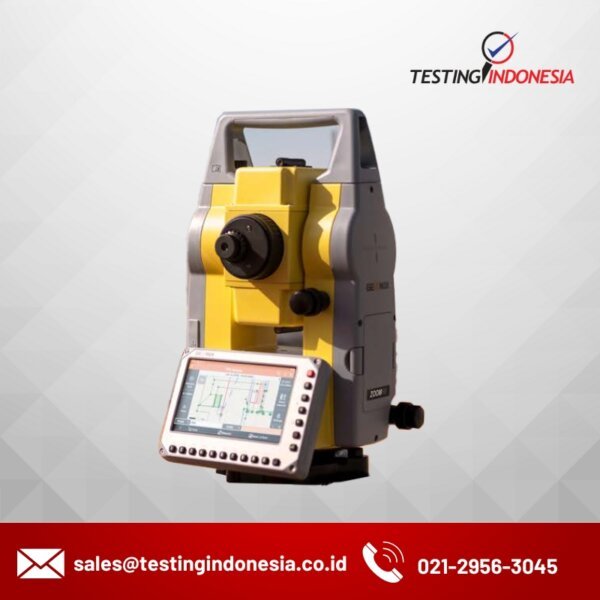

The Zoom45 is the go-to manual total station for construction surveyors and operator crews thanks to its fast point measurements, durability, and simple operation. Perfect for job sites, the robust Zoom45 runs X-PAD Ultimate field software on a large display, great for working with graphical tools to quickly complete layout tasks. Additionally, easily exchange data with the office via X-PAD 365 and continue working in the same software ecosystem, bringing an efficient digital dataflow to your work with manual total stations.
THE CHOICE FOR CONSTRUCTION SITES
The Zoom45 is tailor-made for construction surveying and layout, where measuring many points fast matters and working with digital data is key. With accuracy fit for construction layout tasks, a fuss-free and user-friendly interface, and full integration into the GeoMax ecosystem, the Zoom45 promotes productivity and efficiency, making it the smart choice for construction surveyors and crews.
LARGE SCREEN, HIGH PERFORMANCE
A large 5-inch colour touchscreen display and Android operating system makes the Zoom45 optimal for working with graphics in X-PAD Ultimate field software, helping you make get the most of visualisation tools for faster layout. Easy operation alongside durable quality means reliable, efficient work across sites and environmental conditions.
MANUAL MEETS DIGITAL WORKFLOWS
Use digital design and stakeout data on your Zoom45 or GeoMax field controller by connecting to X-PAD Ultimate field software and the X-PAD 365 cloud service. Benefit from a synced digital dataflow between the field and office that saves time and keeps your site work on track.
HIGH VALUE INVESTMENT
As an all-in-one manual total station, the Zoom45 offers accuracy, rapid point measurements, and a digital workflow, providing a strong value for your investment.
Spesification
The Zoom45 is the go-to manual total station for construction surveyors and operator crews, combining rapid point measurements, durability, and straightforward operation. An ideal companion for the construction site, the Zoom45 runs X-PAD Ultimate field software with a large screen for graphical views, enabling fast measurements and layout using the instrument alone or paired with a field controller. Additionally, easily exchange data with the office via X-PAD 365 and continue working in the same software ecosystem, bringing an efficient digital dataflow to your work with manual total stations.
| ANGLE MEASUREMENTS |
| Accuracy | 2” (0.6 mgon), 5” (1.5 mgon) |
| Display resolution | 0.1” |
| Method | Absolute, continuous, diametrical |
| Compensation | Quadruple axis |
| TILT |
| Compensation D | Dual axis |
| Compensation range ± | ± 8’ |
| DISTANCE MEASUREMENTS (PRISM) |
| Range | 5000 m |
| Accuracy | 2 mm + 2 ppm |
| Time (Fast/Standard) | 1.1 sec / 1.4 sec |
| DISTANCE MEASUREMENTS (NON-PRISM) |
| Range | 500 m |
| Accuracy | 3 mm + 2 ppm* |
| Time (Fast/Standard) | 1.1 sec / 1.3 sec |
| TELESCOPE |
| Magnification | 28x |
| Field of View | 1°30’ |
| Reticle Illumination | Yes, adjustable brightness |
| Laser Pointer | Laser dot size 12 x 24 mm @ 50 m |
| PHYSICAL SPECIFICATIONS |
| Weight | 5.1 kg (w/o battery and tribrach) |
| Operating- / storage temperature | -20° C to 50° C / -30° C to 55° C |
| Protection class | IP55 dust and waterproof rating |
| Humidity | 95%, non-condensing |
| POWER SUPPLY |
| Internal battery | Removable Li-Ion 6.4 Ah / 7.4 V |
| Operating time | Up to 8 h ** |
| INTERFACE |
| Keyboard | Full numeric; 18 keys; including 10 function keys; Face I standard, face II optional |
| Display | 5” WVGA 800 x 480 pixel, colour and touch with LED backlight |
| Ports | USB mini, USB host, Bluetooth and WLAN |
| SYSTEM AND DATA |
| Operating System | Android 11 |
| Memory (RAM) | 4 GB |
| Internal memory | 32 GB / 16 GB for user data |
| Data Transfer | USB device, Bluetooth, WLAN |
| LASER PLUMMET |
| Type | Laser point, adjustable brightness |
| Accuracy | 1.5 mm at 1.5 m instrument height |
* > 200 m: 5 mm + 3 ppm ** operating time depends on configuration (display illumination, active radios, distance measurement sequence) and conditions (temperature, age of battery)
