AQMS-3000-Micro-Air-Quality-Monitoring-System, menjaga kualitas udara industri

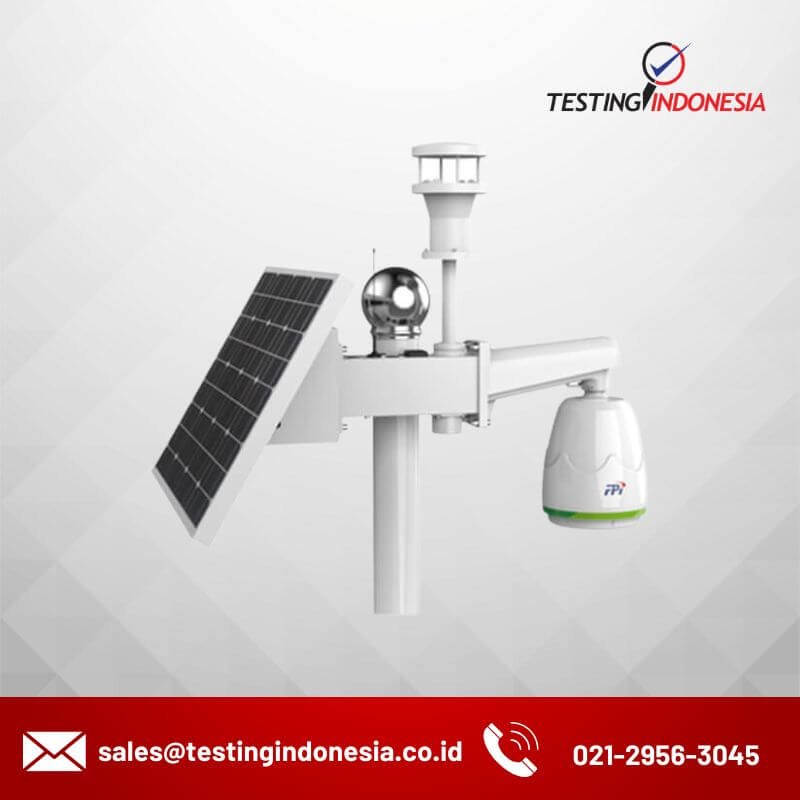

AQMS-3000 Micro Air Quality Monitoring System

Category: Tags: , , ,

Description

Micro AQMS gives a macro indication in terms of trend analysis against stationary AQI analysis. The micro AQMS is to find out the pattern of spatial pollution distribution during a certain period. These data support AQI results at the standard station, and most importantly, It gives a macro idea on municipal management.

Features

  • Customization on parameters according to customer requirement;
  • Simultaneous monitoring 10 parameters including PM10 and PM2.5;
  • 4G module enables remote control;
  • No consumables, long maintenance interval for minimal maintenance.
  • PreCalTM (Pre-calibration), FieldCalTM (Synchronize calibration) and OnTheFlyTM (Portable calibration) with internal temperature compensation to perform highest data validity.

Spesification

Parameter SO2, NO2, CO, O3, PM2.5, PM10, Temp,RH,Wind
PM Module Principle Light Scattering
Range 0~10mg/m3
Accuracy +_10%
Gas Module Principle Electro-Chemical
Range 0~500ppb; CO:0~50ppm
Time Reaolution 1min
Detectable Limite 5ppb; CO:0.04ppm
Other Operating Temp -20~60℃
Communication 2G/3G/4G and GPS positioning
