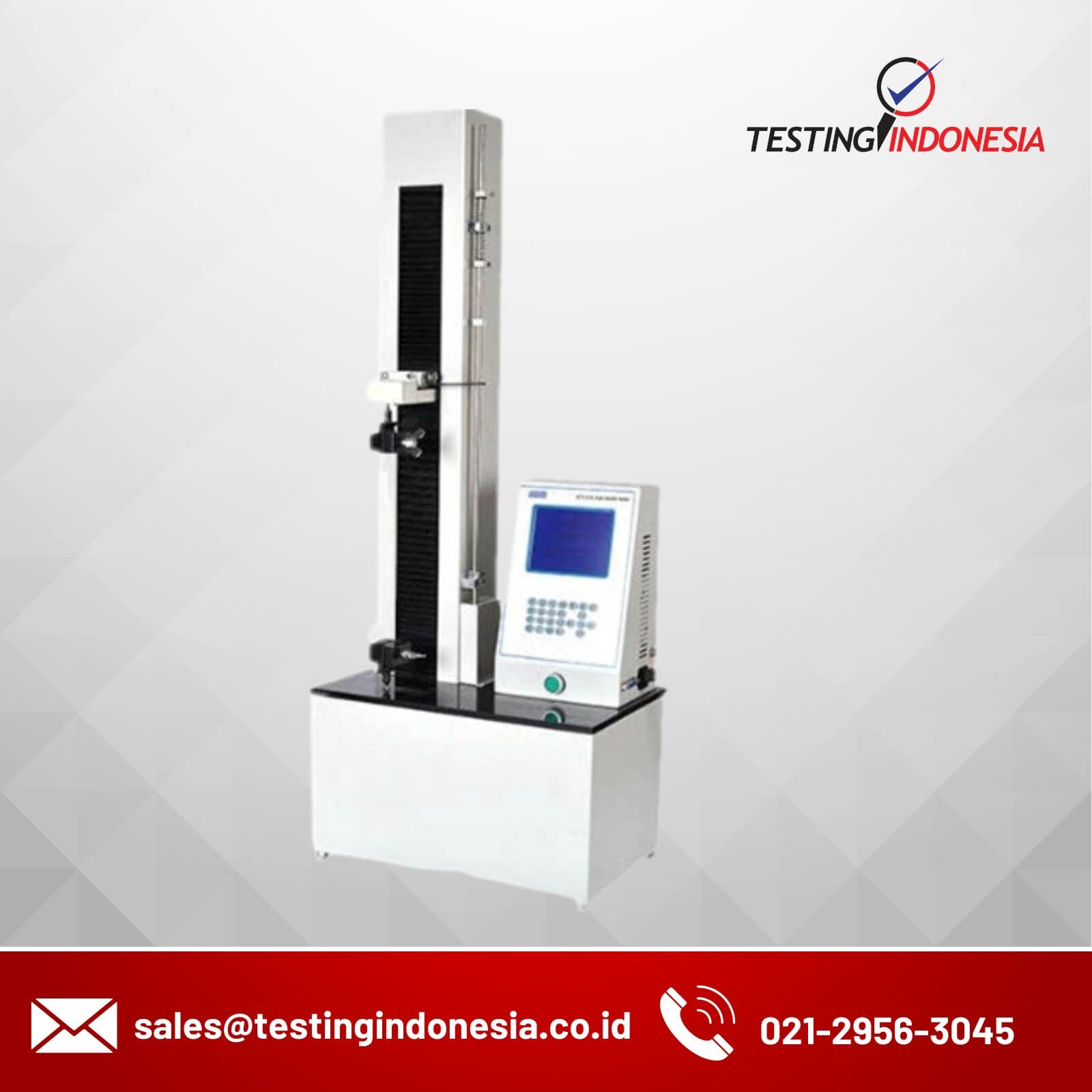

ATT-01A Auto Tensile Tester

Description

ATT-01A Auto Tensile Tester is applicable in the test of physical mechanical properties of plastic films, laminated materials,

adhesives, adhesive tapes, adhesive bandage (plaster), release paper, protective film, leather, rubber and paper fiber, etc.

It can perform the test items of tensile, peeling, deformation, tearing, heat seal, adhesive, open force, etc.



Please Note:

Pictures used are for illustration purposes only and may differ from the actual product received.

We are always dedicated to the innovation and improvement of product performance and function.

Therefore, technical specifications are subject to change without further notice.

Shinetime International and Leading Instruments reserve the rights of final interpretation and revision.

Characteristics

      * Minicomputer control; LCD display;

      * Multi-testing items, including tensile resistance, peeling strength, break force rate and peel force, etc.

      * Stepless adjustment of test speed can be achieved within the test 1-500mm/min

      * 3 kinds of testing data: Max. value, Min. value and average.

      * Group sample statistical analysis;

      * Functions of auto zero, error indication, overload protection and process protection.

      * RS232 interface;

      * Printer interface (mini-printer);

Technical Indexes

      Specification: 300N(optional:500N,1000N)

      Accuracy: ±1% of reading force

      Test Width: 50mm(Others can be customized)

      Stroke: 450mm

      Dimensions:450mm(L) x 300mm(B) x 1350mm(H)

      Power: AC 220V 50Hz

      Net weight: 78kg

Configuration

      Standard:mainframe, plane clamp, standard roller, test panel,

      Optional: sensor, mini-printer, communication cable, standard roller,

                      test panel, sample cutter, clamp of unwinding roller, non-standard clamp
