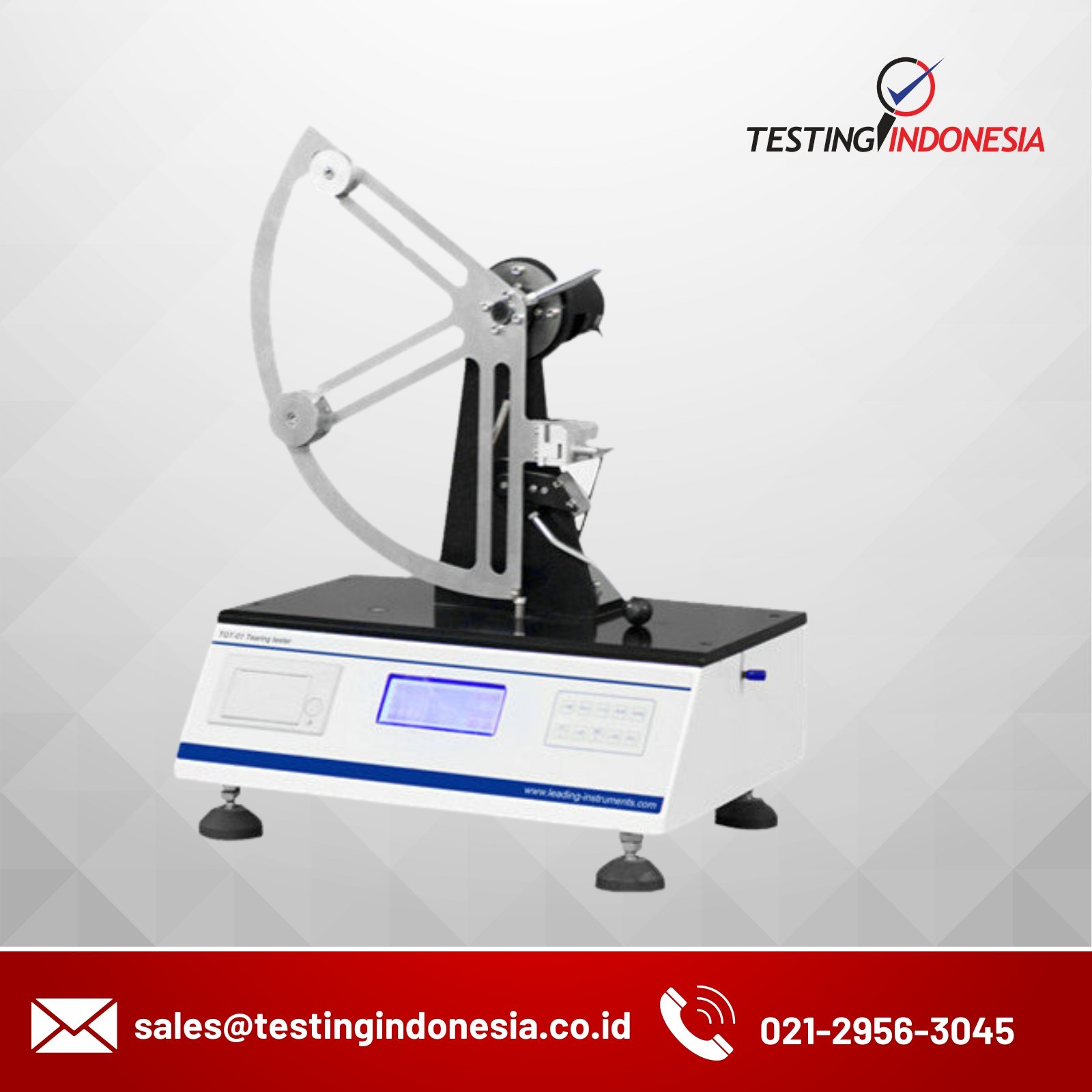

TGT-01 Tearing Tester


TGT-01 Tearing Tester is applicable in the tearing test of films, sheets, flexible PVC, PVDC, waterproof

films, woven materials, polypropylene, polyester, paper, cardboard, textile and non-woven, etc.

Please Note:

Pictures used are for illustration purposes only and may differ from the actual product received.

We are always dedicated to the innovation and improvement of product performance and function.

Therefore, technical specifications are subject to change without further notice.

Shinetime International and Leading Instruments reserve the rights of final interpretation and revision.


      * Automatic and electronic measurement;

      * Pneumatic specimen clamping and pendulum releasing;

      * Rapid force range selection;

      * Multiple capacities of pendulum;

      * Multi-testing units;

      * RS232 interface;


Lift the pendulum up to certain height, enable it to have a certain potential energy, pendulum tears the specimen while swinging down, computer calculates the decreasing energy caused by tearing so  as to obtain the needed force for tearing.

Technical Indexes

      Pendulum Capacities: 200gf, (400gf, 800gf, 1600gf, 3200gf, 6400gf)

      Gas Source Pressure: 0.6MPa (users provide gas source themselves)

      Gas Inlet: Ф4mmpolyurethane pipe

      Dimensions:480mm(L) x380 mm(B) x560mm(H)

      Power: AC 220V 50Hz

      Net weight: 23.5kg


ASTM D1922, ASTM D1424, ASTM D689, TAPPI T414, ISO 6383, ISO 1974


  • Standard:Mainframe, one basic pendulum, one augmenting weight, one check weight, communication cable, software
  • Optional:
  • Basic pendulum: 200gf, 1600gf
  • Augmenting weight: 400gf , 800gf ,3200gf ,6400gf
  • Check weight: 200gf, 400gf, 800gf, 1600gf, 3200gf, 6400gf, and sampling knife.
