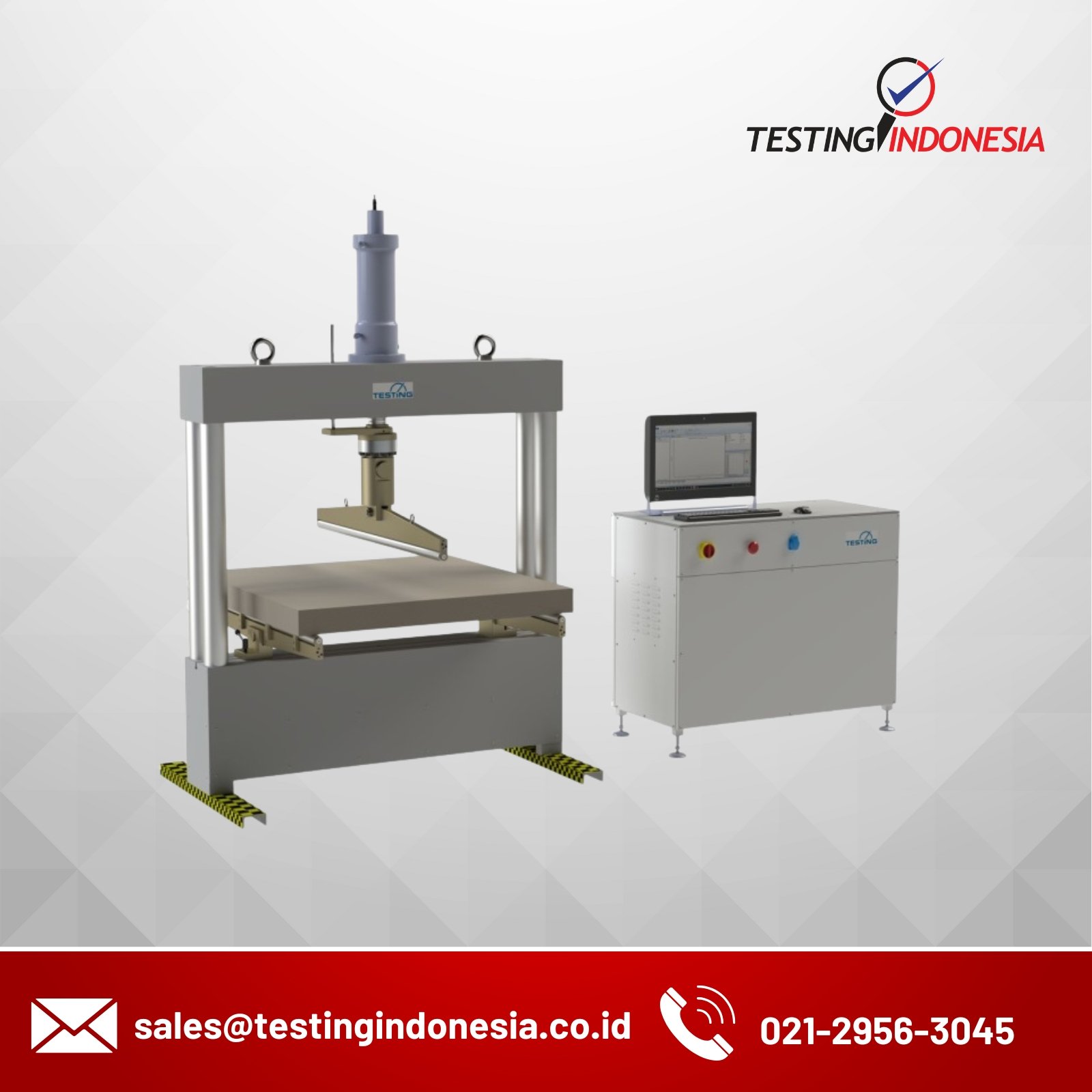

Bending Testing Machine 100 kN For Hardened Concrete, Concrete Beams, Slabs And Curbs


The flexure testing machine is suitable for flexural tensile strength testing of a wide variety of concrete specimens, such as concrete beams, curbs, concrete slabs, bricks, etc. The solid steel frame is extremely torsion-resistant, the columns are clamped without any play. A displacement measuring system can be optionally installed in the cylinder, allowing displacement and deformation controlled tests.

Norms: DIN EN 12390-5, 1339, 1340, ASTM C78, C293, C469, C496, C1019, C109/C109M

Other force ranges:
100 kN, 150 kN, 200 kN

Technical data

  • Frame type: 4-column
  • Force display range: 0 - 100 kN
  • Force measuring range: 1 - 100 kN, class 1
  • Stroke: 220 mm
  • Distance between columns: Front 900 mm / Side 800 mm
  • Bending roll length: 620 mm
  • Bending roll diameter: Ø 40 mm
  • Bending roll distance at the bottom: 80 - 840 mm


The testing machine is equipped with an impact-resistant, transparent polycarbonate test chamber made of polycarbonate.

Control Unit

Doli EDC provides fully automated experimental procedures with predetermined rate of loading force controlled tests (deformation and displacement controlled tests require further accessories). Automatic break detection.


  • Test frame: (W x D x H) = 1110 x 680 x 2000 mm
  • Weight: approx. 1000 kg
  • Control cabinet: (W x D x H) = 1200 x 570 x 1050 mm
  • Weight: approx. 280 kg
  • 3 ~ 400 V / 50 Hz / 1,1 kW
