compression-testing-machine-3000kN-with-all-welded-frame

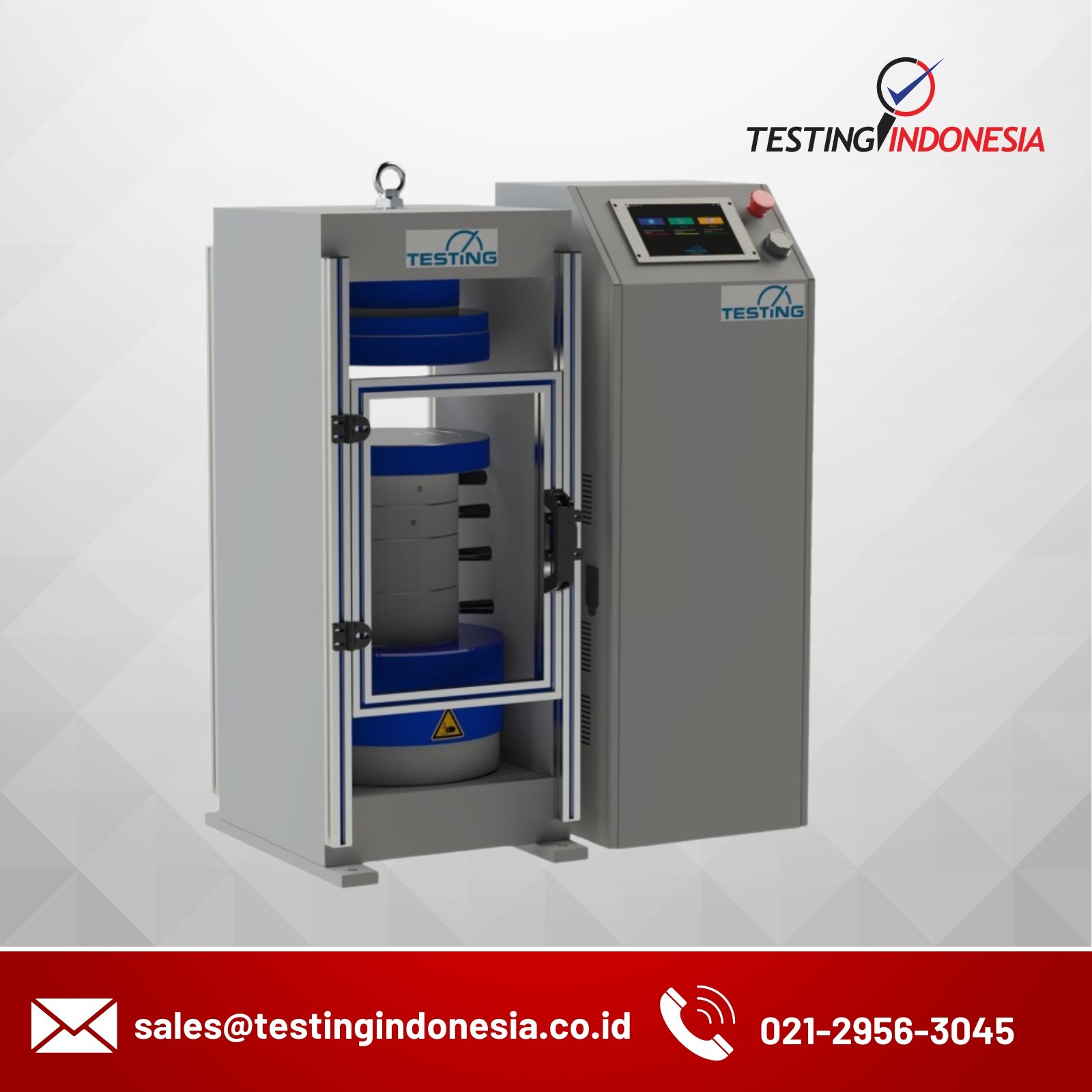

Compression Testing Machine 3000kN With All-Welded Frame

Category: Tags: ,

Description

Straintest version according to EN 12390-4. Accuracy class 1 according to DIN EN ISO 7500-1. Touch pad controller with digital display.
Standards: DIN EN 12390-3, 12504-1, 12390-6, 12390-13, 1338, 206, ASTM C39, C140, C1314, E4, AASHTO T22

Technical Data

  • Compression range: 100 - 3000 kN
  • Piston stroke: approx. 50 mm
  • Automatic Break detection inclusive
  • Saving of peak value
  • Platens-Ø: 300 mm
  • Distance between pressure plates: (max.) 370 mm

Scope of delivery

Distance pieces for cubes for 150 x 150 x 150 mm, 200 x 200 x 200 mm and cylinders dia. 150 / 300 mm.

Dimensions

  • (W x D x H) = 880 x 550 x 1200 mm
  • Weight: approx. 1380 kg
  • 230 V / 50 Hz
