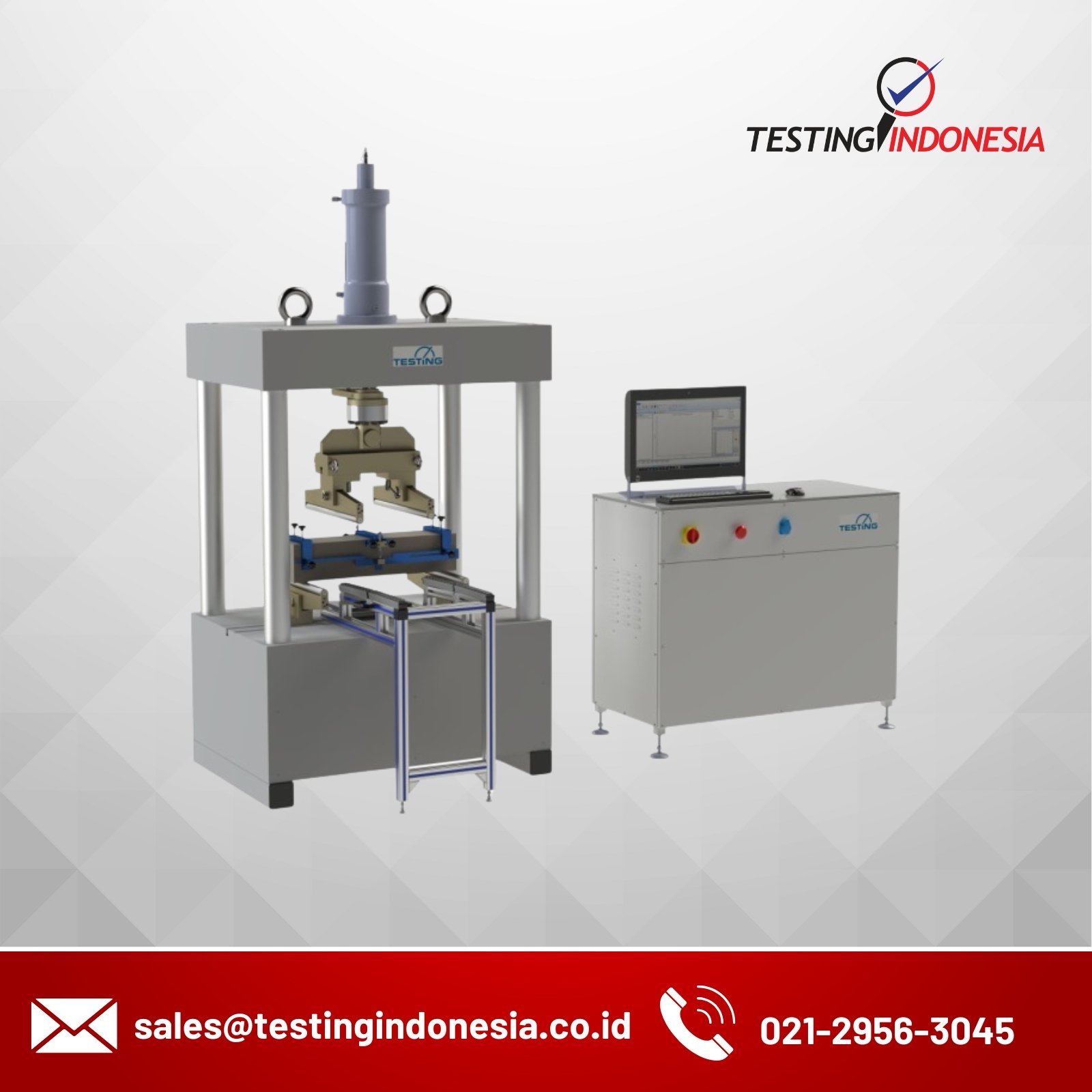

Bending testing machine 300kN


The bending testing machine is suitable for bending tensile strength tests of various steel fibre concretes, concrete beams and shotcrete. A position measuring system is installed in the cylinder by default. The massive steel frame is extremely stiff, the columns are tensioned without any play. High accuracy class 1 according to DIN EN 7500-1 in a very wide measuring range.

Norms: DIN EN 12390-5, 1339, 1340, ASTM C78, C293, C469, C496, C1019, C109/C109M

Other force ranges:
22.1403.S1-SV-i20: 100 kN
22.1402.S1-SV-i20: 200 kN


  • Frame type: 4-column frame
  • Force display range: 0 - 300 kN
  • Force measuring range: 3 - 300 kN, class 1
  • Stroke: 250 mm
  • Distance between columns: Front 960 mm / Side 610 mm
  • Bending roll length: 510 mm
  • Bending roll diameter: Ø 30 mm
  • Distance between upper bending rolls: 75 - 340 mm
  • Distance between lower bending rolls: 70 - 1020 mm

Control Unit

Doli EDC provides fully automated experimental procedures with predetermined rate of loading, force controlled tests (deformation and displacement controlled tests require further accessories), automatic break detection.


A large area of the testing machine can be equipped optionally with an impact-resistant, transparent test room protection made of polycarbonate.


  • Test frame: (W x D x H) 1200 x 850 x 2450 mm
  • Weight: approx. 4300 kg
  • Control cabinet: (W x D x H) 1200 x 570 x 1040 mm
  • Weight: approx. 350 kg
  • 3 ~ 400 V / 50 Hz - 1.5 kW
