Compression Load Cell with Digital Readout


Applied Measurements DSCC compression load cell with digital readout is a complete, on-site, handheld, compression measuring system.  It is supplied ready calibrated to UKAS traceable standards with a 7 digit LCD high accuracy display, enabling you fast, portable, compression monitoring.

Thanks to the DSCC load cell’s low profile design and the compact size of the TR150 handheld digital readout, the compression load cell with digital readout system is ideal to use where space is limited.

The compression load cell with digital readout system comes with an IP65 dust-tight and splash-proof protection making it suitable for most industrial environments.

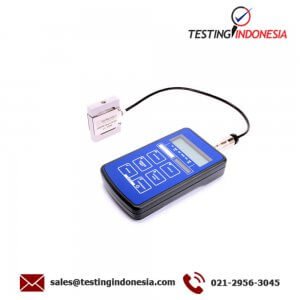

This complete system can measure both tension and compression and in both weighing and force measurement applications. However, if you would prefer an s-type tension and compression load cell instead, see our S-type load cell with display.

Thanks to Applied Measurements DSCC compression load cell’s stainless steel construction and high-frequency response, it is an ideal system for dynamic force and load measurement applications such as crash test walls.  Plus, the DSCC compression load cell has a dual-diaphragm design and central threaded through-hole so bending, off-axis, side-load/shear loads and torsion errors are kept to a minimum.

The TR150 handheld 7 digits LCD digital readout is high resolution and protected to IP65 dust-tight, splashproof rating.  It features peak & trough capture, display update rates up to 25Hz, display hold/freeze, shunt calibration and optionally an RS232 serial data output.  Its integrated TEDS (Transducer Electronic Data Sheet) functionality delivers faster calibration options with the integrated TEDS chip.

The DSCC compression load cell can be completely customised with alternative threads, custom dimensions, counter-bored mounting holes, protection ratings of IP67 and IP68 submersible and higher capacities in excess of 5000kN possible.


  • Load Cell Capacities: 0-5kN up to 0-1000kN
  • Load Cell Output: 2mV/V
  • High Accuracy Load Cell: <±0.05%/RC
  • 7-Digit LCD Display (±9999999)
  • 2 Ranges / Engineering Units
  • Optional RS232 Serial Data Output
  • Integrated TEDS (IEEE1451, Template 33)
  • IP65 Environmental Protection



DSCC Dimensions

DSCC Outline
[table “” not found /]

All dimensions are in mm

TR150 Dimensions

TR150 Handheld Load Cell Indicator Outline Drawing
