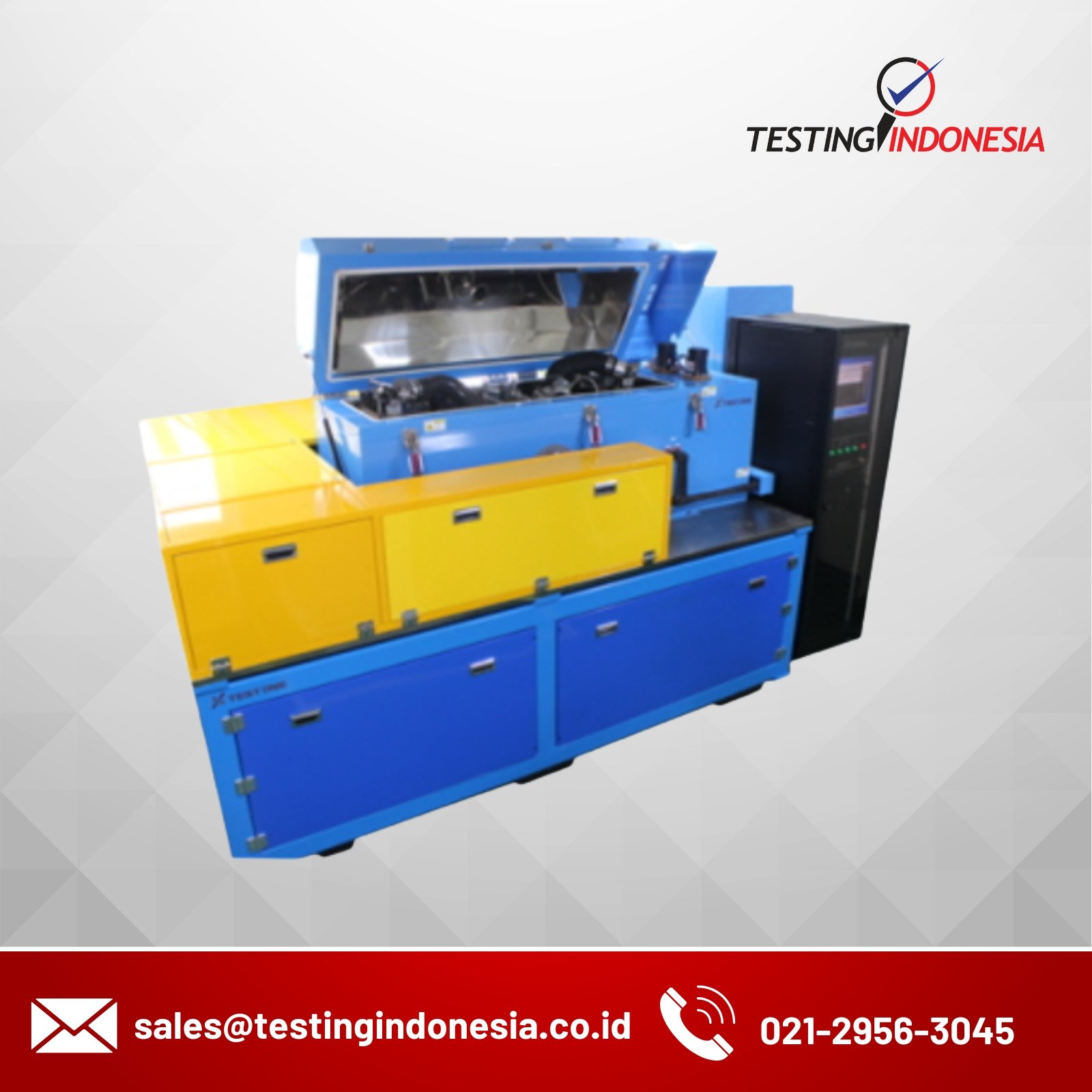

DTR Machine – TO-D100


  • This tester is to evaluate a durability of vehicle exhaust hose.
  • The multi-axis control are implemented as a vehicle condition.
  • It can be tested in different environmental conditions, and it is also possible the pressure inside the hose and temperature control


Capacity3 kgf
Test speed0.1 ~ 60 Hz
Number of test0~10,000,000 cycle
Amplitude of vibration±0.1 ~ 15 mm
Amplitude of resolution0.01 mm
Control accuracy ±0.1 % F.S
MotorAC Servo Motor
MethodCAM Driving system
Power220 V 2 P
WeightApprox. 200 kg
