Reaching out to the stars…

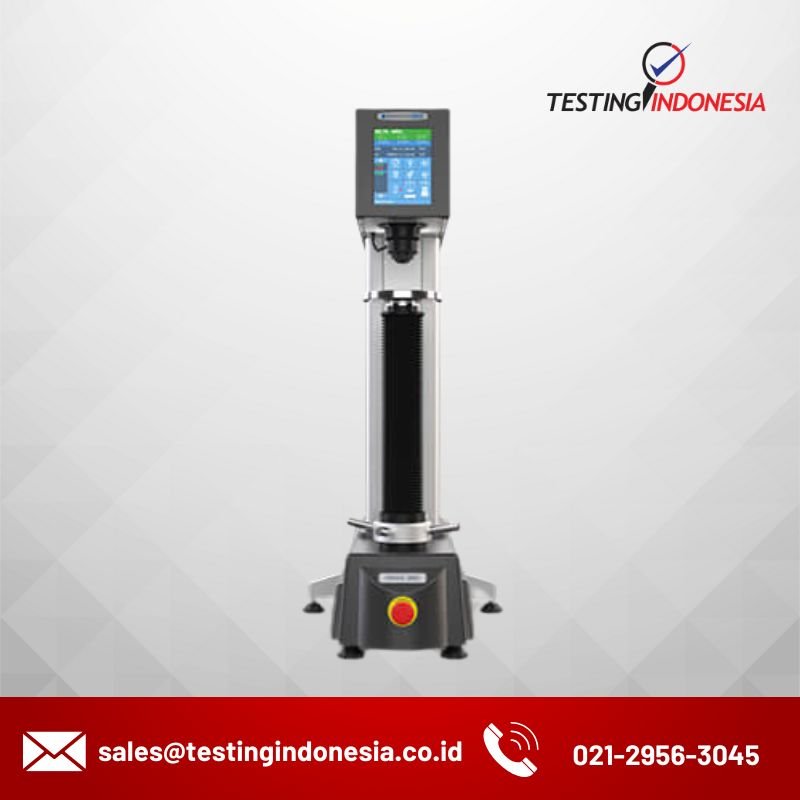

The XL version of the FENIX range combines all the specifications of the standard 300RS model with a much taller work space. The test height available on this model can be used for both Rockwell scales as well as for the Brinell


Scales: Rockwell, Superficial Rockwell & Brinell (optional) Test forces: 3, 10kgf pre-load, 15, 30, 45, 60, 100, 150kgf main load; 3kgf pre-load, 15, 30, 45kgf main load All Brinell test forces from 1kgf -250kgf (optional). Automatic, Load cell, closed loop, force feedback Load app. system: Meets or exceeds the requirements of ASTM and ISO Display: 6.5” industrial full color touch screen Software: i-Touch software system, advanced tester control Memory: 150 readings Output: USB Illumination: Integrated power LED test spot illumination Bottom Shell: Replaceable ABS bottom cover avoids body damage. Workpiece Acc: 470 mm (H) X 150mm (D)
