Flaw Detector A1525 SOLO

Category: Tags: , , , , ,

Description

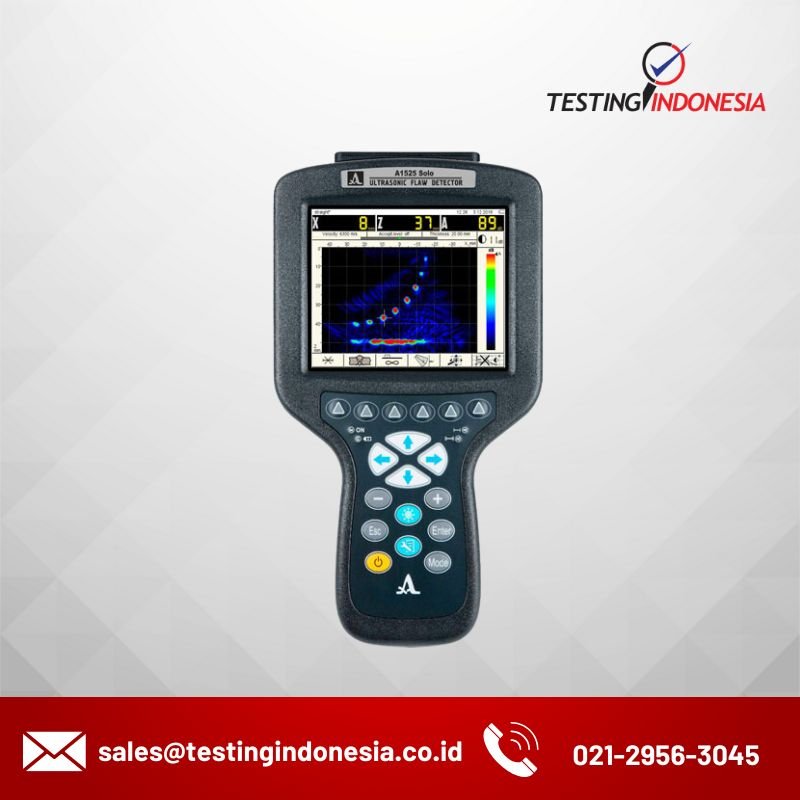

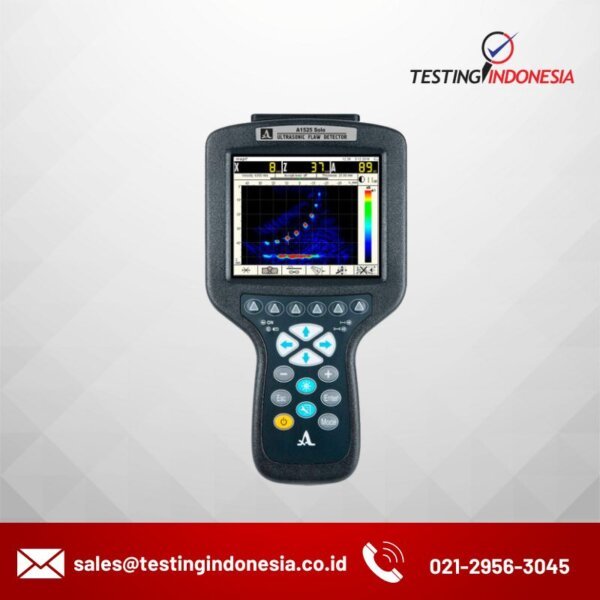

A compact, ergonomic and easy to handheld Phased Array unit based on Total Focusing Method for easy-going imaging of inspection objects with two-dimensional and three-dimensional visualization and evaluation of inspection results.

The instrument has ultra-compact design and is performed in lite-weight shockproof plastic housing. 800-gram weight allows one hand operation in hardly accessible locations. The Multi-SAFT image reconstruction technology offers unique flaw detection capability and extraordinary spatial resolution. Additional imaging and analysis functionality is provided by included INTROVIEW visualization software.

The instrument is equipped with two phased array transducers suitable for most of the regular ultrasonic weld testing. Additional transducers can be purchased for casting and forging inspection.

Spesification

Phased Array data processing techniqueTotal Focusing Method
Number of array elements / channels16
Operation frequencies1,0; 1,8; 2,5; 4,0; 5,0; 7,5; 10 MHz
Dynamic range100 dB
Display resolution / type640 x 480 / TFT
Operation time with battery, not less than5 h
Dimensions of the electronic unit260 x 166 x 80 mm
Weight of the electronic unit0.8 kg
Operation temperature-10 to +55 ºC

Application

A1550 Solo covers most of the regular metal inspection tasks, such as:

  • Manual and semi-mechanized ultrasonic weld testing including B, C & D-Scan visualization and 3D imaging (by purchasing ACS pipe scanner)
  • Testing of small-diameter pipes
  • Testing of casting and forging parts
  • Tomographic visualization of the inspection volume and accurate flaw sizing

Delivery Kit

NameQuantity, pcs.
A1525 Solo – TFM – phased array flaw detector1
Antenna array M9065 (4 MHz shear wave, pitch 2.5 mm)1
Antenna array M9170 (4 MHz shear wave, pitch 1.6 mm)1
Net adaptor with cable 110/220V-15V / USB A - Micro B cable1
Ultrasonic Couplant, bottle 4 oz.1
Hard case M20 / Soft cover D121
