HTT-01-Hot-Tack-Tester

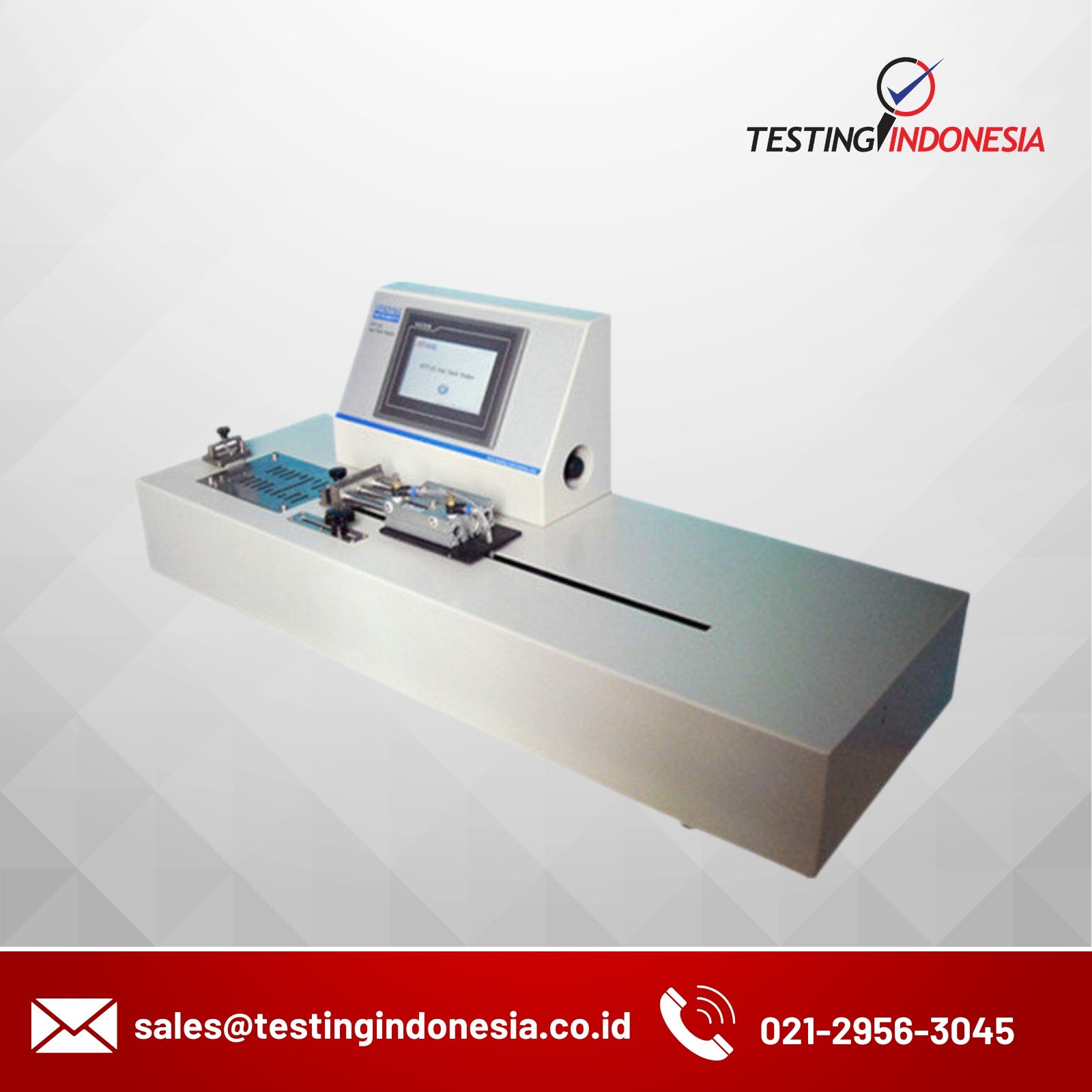

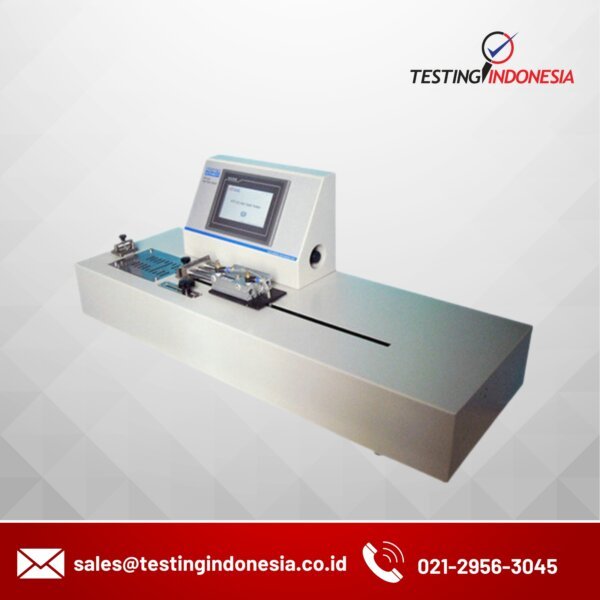

HTT-01 Hot Tack Tester

Category: Tags: ,

Description

HTT- 01 Hot tack tester is applicable in hot tack property test for plastic film, laminated film

and other packaging film. Meanwhile, it is applicable in peel, shear, tension and other test items

for adhesive, adhesive tape, laminated film, plastic film, paper and other flexible materials.



Please Note:

Pictures used are for illustration purposes only and may differ from the actual product received.

We are always dedicated to the innovation and improvement of product performance and function.

Therefore, technical specifications are subject to change without further notice.

Shinetime International and Leading Instruments reserve the rights of final interpretation and revision.

Charateristics

      * Micro-computer control, digital display, PVC operation board;

      * 4 testing functions of hot tack, hot seal, peeling and tensile resistance;

      * Digital P.I.D temperature control system;

      * 4 force testing range;

      * 6 testing speeds;

      * Two start modes of manual and foot pedal;

      * Automatic zero, error alert, overload protection and stroke protection.

      * RS232 port;

Technical Indexes

  • Seal Temperature: room temperature~250ºC
  • Temp. Control Accuracy: ±0.2ºC
  • Dwell Pressure: 0.05MPa~0.7MPa
  • Dwell Time: 0.1s~999.9s
  • Delay Time: 0.1s~999.9s
  • Load Cell Range: 0-200N (optional: 30N 50N 100N)
  • Accuracy: ±1% of reading force
  • Resolution: 0.01 N
  • Test Speed: 100  150  200  300  500 and Hot Tack  (mm/min)
  • Heat Type: single heating or double heating (also made to order)
  • Specimen Width:15mm,25.4 mm. Or25 mm(Optional, also made to order)
  • Stroke:500 mm
  • Gas Source Pressure: 0.05MPa ~ 0.7MPa (Users provide gas sources themselves)
  • Power: AC 220V 50Hz
  • Net weight:45kg

Standards

ASTM F1921, ASTM F2029

Configurations

Standard: Mainframe, footswitch, hot tack clamp, calibration frame Optional: software, communication cable, non-standard seal jaws, test board, Welding Cloak, non-standard jaws, sample cutter, non-standard specimen fixture
