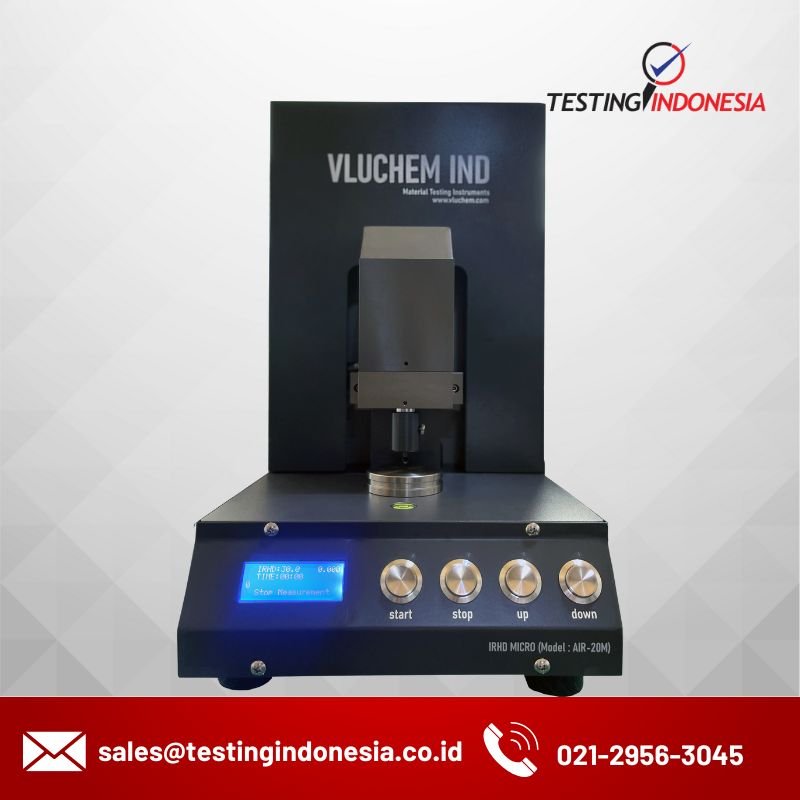

IRHD Hardness Tester – Full Automatic System

Description

The international hardness test is based on measurement of the penetration of a rigid ball into the rubber specimen. The hardness is obtained by the difference in penetration depth of a specified dimension ball under conditions of contact with a minor force and with a major force. The differential penetration is taken at a specified time and converted to a hardness scale value. It’s performed according to ASTM D 1415, KS M ISO 48 and ISO 48.
The Vluchem’s IRHD-Micro is a full automatic instrument which is far from operator’s influences and rubber material, polymer such as o-ring, oil seal and various molded final goods.

Features

  1.  AIR-20M
  2. Resolution 0.1 IRHD
  3. Min. Test Thickness 1 mm
  4. Data Excel Export Function
  5. ERP System (Option)
  6. Ce Certification

Spesification

Test Method IRHD Micro
Resolution 0.1 IRHD
Indenter Ø 0.397
 Total force on ball  153.3mN ± 1.0
Minor force 8.3 mN ± 0.5
Major force 145 mN ± 0.5
Force on foot 235mN ± 30.0
Measuring range 30 ~ 100
Power210~240V, single phase 50/60Hz
Display  Color LCD graphic
Data Output Graph, Test results, Single test and multi test available
Hardness trend graph, test results pass/fail
Tolerance limits, Time, Data excel export function
RS 232C Cable, 9600 Baud
Measuring Time30 ~ 999, Default 30 sec
Dimension250 X 310 X 440 mm / 16 Kgs
