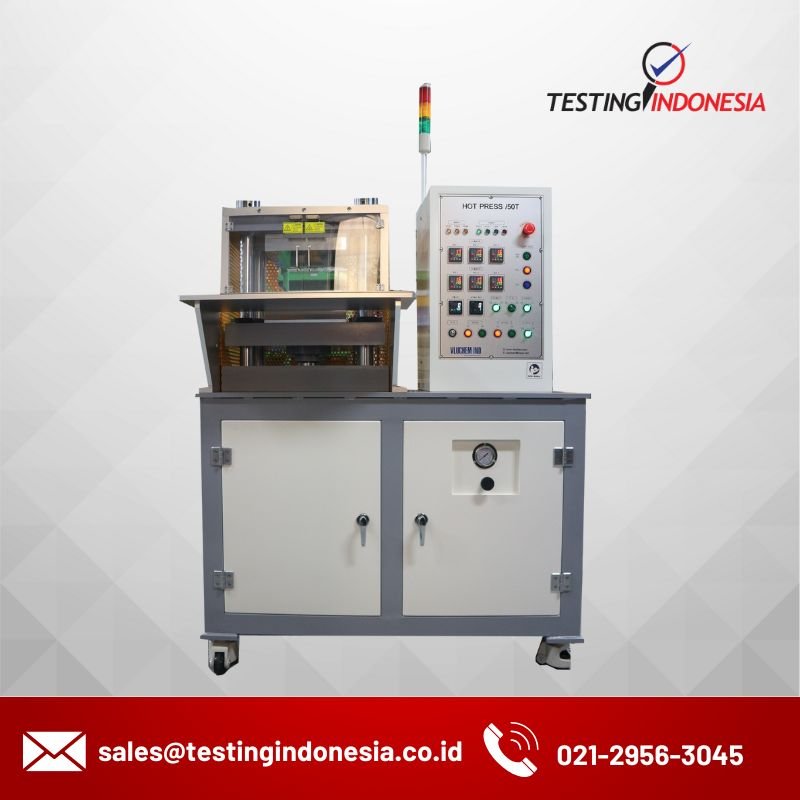

Lab. Press

Description

The Vluchem’s laboratory hydraulic press is designed for rubber sample preparation and is operated fully automatically by hydraulic pressure.

Useful use in laboratory
Modern Design
Heating Plate size – 300 x 300 mm
Accuracy PID Temperature control 6 different position
Digital Setting and Display system
Oil Gauge -2 different position
Remove air – automatic
Control Curing Time by digital
Reliable Products
Buzzer
4 different status lights
Emergency button
Work table for sample mold, front of instrument
Available full automatic operation and Manual operation

Specification

Main Body Powder coating
Capacity 50 Tons
Heating Plate 300 mm x 300mm
Stroke 200mm
Temperature Range RT ~ 300oC PID controller Validity ± 1oC, Digital Setting and Control
Temp. Accuracy ± 0.1 at 100 oC
Timer 6 digit
Heating Capacity 16kW
Power AC 380V, 3 phases, 50/60 HZ
Weight Appro. 250kgs
