Miniature Load Cell with Display

Description

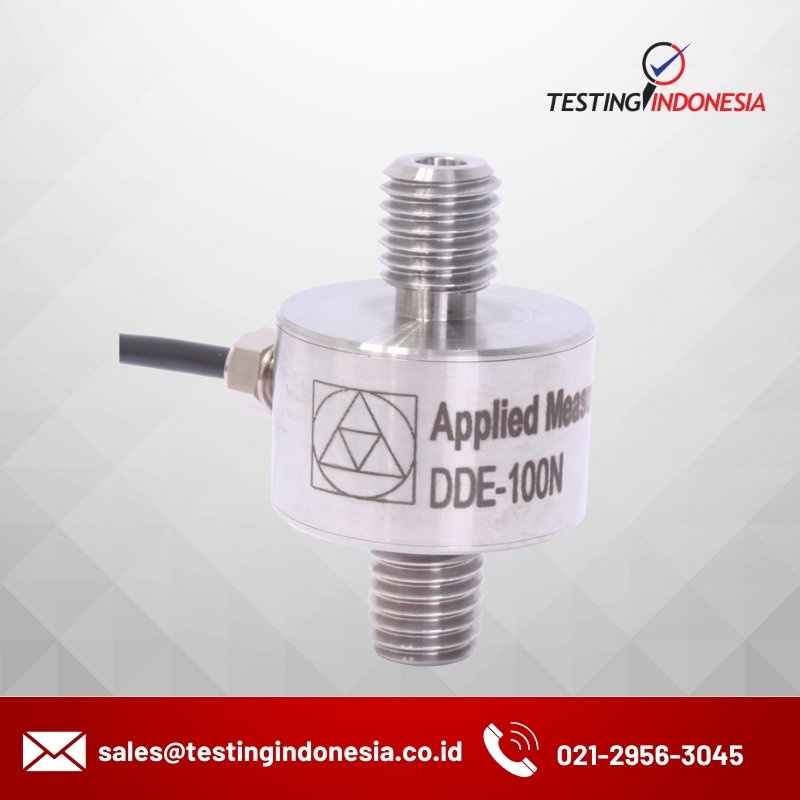

Applied Measurements DDE miniature load cell with display is a complete, desktop, tension and compression measuring system. It is supplied ready calibrated, to UKAS traceable standards, with an Intuitive4-L 6 digit LED high accuracy display to give you high precision tension and compression measuring.

The DDE in-line miniature load cell with display is ideal to use where space is limited, thanks to the DDE load cell’s integral mounting threads which make them ideal to use where other in-line load cells such as S-beams cannot fit.  Ideal applications include automotive production, cable tension monitoring and suspension force monitoring.

Both the DDE in-line load cell and INT4-L digital display come with an IP65 dust-tight and splash-proof protection (once installed) making it suitable for most industrial environments. If you require an underwater in-line load cell instead, we can supply our DDEN submersible IP68 rated load cell which is O-ring sealed and fully submersible for long-term immersion.  The DDEN submersible load cell is also compatible with the INT4-L display.

Applied Measurements miniature load cell with display can be customised to suit your application, thanks to the DDE miniature load cell and INT4-L intuitive display’s customisation options.  The INT4-L digital display has a modular construction with various alarm relays, display colours and outputs depending on your needs.  Plus, the DDE load cell can be supplied with different thread sizes, specific dimensions and capacities.

DDE In-Line Miniature Load Cell Dimensions

DDE miniature in-line load cell outline drawing

Intuitive4-L Digital Indicator Dimensions

Intuitive4-L digital display outline

Features

  • Load Cell Capacities: 0-100N up to 0-50kN
  • Load Cell Output: 2mV/V
  • Accuracy: <±0.30%/RC
  • Integral Mounting Threads
  • 6-Digit LED Display (±999999)
  • 10 Point Linearisation Optional
  • IP65 Environmental Protection

Spesification

CAPACITY (N)
A
B
C
D
Deflection mmResonant Frequency kHz
100501520M120.100.53
250501520M120.100.84
500501520M120.071.42
1000501520M120.052.37
2500501520M120.034.84
5000501520M120.028.39
100005012.525M120.0413
200005012.525M120.0418
50000561820M160.0325
