Description
Easy Balancing Feature
Grinding balancing with 2 or 3 counterweights
Graphic interface with real time correction
Balancing report

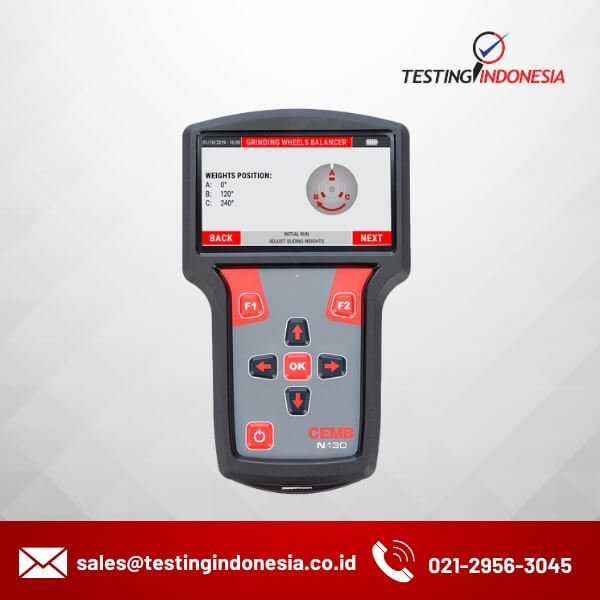

N130-GL Vibrometer and grinding wheels Balancer
Portable Vibrometer and grinding wheels Balancer with 4,3″ graphic display
N130-GL Portable Vibrometer and grinding wheels Balancer
The smart solution for grinding wheels machine
Heavy duty instrument, quick&Easy to use
Technical Data
| GENERAL CHARACTERISTICS | Color Display 4,3” TFT LCD (480 x 272 pixel) New EasyClick tactile keyboard with embossed keys |
| MEASUREMENT TYPES | Effective value (RMS) Peak value (Pk) Peak-to-peak value (PP) |
| MEASURING PERFORMANCE | Bandwidth: 1-10 KHz FFT Resolution: Max 3200 lines Tacho: Up to 250000 rpm |
| UNITS OF MEASUREMENT | Acceleration: [g] Velocity: [mm/s] or [inch/s] Displacement: [μm] or [mils] Frequency: [Hz] or [Cpm] |
| INPUT | 1 measuring channels IEPE sensor, accelerometer and velocimeter (with a specify cable pluggable on a BNC for read any dinamic signal max. 5V-PP) 1 photocell channel (velocity and angle reference) 1 MicroUSB 2.0 port for data transfer 1 jack plug for battery charger |
| AMBIENT | Temperature: from -20° to +70° C Air humidity: from 0 to 95% without condensate Protection: IP54 |
| POWER SUPPLY | Long Life Battery: > 8 hours based on typical use Charging time: 2,5 hours for 80% recharge 4 hours for 100% recharge Rechargeable 3100 mAh Lithium battery Power supply-battery charger for 100-240 V, 50/60 Hz (24 V, 1.5 A) |
| CARRYING CASE DIMENSIONS AND WEIGHT | Approx. 370(L) x 300 (H) x 115(D) 1800 g |
