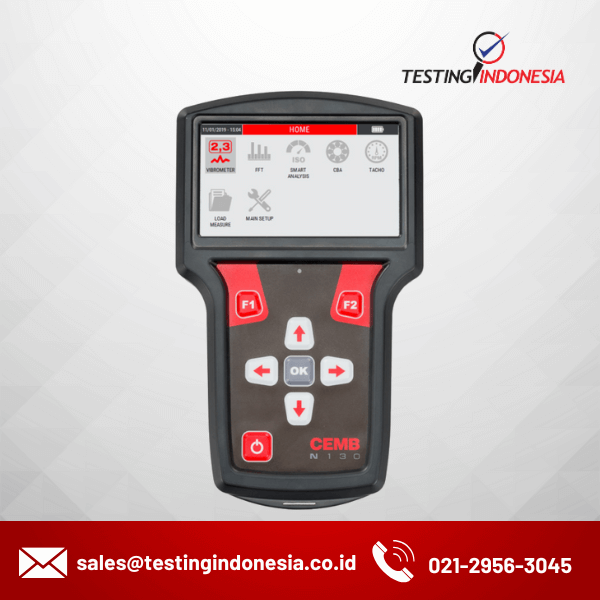

N130 Vibrometer

Single Channel Portable Vibrometer and Machine Analyzer with 4,3″ graphic display – Vibration and Smart Analysis up to 10 KHz

Portable Vibrometer , Machine analyser, Spectrum analyser

The smart solution for vibration analysis

Heavy duty instrument, quick&Easy to use

Description

Smart Analysis Feature

  • Machine troubleshoot at a glance
  • Vibration root cause identification
  • Step by step according ISO10816-3
  • Automatic speed detection

4.3” color graphic display

Very high luminosity and contrast for sunlight use
Wide view angle

Enhanced click keyboard

Optimal tactile feedback
Designed for gloves use

Big memory space

14.8 GByte, expandible to 128 GByte
1000+ measures for each type

Technical Data

GENERAL CHARACTERISTICSDisplay a colori 4,3” TFT LCD (480 x 272 pixel) Nuova tastiera tattile EasyClick con tasti in rilievo Memoria interna: 14,8 Gb (espandibile a 128Gb) Interfaccia utente multi lingua
MEASUREMENT TYPESEffective value (RMS) Peak value (Pk) Peak-to-peak value (PP)
MEASURING PERFORMANCEBandwidth: 1-10 KHz FFT Resolution: Max 3200 lines Tacho: Up to 250000 rpm
UNITS OF MEASUREMENTAcceleration: [g] Velocity: [mm/s] or [inch/s] Displacement: [μm] or [mils] Frequency: [Hz] or [Cpm]
INPUT1 measuring channels IEPE sensor, accelerometer and velocimeter (with a specify cable pluggable on a BNC for read any dinamic signal max. 5V-PP) 1 photocell channel (velocity and angle reference) 1 MicroUSB 2.0 port for data transfer 1 jack plug for battery charger
AMBIENTTemperature: from -20° to +70° C Air humidity: from 0 to 95% without condensate Protection: IP54
POWER SUPPLYLong Life Battery: > 8 hours based on typical use Charging time: 2,5 hours for 80% recharge 4 hours for 100% recharge Rechargeable 3100 mAh Lithium battery Power supply-battery charger for 100-240 V, 50/60 Hz (24 V, 1.5 A)
CARRYING CASE DIMENSIONS AND WEIGHTApprox. 370(L) x 300 (H) x 115(D) 1800 g

Size

Catalogue

DATA-SHEET-N130_EN Testingindonesia
N130-MANUAL_EN-Rev01 Testindindonesia
N130-N330-QUICK_GUIDE_EN testingindonesia
