Description
TIME3100 (TR100) is a pocket and easy to use Ra-Rz surface roughness measuring equipment. It features with two screens: on in front and the other on top for convenient reading. The calibration is simple.

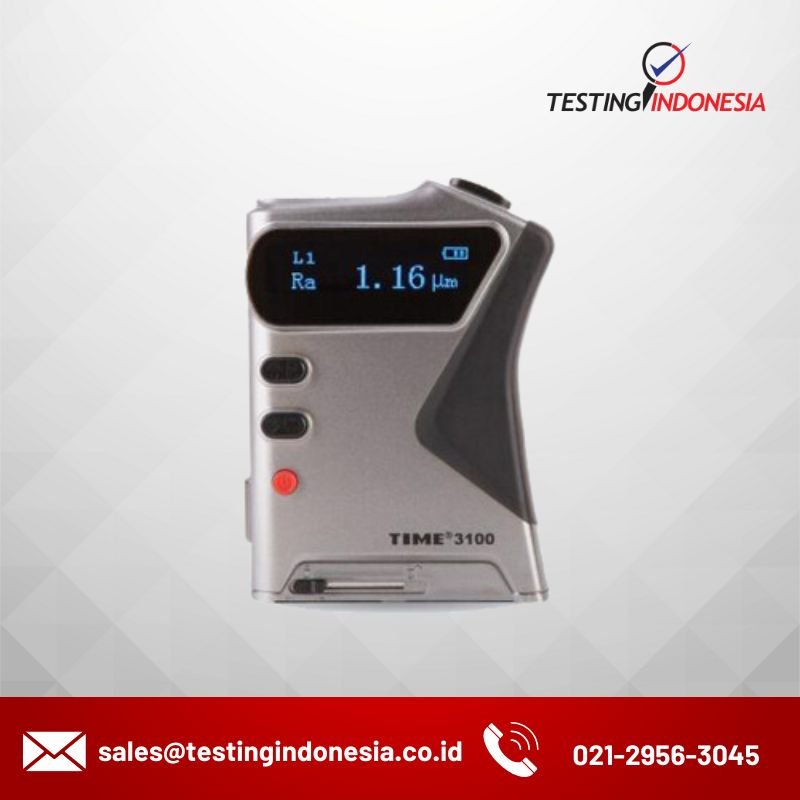

Pocket Surface Roughness Tester TIME®3100 (TR100)
TIME3100 (TR100) is a pocket and easy to use Ra-Rz surface roughness measuring equipment. It features with two screens: on in front and the other on top for convenient reading
Spesification
| Roughness parameter | Ra, Rz |
| Measuring range(µm) | Ra: 0.05-6.5 Rz: 0.1-50 |
| Cut-off lengths(mm) | 0.25, 0.8, 2.5 |
| Evaluation lengths(mm) | 1.25, 4.0, 5.0 |
| Tolerance | ±15% |
| Repeatability | < 12% |
| Power | 3.7 V Li battery |
| Operating temperature: | 0~40℃ |
| Humidity: | < 90% |
| Dimension (mm) | 116 x 86 x 30 |
| Weight (g) | 200 |
