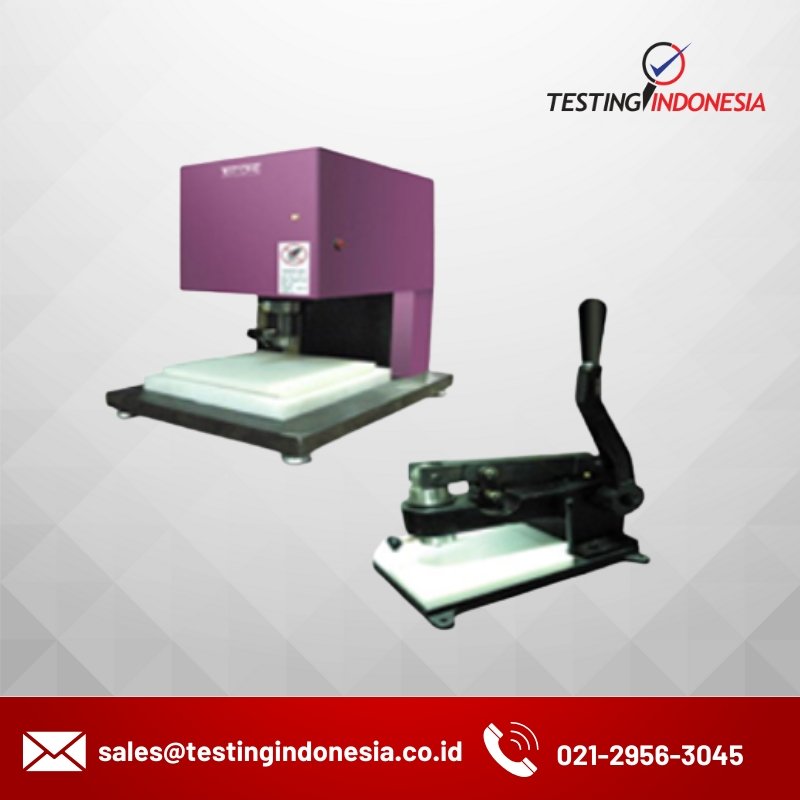

Sample Cutting Machine

Description

Model Name : TO-150j, 150N

Features

  • The Cutters are korean, Japanese blade combination that in the following models. DUMBBELL(Japan) /SDMP - 1000 /SDBK-1000 SDK-100,200,300,400,500,600/SDMK-1000,100S,100L (Specimens JIS K 6251,6252,6301,6402,6783,7113)

Spesification

Model TO-150J TO-150N
Type Manual Type Pneumatic (Air) Type
Cutting Stroke Approx. 18mm Approx. 30mm
Cutter Connection Ø25 (Female)
Specimen Stage 195 x 195 26 mm (P.E Plate)
Dimension  280 x 410 x 570mm
Weight Approx. 50 kg
