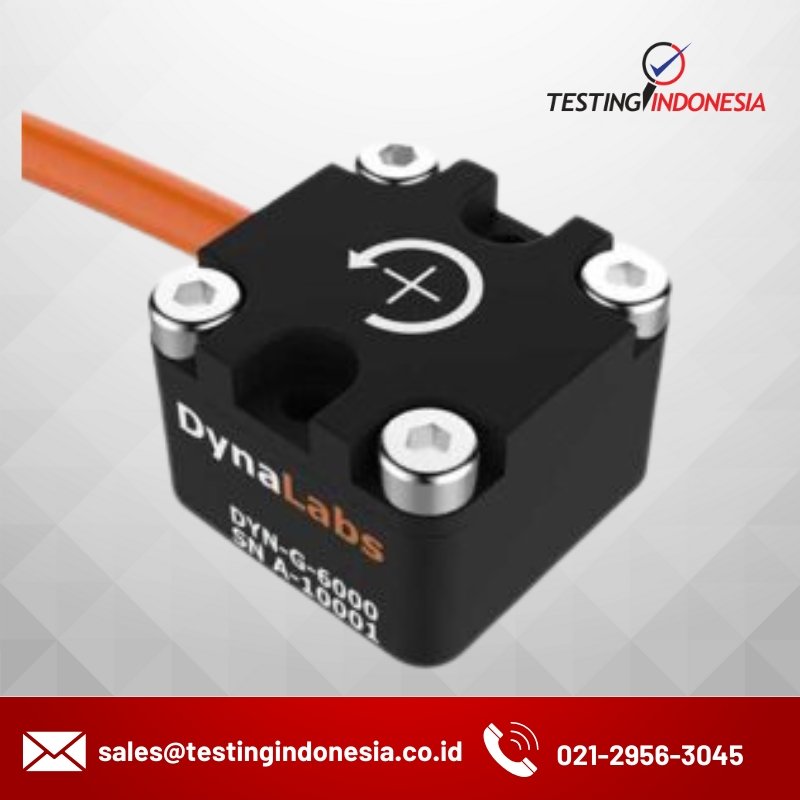

Triaxial Gyroscopes
|
|
DYN-G-6075 |
DYN-G-6150 |
DYN-G-6300 |
DYN-G-6900 |
| Full-scale Angular Velocity |
(°/s) |
± 75 |
± 150 |
± 300 |
± 900 |
| Frequency Range |
(Hz) |
0-150 |
0-150 |
0-150 |
0-150 |
| Non-liearity (full scale) |
(%) |
0.06 |
0.06 |
0.06 |
0.06 |
| Noise (in band) |
(°/s/√Hz) |
0.018 |
0.018 |
0.018 |
0.018 |
| Scale Factor (nominal) |
(V/°/s) |
0.012 |
0.006 |
0.003 |
0.001 |
| Scale Factor Var. Over Temp. |
(%) |
0.5 |
0.5 |
0.5 |
0.5 |
| Bias Variation With Temp. |
(°/s) |
± 1 |
± 2 |
± 3 |
± 4 |
| Shock Survivability |
(g) |
10,000 |
10,000 |
10,000 |
10,000 |
| Protection Level |
|
IP 68 |
| Operating Voltage |
(VDC) |
5V - 20V |
| Operating Temperature |
(°C) |
-40 to +100 |
