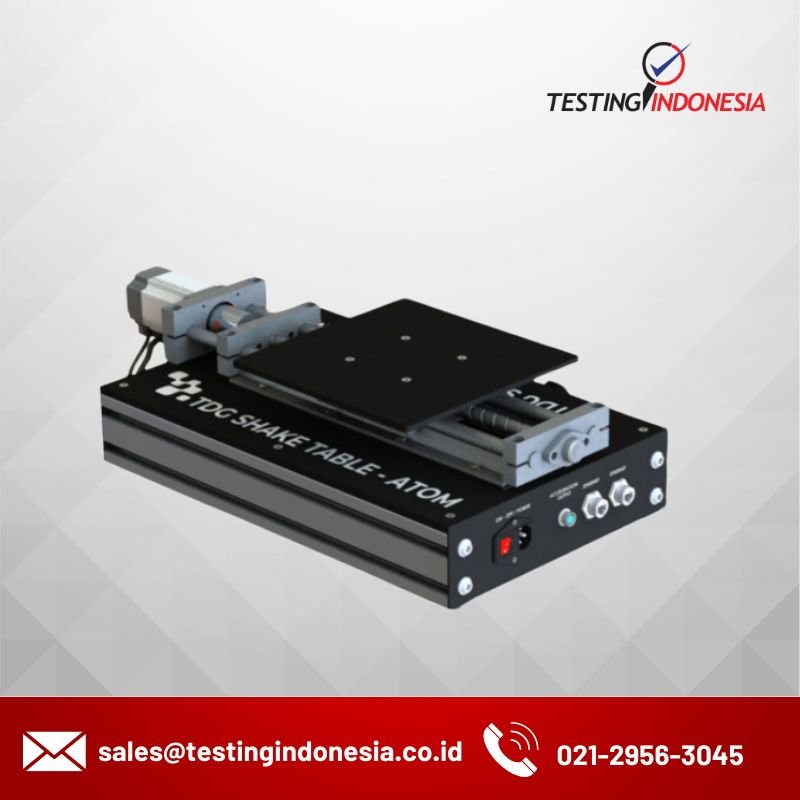

TDG-Shake Table Atom


TDG SHAKE TABLE ATOM is a mobile size shake table. It can simulate earthquakes using real records as well as operate waveforms such as sine, triangle, etc., and any user-defined acceleration or displacement profile. The system is fully controlled via computer software. It’s commonly used in Civil Engineering departments. It can also be used for structural mechanics, earthquake, soil, and geological engineering tests and calibrating accelerometers and seismic instruments.


  • Highest Control Resolution with Servo Motor
  • Closed-Loop PID Control
  • Up to 50 kgf payload (@ +1 g)
  • 250 X 250 mm Table Size
  • Up to 5g
  • +125 mm Stroke
  • Operational Frequency up to 30 Hz
  • High precision linear guideway with low friction.
  • Earthquake Simulation (Arbitrary User-Defined Waveforms)
  • Standard Waveforms - Sine, Triangle, Etc
  • Easy Setup, Plug & Play
  • 220 V AC Mains Voltage I
  • High Industrial Quality, Virtually Maintenance Free
