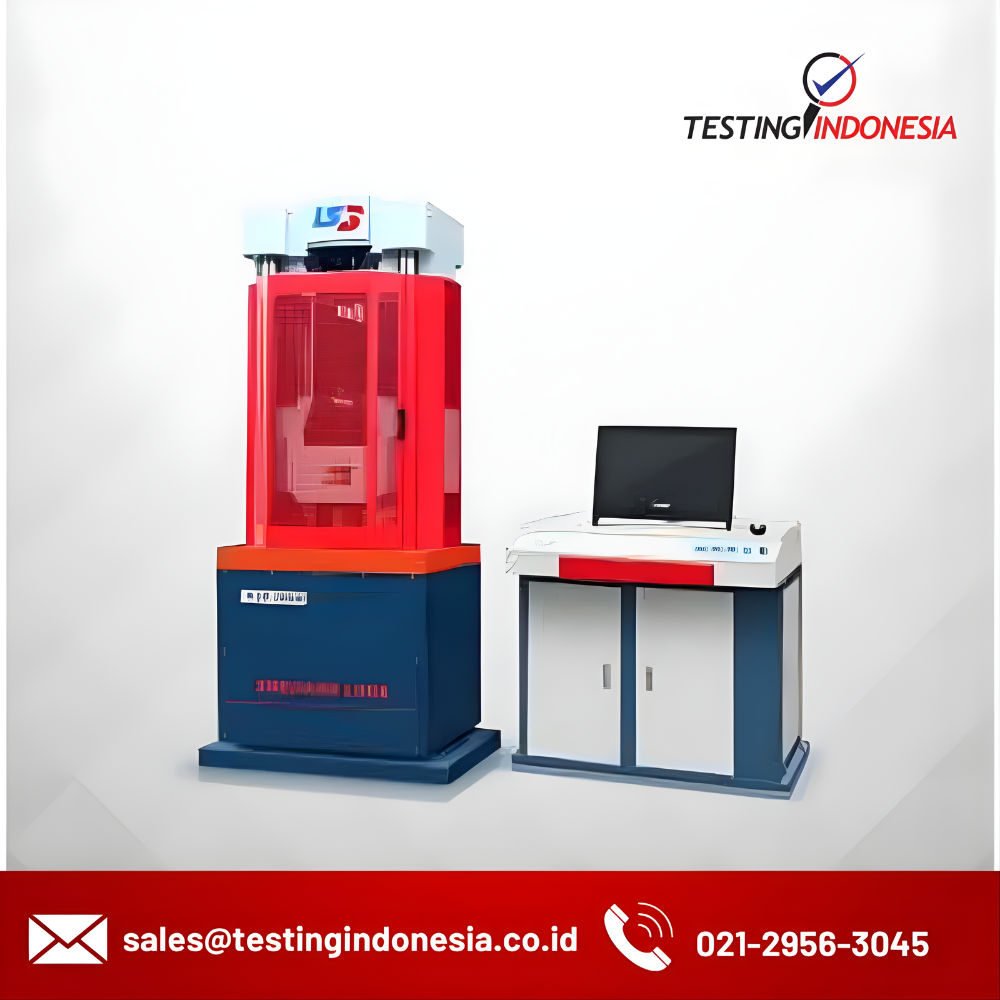

WAW-1000B Electro-Hydraulic Servo Universal Material Testing Machine

Category: Tags: , , , , , , , , , , , Brand:

Description

This product is suitable for testing the mechanical properties of metal, non-metal, and composite materials, including tensile, compression, bending, andshearcomponents. The product conforms to ASTM/ISO standards andotherrequirements for metal tensile tests. The product employs an under-mountedcylinder and leverages microcomputer control and electro-hydraulicservotechnology, providing high precision and simple operation. Other advantagesinclude convenience and a large data storage capacity.

Product Parameters

Model Specifications  WAW-1000B
Maximum test force(KN)  1000
Effective measurement range  10%～100%
Accuracy of load indication value  Level 1
Stretching space (mm)  ≤690
Compressed Space (mm)  ≤620
Flatspecimen clamping thickness(mm)   0-15
Round specimen clamping diameter(mm)  14-32,30-50
Working piston stroke(mm)  180
Upper pressure plate size(mm)  Φ220
Lower pressure plate size(mm)  Φ230
Distance between two pillars in tension and compression space(mm) 450
Maximum rise speed of table plate(mm/min)  ≤100
Maximum lifting speed of moving beam(mm/min)  240
Motor power(kW)  1.2
Power(kW)  1.75
Supply Voltage  AC380V
Host dimensions(mm)  945×635×2000
Dimensions of force measuring cabinet(mm)  700×520×1630
Overall weight(kg)  About 2800

Main Accessories

  1. One host;
  2. One control cabinet;
  3. One set of upper and lower pressure plates with Φ220mm/Φ230mm;
  4. Flat tooth clamp 0-15mm,4 pieces/1 pair;
  5. V-shaped clamp 14-32mm, 4 pieces/1 pair;
  6. V-shaped clamp 30-50mm, 4 pieces/1 pair;
  7. One set of rebar bending support(Contains a bending punch with a specificationof Φ6mm and a support seat, which can be purchased according totheactualneeds of customers)

Specification

Main technical parameters and specifications:
Model Specifications WAW-100B WAW-300B WAW-600B WAW-1000B WAW-2000B
Maximum test force(KN) 100 300 600 1000 2000
Effective measurement range 10%~100%
Accuracy of load indication value Level 1
Stretching space (mm) 480 480 690 690 790
Compressed Space (mm) 480 480 620 620 720
Flat specimen clamping thickness(mm) 0-15 0-15 0-15 0-40 0-40
Round specimen clamping diameter(mm) 10-20 10-20、20-32 13-26、26-40 14-32、30-50 20-40、40-60
Working piston stroke(mm) 120 120 170 170 180
Upper pressure plate size(mm) Φ176 Φ180 Φ220 Φ220 Φ220
Lower pressure plate size(mm) Φ176 Φ180 Φ230 Φ230 Φ230
Distance between two pillars in tension and compression space(mm) 420 420 510 510 610
Maximum rise speed of table plate(mm/min) 100
Maximum lifting speed of moving beam(mm/min) 240
Total motor power(Kw) 1.3 1.3 2.1 2.1 3.55
Supply Voltage AC380V±10%50Hz
Main external dimensions(mm) 720×550×1660 730×600×1840 820×600×2000 940×650×2080 1200×800×2940
Dimension of force measuring cabinet(mm) 1000×700×860
Overall weight(kg) 1600 1800 2400 2400 4000
