WAW Series B Electro-hydraulic Servo Universal Material Testing machine

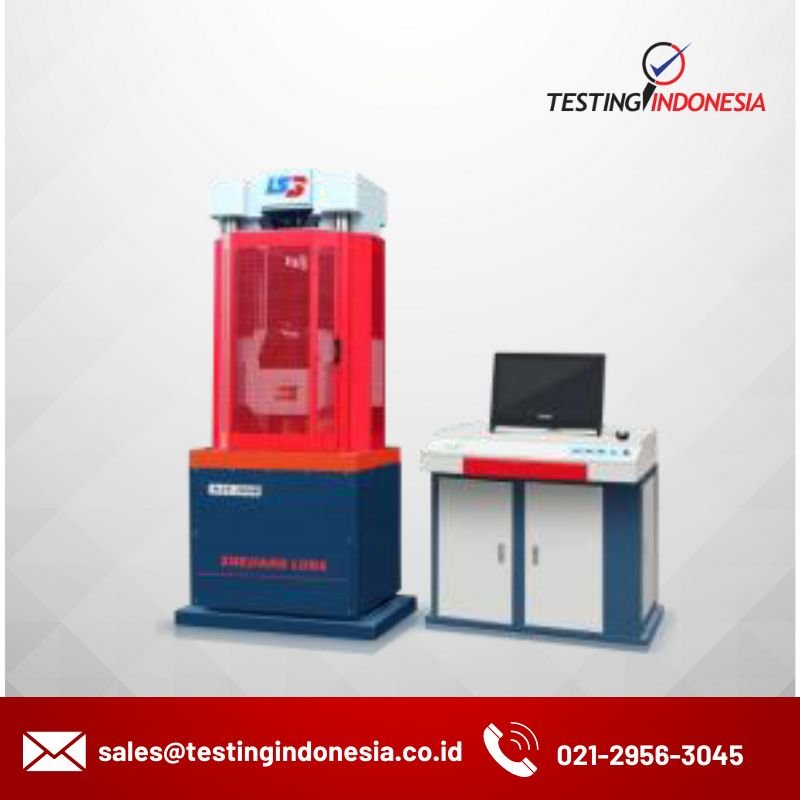

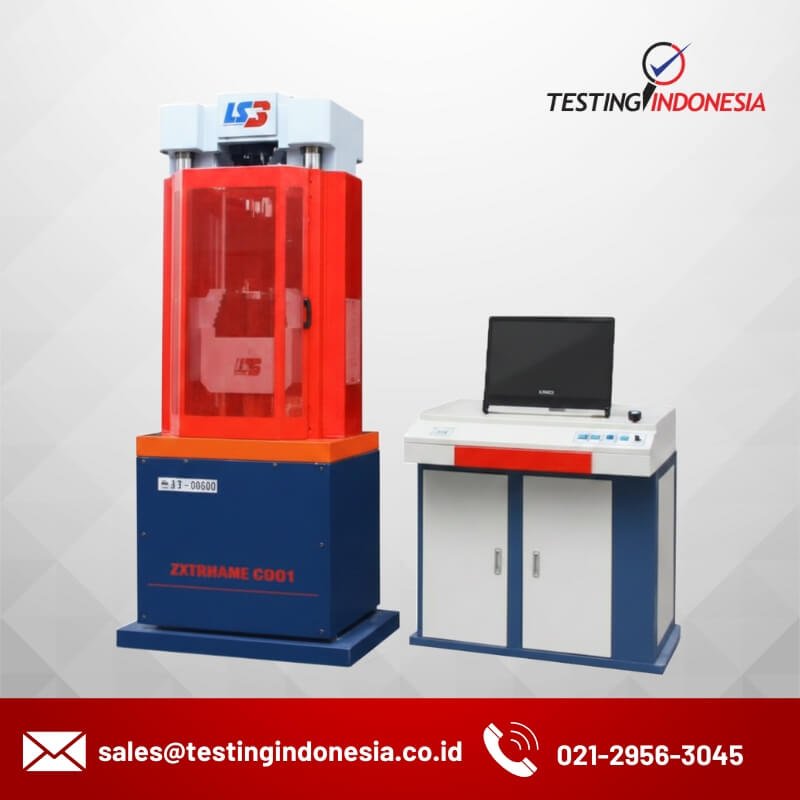

WAW Series B Electro-hydraulic Servo Universal Material Testing Machine

Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , ,

Description

This product is suitable for metal, non-metal and composite materials, components of tensile, compression, bending, shear and other mechanical properties testing. The product adopts the under-mounted cylinder, microcomputer control, electro-hydraulic servo, with high precision, simple operation, convenient, large data storage capacity and other advantages.

Features

  1. The tester adopts four columns and two wire rod frame, "well" structure, stronger steel, more stable.
  2. The machine adopts three closed shields, effective protection against test piece debris, high safety performance.
  3. From the previous semi-circular jaws to triangular hydraulic jaws, so that the test piece clamping more tightly, not easy to loosen.
  4. Standard with upper / lower pressure plate and bending support, can do compression, bending test, more functional, more comprehensive.
  5. Oil cylinder is placed under, no oil leakage, stable operation.
  6. Adopt high precision photoelectric encoder, higher displacement accuracy and more stable.
  7. With Windows system control software, automatic storage of data and automatic calculation of test results.
  8. Servo measurement and control system, can achieve constant speed, constant loading, constant force value, more stable control.
  9. The machine adopts high-precision digital servo valve to control loading, with higher precision and more stable data.
  10. Oil source control cabinet design humanized, more ergonomic, more convenient operation.

Spesification

Model Specifications WAW-100B WAW-300B WAW-600B WAW-1000B WAW-2000B
Maximum test force(KN) 100 300 600 1000 2000
Effective measurement range 10%～100%
Accuracy of load indication value Level 1
Stretching space (mm) 480 480 690 690 790
Compressed Space (mm) 480 480 620 620 720
Flat specimen clamping thickness(mm) 0-15 0-15 0-15 0-40 0-40
Round specimen clamping diameter(mm) 10-20 10-20 、20-32 13-26 、26-40 14-32 、30-50 20-40、40-60
Working piston stroke(mm) 120 120 170 170 180
Upper pressure plate size(mm) Φ176 Φ180 Φ220 Φ220 Φ220
Lower pressure plate size(mm) Φ176 Φ180 Φ230 Φ230 Φ230
Distance between two pillars in tension and compression space(mm) 420 420 510 510 610
Maximum rise speed of table plate(mm/min) 100
Maximum lifting speed of moving beam(mm/min) 240
Total motor power(Kw) 13 13 21 21 355
Supply Voltage AC380V±10%,50Hz
Main external dimensions(mm) 720×550×1660 730×600×1840 820×600×2000 940×650×2080 1200×800×2940
Dimension of force measuring cabinet(mm) 1000×700×860
Overall weight(kg) 1600 1800 2400 2400 4000
