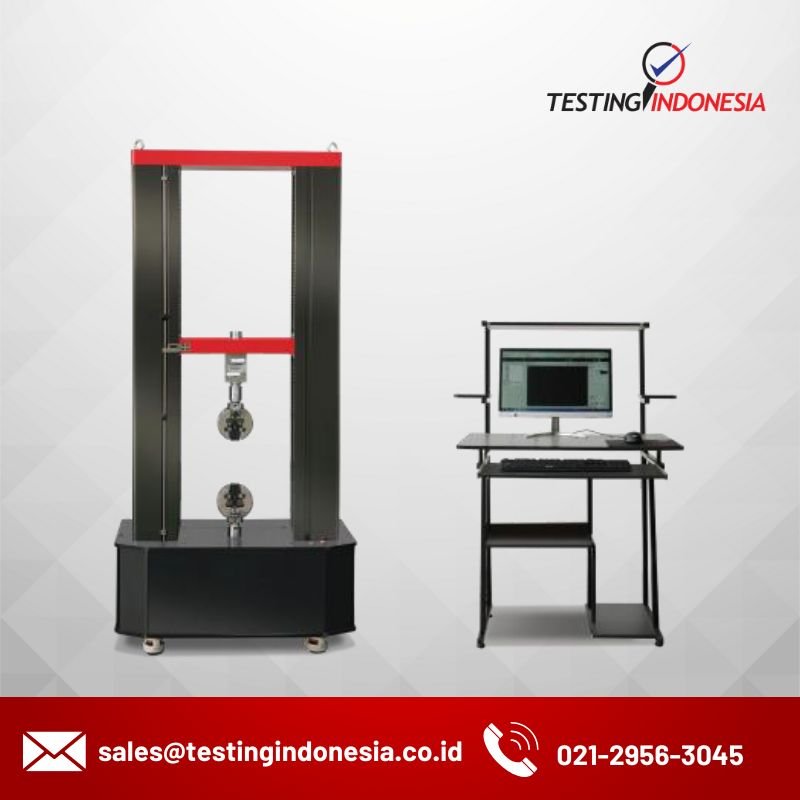

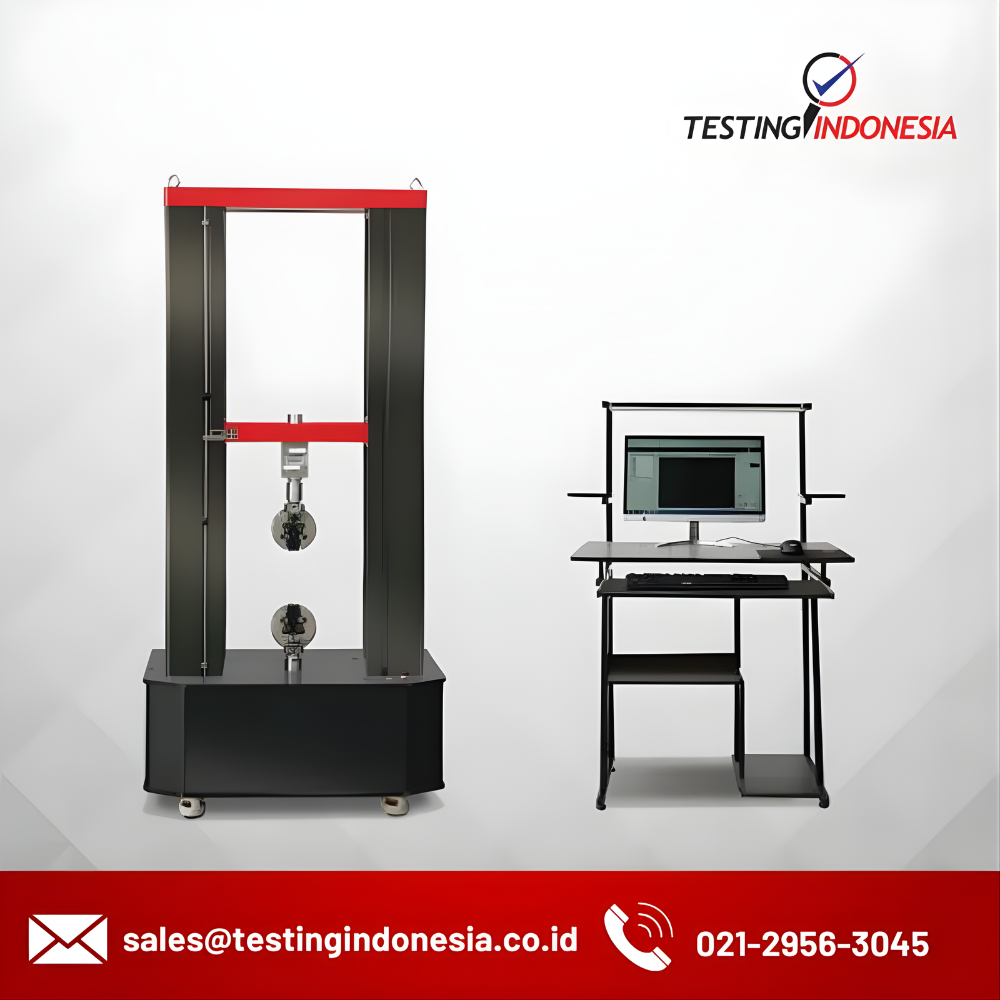

This product is suitable for testing and analyzing the mechanical properties of various metals, non-metals and composite materials, and can obtain test data such as maximum test force value, fracture force value, yield strength, upper and lower yield strength, tensile strength, compressive strength, elongation at break, tensile modulus of elasticity and bending modulus of elasticity of test materials.
| Maximum test force | 100KN |
| Accuracy grade | 1 grade (can be customized to 0.5 grade on request) |
| Test force measurement range | 1% to 100% FS throughout the whole process without sub-grade |
| Relative error of the test force value | ±1% or less |
| Test force resolution | 1/±300000 of the maximum test force throughout the resolution remains unchanged |
| Deformation measurement range | 0.2%～100%FS |
| Relative error of deformation value | within ±0.5% of the indicated value |
| Deformation resolution | 1/±300000 of the maximum deformation |
| Relative error of displacement value | within ±0.5% of the displayed value |
| Displacement resolution | 0.025μm |
| Force control rate adjustment range | 0.01~5%FS/S |
| Relative error of force-controlled rate | within ±1% of the set value |
| Deformation rate adjustment range | 0.02~5%FS/S |
| Relative error of deformation control rate | within ±1% of the set value |
| Cross-beam speed adjustment range | 0.01～500mm/min |
| Control range of constant force, constant deformation and constant displacement | 0.5%～100%FS |
| Control accuracy of constant force, constant deformation and constant displacement | within ±1% of the set value when the set value is <10%FS; within ±0.1% of the set value when the set value is ≥10%FS |
| Effective tensile space (without fixture) | 800mm |
| Effective test width | 400mm |
| Host size | 1000 × 800 × 2200 (mm) |
| Power supply | 220V±10%, 2000W |
| Host weight | about 800kg |
