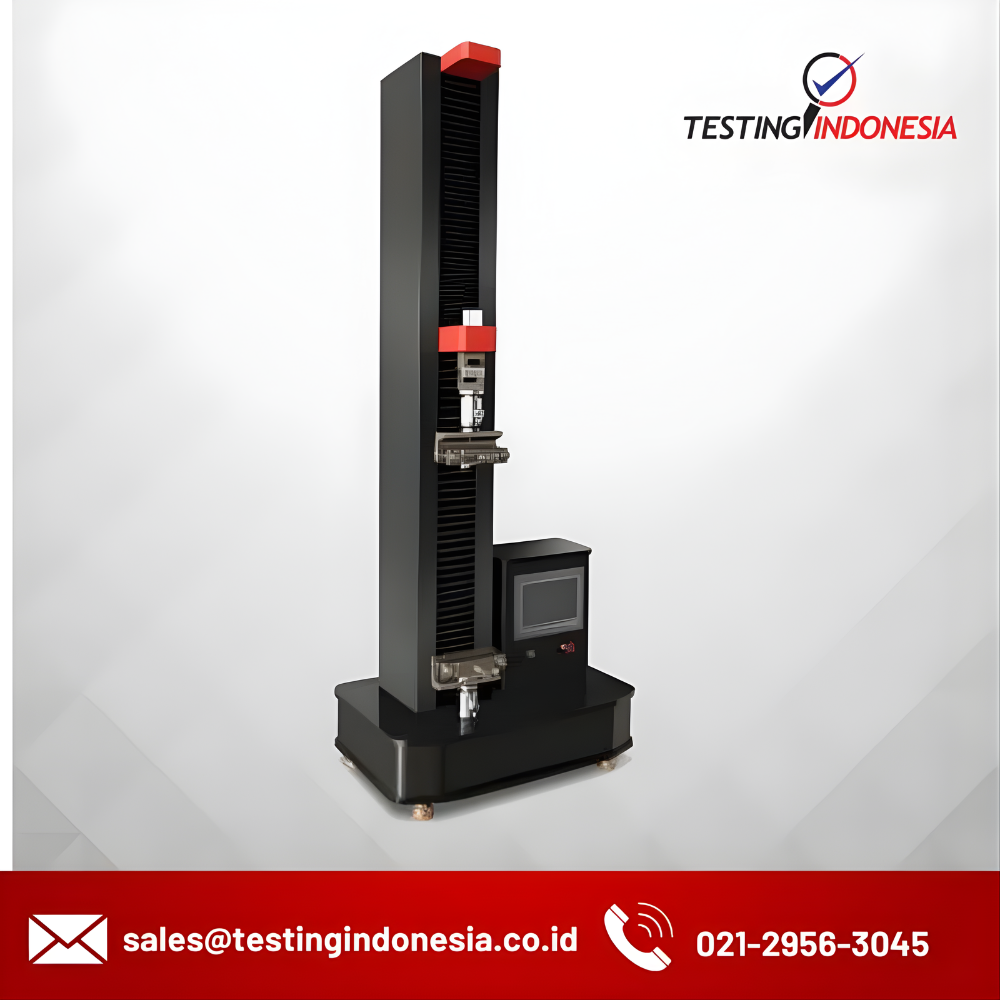

WDW-S10 Type Electronic Universal Material Testing Machine

WDW-S10 Type Electronic Universal Material Testing Machine

Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Description

This product is suitable for testing and analyzing the mechanical properties of various metals, non-metals and composite materials, and can obtain test data such as maximum test force value, fracture force value, yield strength, upper and lower yield strength, tensile strength, compressive strength, elongation at break, tensile modulus of elasticity and bending modulus of elasticity of test materials.

Features

  1. Single-arm design, cementitious sand special models.
  2. Safety position and experimental position height arbitrary lock.
  3. Automatic protection when exceeding the maximum load, software limit and electronic limit double protection.
  4. One button automatic operation, full touch screen control, can realize positioning and automatic return.

Spesification

  1. Model: WDW-S10
  2. Control mode: screen control
  3. Maximum load (KN): 10
  4. Precision grade: 1 grade
  5. Relative error of the test force value: ±1% or less
  6. Test force resolution: 1/±300000 of the test force
  7. Deformation measurement range:0.5%-100%FS
  8. Cross-beam speed adjustment range (mm/min)：0.01～500
  9. Effective tensile space (mm)：800
  10. Effective test width (mm)：100
  11. Power supply: 220V±10%,0.4kW
